KN Planning Remote Control JOGZR Super JOGZR Rear Suspension Rear Suspension Rear Shock Rear Shock 230mm

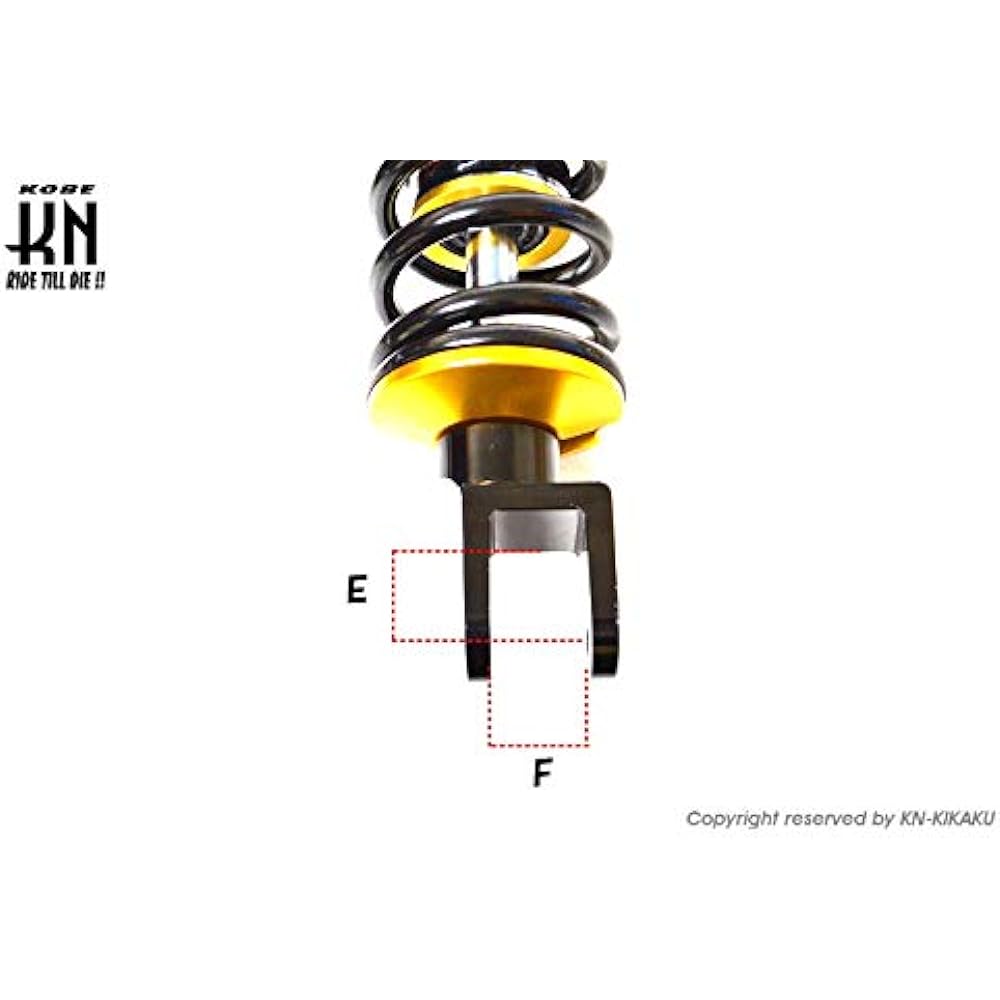

[Product Name] ■Super Shock [Low Price Version/No Damping Adjustment] Black 230mm [Product Contents] ■Low Price Version of Super Shock. ■This model eliminates damping adjustment and reduces costs. ■This is a general-purpose shock. [Main vehicle models] ■JOG series ■Grand Axis, etc. [Size, specifications] ■Total length 230mm [between the center of the upper bolt and the center of the lower bolt] ■With adjustment wrench★★ ■Stepless initial adjustment★★ ■Set screws to prevent loosening Comes with bolts ★★ ■The offset amount for the upper and lower body mounting parts, A to F, is 0mm. ★ ■Only the spring part is offset outward: G = 8mm. ★ It is possible to dodge it even if thick tires are installed. ★ ■Rod diameter: 13mm★ ■The upper bolt has a 10mm hole. ★ ■Top installation width: A=19.9mm★ ■Inner diameter where the upper bolt passes: B=10.1mm★ ■Length: C=38mm★ ■From the lower bolt center to the top of the U-shape: E=25mm★ ■Lower U-shape Maximum internal width: F=20.1mm★ ■Bottom bolt is for 8mm. ★ *Caution: Interference, etc. must be considered and devised. ★ *Please consider the overall length before purchasing. ★


Manufacturer: ‎KN Kikaku
Brand: ‎KN-KIKAKU
Manufacturer reference: ‎KN-SSRB-230BK
Discontinued by manufacturer: ‎No
Position: ‎Back
