KN Planning Live Dio Live DIO AF35 AF34 ZX Lowdown Rear Shock Rear Shock Rear Suspension Rear Suspension Shock Shock Absorber

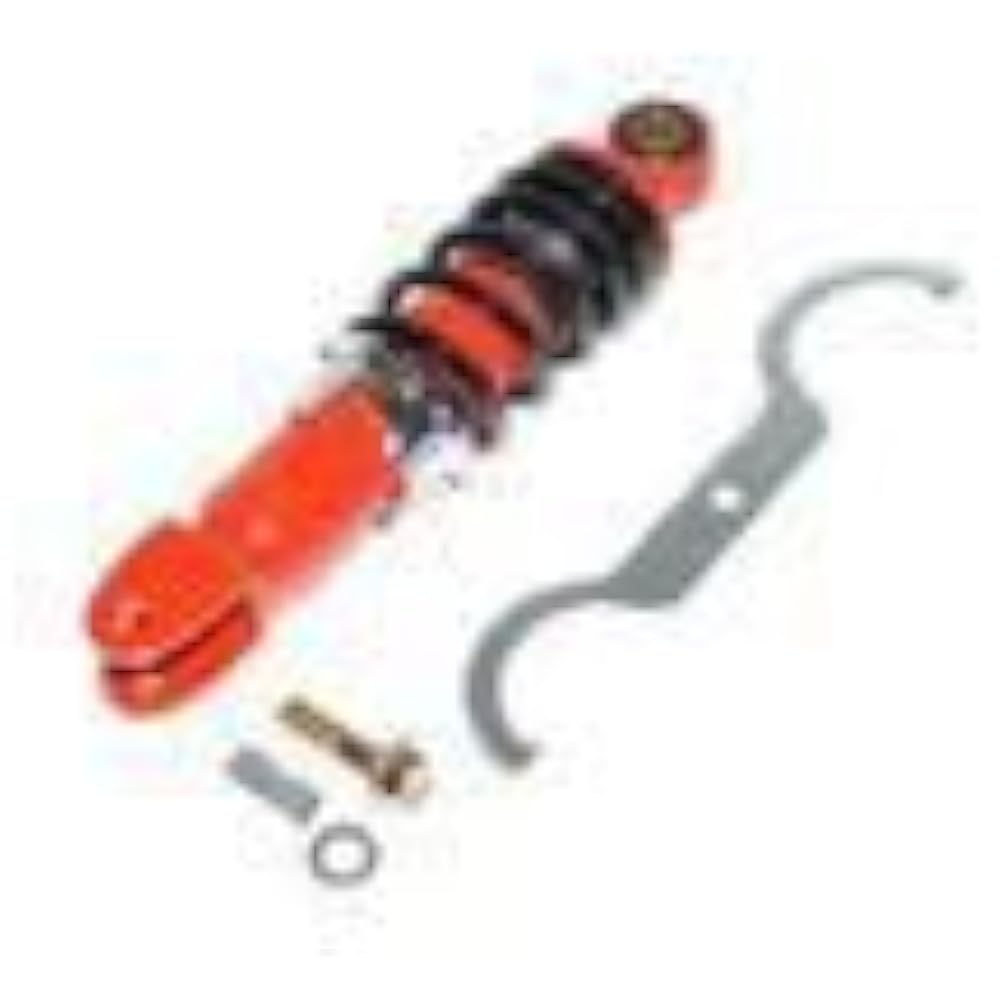

[Compatible models] ■Super Dio type ■When installed on Live Dio type, it will be lowered by 40mm. ■It will be lowered when installed on Address V125. ■Can also be used for general purposes. ■Honda scooters ■Yamaha scooters ■SUZUKI scooters *Depending on the car model, length may be difficult. Also, there may be cases where it is physically impossible to install. Please consider the size carefully before ordering. [Contents] ■5-step adjustment type ■Depending on the car model, the installation width for the lower side (crankcase side) is narrow, so please adjust with the included washer. [Accessories] ■Body shock ■Adjusting washer ■Bolt 8mm ■Conversion collar (such as when the existing bolt hole is 10mm) *Conversion included for Suzuki vehicles [Size] ■Bolt spacing 270mm ■Overall width: 50mm [Maximum spring diameter] ■Bushing Thickness of the side mounting part: 20mm ■Inner diameter of the collar inside the bush: 10mm ■Space between the U-shaped part on the opposite side of the bush: 20.5mm [Inner dimension] ■Inner diameter of the mounting bolt hole on the U-shaped part: M8 (Same as the mirror's positive screw) 7.5mm [Color] ■Body.Red ■Spring.Black


Manufacturer: ‎KN Kikaku
Brand: ‎KN-KIKAKU
>Package size: ‎34.9 x 6.8 x 6.6 cm; 1.03 kg
Manufacturer reference: ‎SU-270-R
Position: ‎Back
Item weight: ‎1.03 Kilograms
