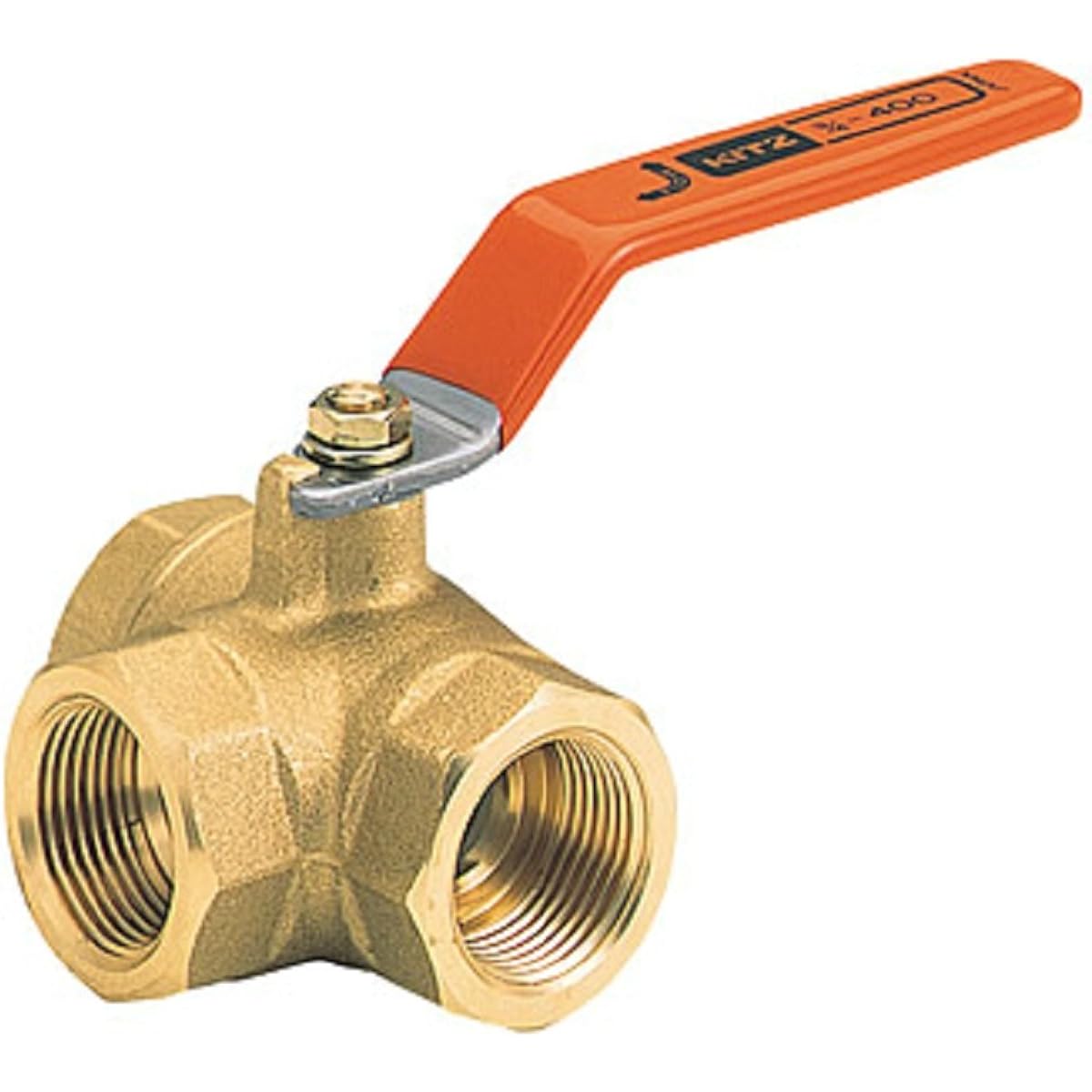

Kitz 3-way series valve 11/4 TN32A

Manual lever handle: SUS430+Plastic cover Body: C3771BE Cap: C3771BE Stem: C3531 Ball: C3771BE+Cr plating Ball seat: PTFE O-ring: FKM Pipe connection: Screwed JISB0203 (Note) (Note): Effective thread length and reference diameter positions are our standard dimensions Maximum allowable pressure ・Water/oil/gas at room temperature: 2.75 MPa ・150 Water/oil/gas below ℃: 0.69MPa ・Caution: Do not use with flammable or toxic gases.
- "Product dimensions" are "handle length" x "height" x "distance". Increase the number of displayed items

・For flow path switching ・Horizontal three-sided two-sided sheet L port type


Brand: KITZ Microfilter
Product model number: KITZ-TN 1.1/4B [32A]
Product size : ‎11 x 8.9 x 6 cm; 1.14 kg
Material: ‎Brass
Accessories: ‎None
Product weight: ‎1.14 Kilograms
