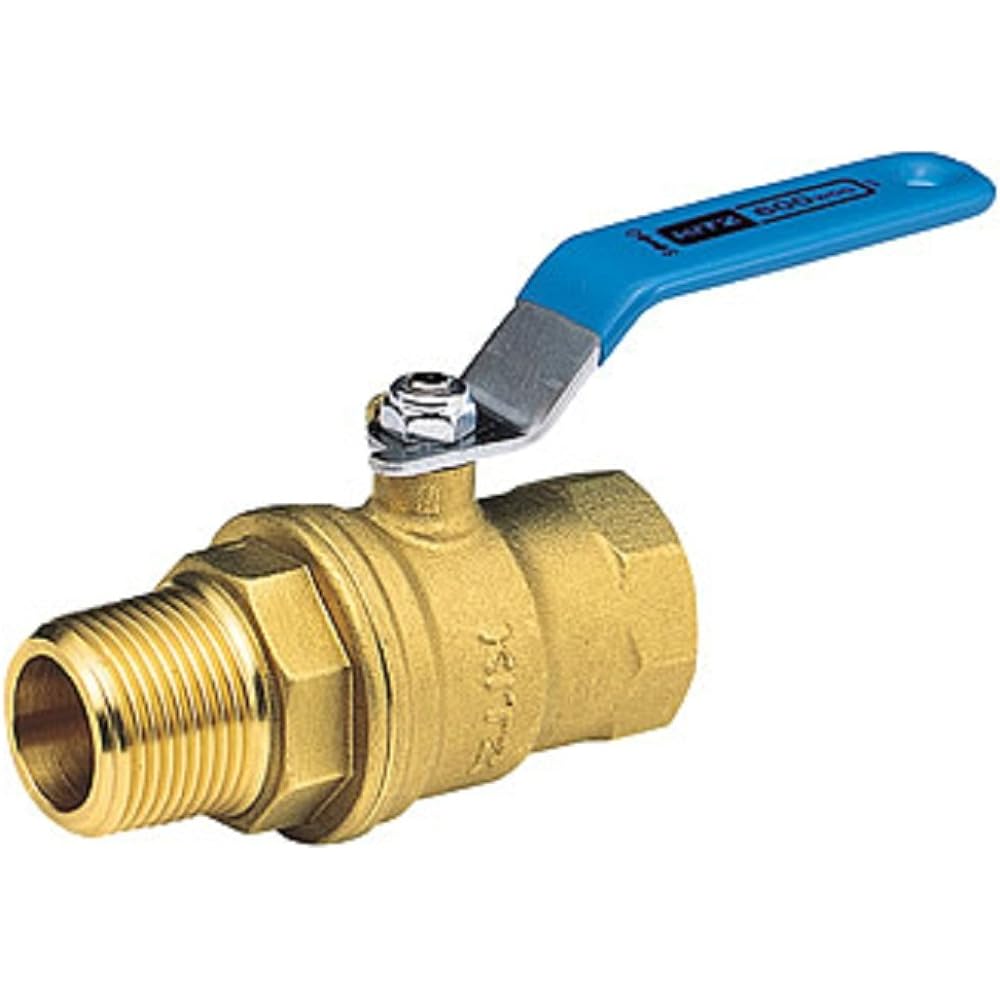

KITZ Brass 600 type ball valve “Eco Ball Full Bore” KITZ-ZT 1B [25A]

Manual butterfly handle: SUS430+Plastic cover Body: C3771BE Cap: C3771BE Stem: C3604BD+Ni plating Ball: C3771BE+Ni-Cr plating Ball seat: PTFE O-ring: FKM Pipe connection: Screwed JISB0203 Maximum allowable pressure
・Water/oil/gas at room temperature: 4.12MPa
・Water/oil/gas below 150℃: 0.98MPa ・Caution: Use for flammable and toxic gases please do not.
- "Product dimensions" are "handle length" x "height" x "distance". Increase the number of displayed items

・Product that passes lead leaching performance standards (in-house confirmation)


Brand: KITZ Microfilter
Product model number: KITZ-ZT 1B [25A]
Product size: 10 x 7.9 x 5.4 cm; 520 g
Color: ‎Manual butterfly handle: SUS430 + plastic cover
Name on nameplate: ‎Eco ball full bore
Material: ‎Brass
Product weight: ‎520 g
