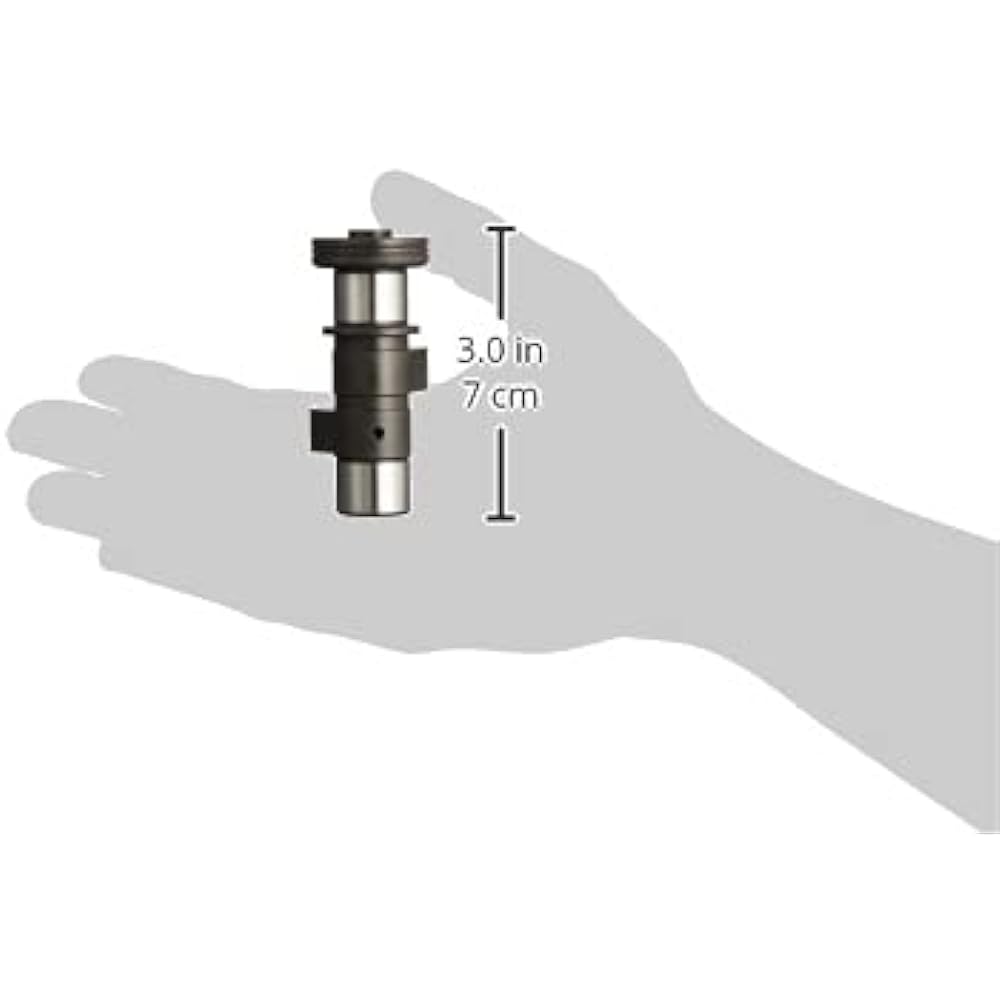

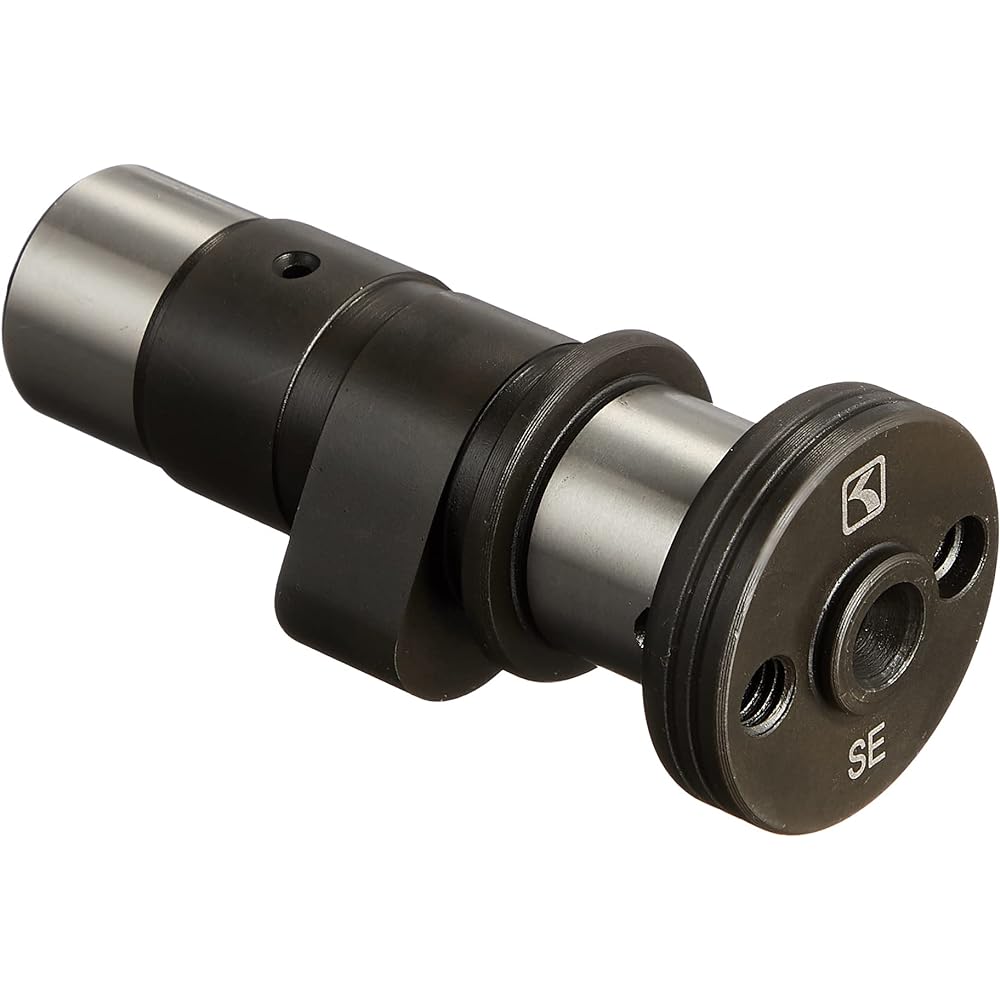

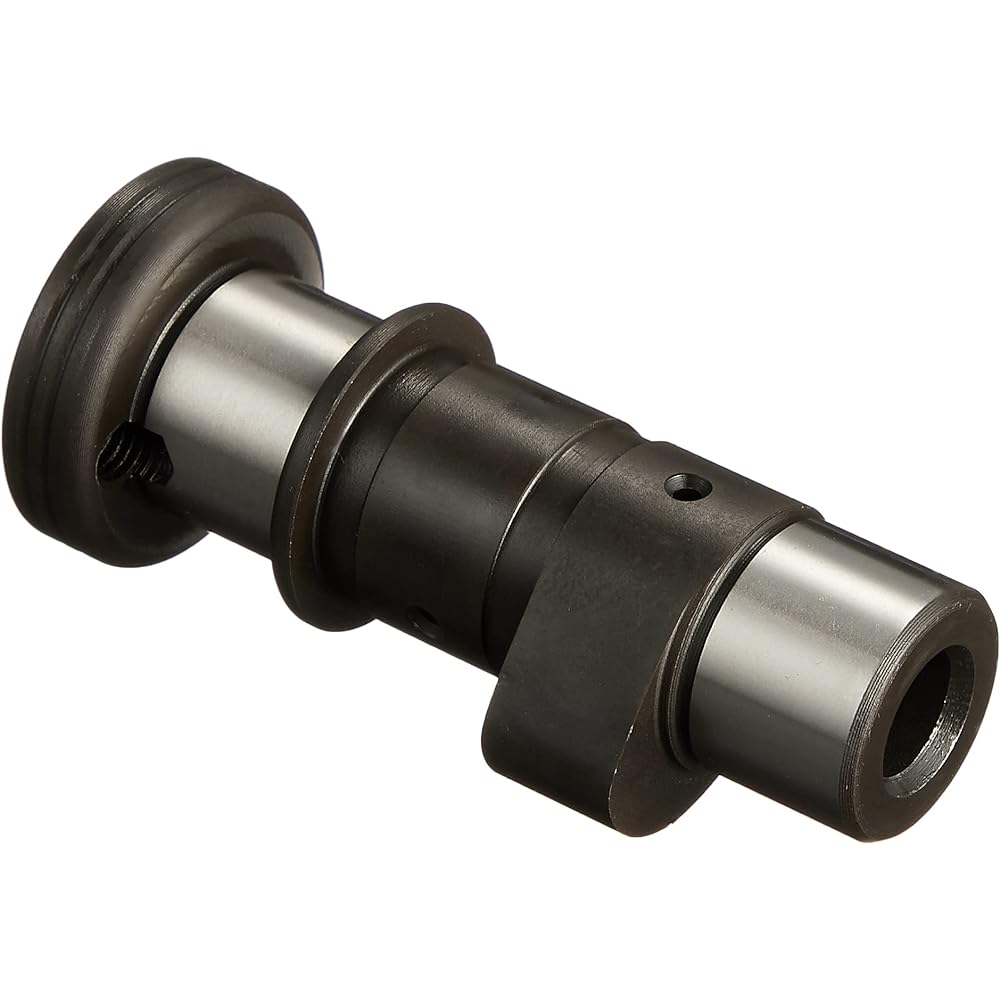

KITACO ULTRA-SE camshaft for KITACO APE cylinder head 300-1413700

Compatible models: Ape 50/100, XR50/100 Motard, NSF100, etc. Compatible with Kitaco's ULTRA-SE cylinder head Cannot be used with Kitaco's SPL head, normal head Characteristics that rotate quickly to high rotation range while retaining mid-speed torque Realization surface treatment: soft nitriding treatment

●Valve timing angle IN valve: OPEN 20°BTDC/CLOSE 50°ABDC EX valve: OPEN 50°BBDC/CLOSE 20°ATDC ●※Reference value at 1mm lift ●※For Kitaco ULTRA-SE cylinder head only (SPL head , cannot be used with normal heads.) ●Special camshaft developed at the same time as Kitaco's ULTRA-SE bore-up KIT125cc specification. Achieves the characteristic of quickly turning to high rotation range while maintaining medium speed torque. It has output characteristics suitable for use in racing. The surface is nitrocarburized to reduce sliding resistance and metal fatigue, and improve initial break-in. Caution (Disclaimer) > Please read 4990852033829


Manufacturer: KITACO
Brand: KITACO
Package size: 14.9 x 8.1 x 3.1 cm ; 231.33 g
Product model number: ‎300-1413700
Product weight: ‎231 g
