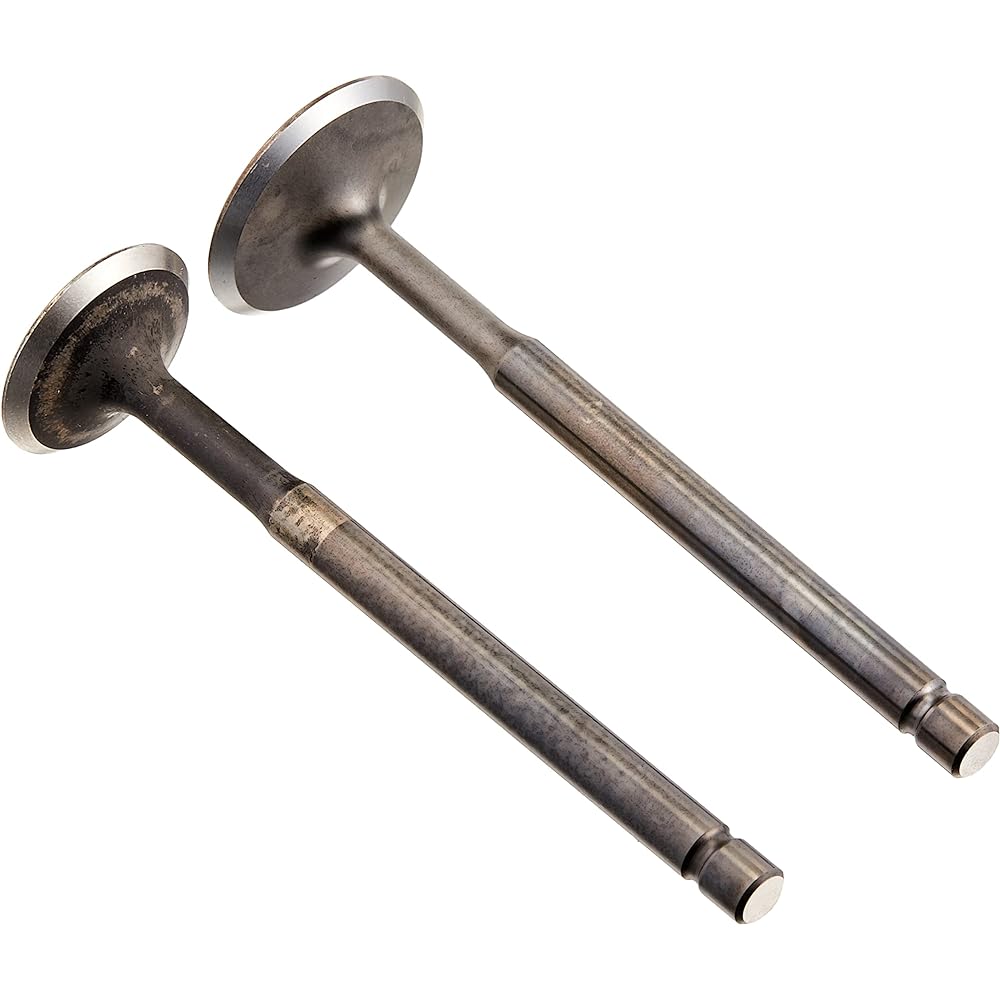

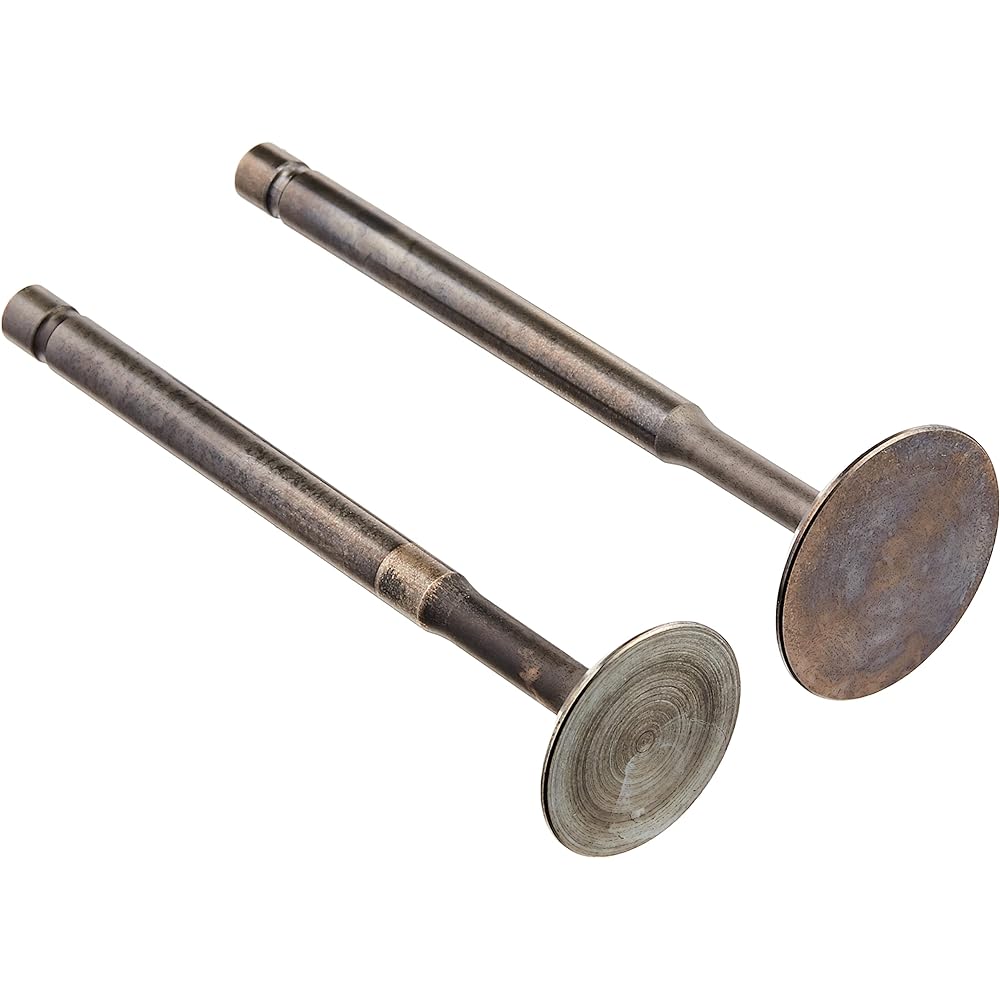

KITACO SPL waist valve set Ape 100/XRmotard/XE75/NSF100 etc. 302-1122300

Compatible models [Normal cylinder head] XE75: All models | XL80: All models | XLR80: All models | XR80: All models | Ape 100: All HC07 models | Ape 100-Type D: All HC13 models | | XR100R/CRF100F: All HE03 models | NSF100 Kitaco SPL cylinder head (old and new) Valve clearance: IN 0.05/EX 0.05 | IN/EX 1 set Valve diameter: IN φ24/EX φ20.5 SPL head repair parts

Waist spiral polishing is applied to the valve neck (valve neck diameter: intake side φ4.0, exhaust side φ4.5, stem diameter φ5.5) to reduce intake and exhaust resistance. In addition, soft nitriding surface treatment is applied to strengthen the surface and improve initial fit. We aimed to increase torque by reducing intake resistance, and by making the combustion chamber side flat, we succeeded in achieving high compression. Also, due to the significant weight reduction, vibration mass is reduced. Powerfully revs up to high rpm. Caution (Disclaimer) > Please read 4990852012183


Manufacturer: KITACO
Brand: KITACO
Package size: 15 x 8.1 x 2.8 cm ; 40.82 g
Product model number: ‎302-1122300
Product weight: ‎40.8 g
