KITACO Power Pack Zoomer X (all JF52 models) 230-1155950

Compatible models: Zoomer X: All JF52 models *Valve surging may occur above 9800 rpm. Do not drive while valve surging is occurring. *Standard weight rollers cannot be used. When setting weights, please use Suzuki B type φ17.0 x 12.0. This is a full kit that includes a power drive kit and I-MAP.By powering up the engine with FI control using I-MAP, it is possible to shift gears and engage the clutch in a high rotation range, improving acceleration performance and top speed. *Please be sure to install a muffler that has better clearance than the standard one.

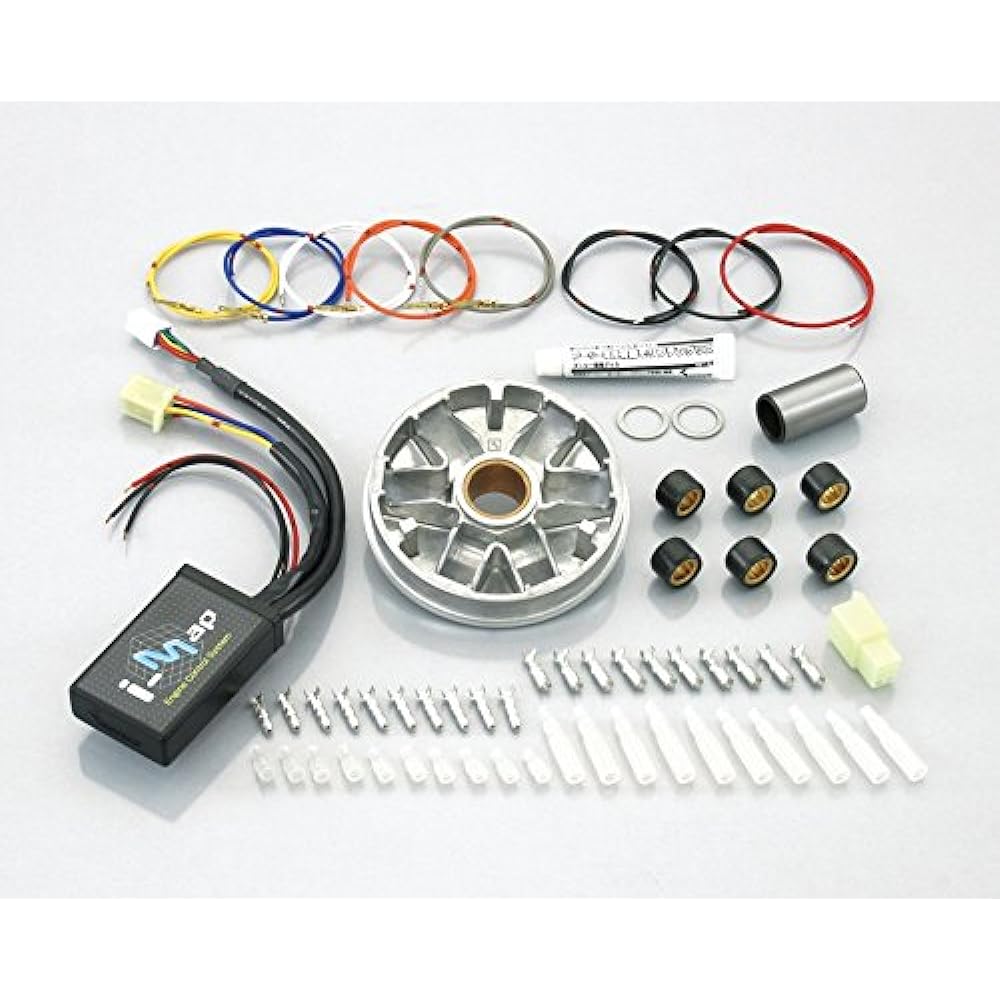

A full kit that includes a power drive kit (some pulley kits) and I-MAP.By increasing the engine power with FI control by I-MAP, it is possible to shift gears and engage the clutch in a high rotation range. , acceleration performance and top speed will be improved. We also offer a power drive kit that includes a complete set of drive system parts. It also shows some performance here. ■Packing list 763-1155000 I-MAP (×1)489-1155000 Power drive kit type X (×1)488-1425001 Movable drive face type Shim φ15×φ22×0.3mm (×1)0900-463-90016 Spacer shim φ15×φ22×0.5mm (×1)462-2106090 Super roller set Suzuki B type (9g) (×1 set)0900-969-00110 Organic molybdenum grease (5g) (x1) Precautions for use *Be sure to install a muffler that has better drainage than the standard one. *Valve surging may occur above 9800rpm. Do not drive while valve surging is occurring. *Standard weight rollers cannot be used. When setting weights, please use Suzuki B type φ17.0 x 12.0.


Manufacturer: KITACO
Brand: KITACO
Model name: 230-1155950
Product size: 24.31 x 16.1 x 6.6 cm; 577.99 g
Product model number: ‎230-1155950
Product dimensions: Depth x Width x Height: ‎24.3 x 16.1 x 6.6 cm
Product weight: ‎578 g
