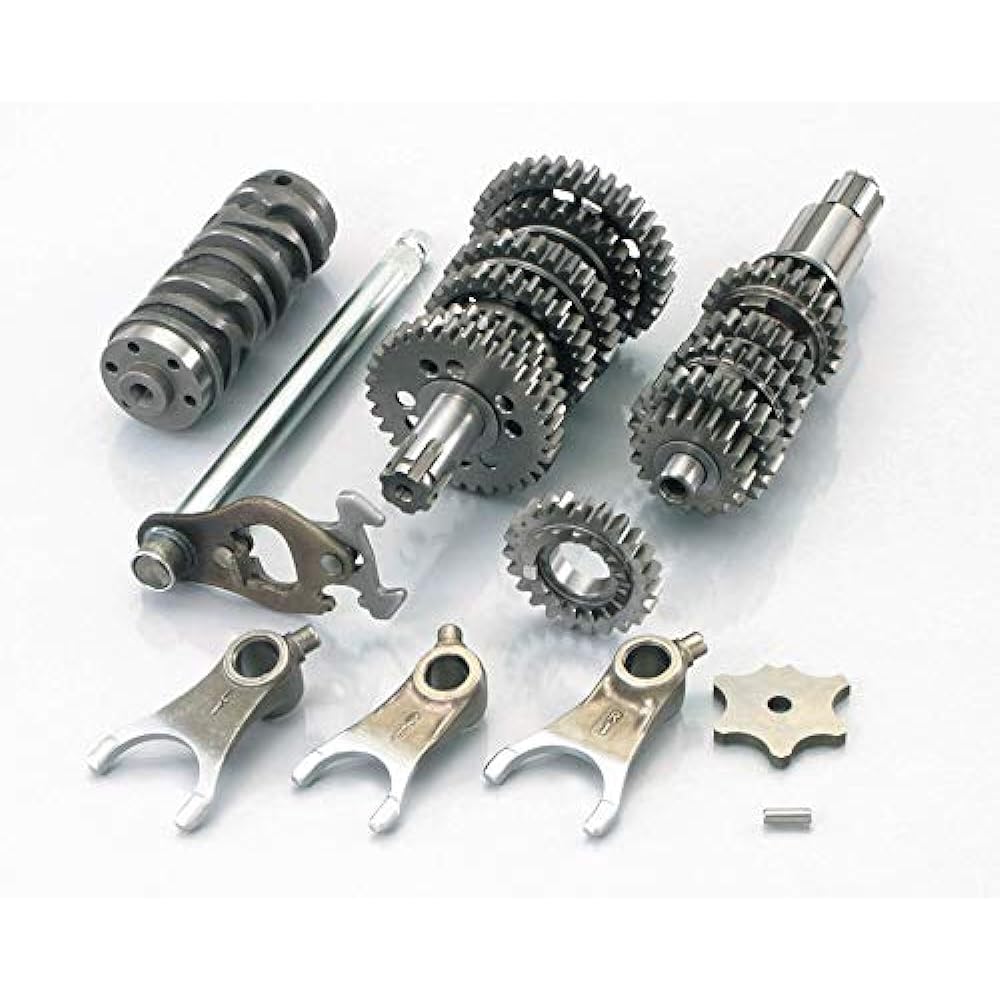

KITACO Mini Motocross Mission ASSY 5 Speed → 6 Speed Ape 50/100 XR50/100 Motard NSF100 305-1418200

Compatible models: Ape 50 FNO, AC16-1000001~1599999 | Ape 50 (FI car) FNO, AC16-1600001~ | Ape 50-Type D (FI car) AC18 all models | Ape 100 HC07 all models | Ape 100-Type D HC13 All models | XR50 Motard AD14 All models | Loss reduction

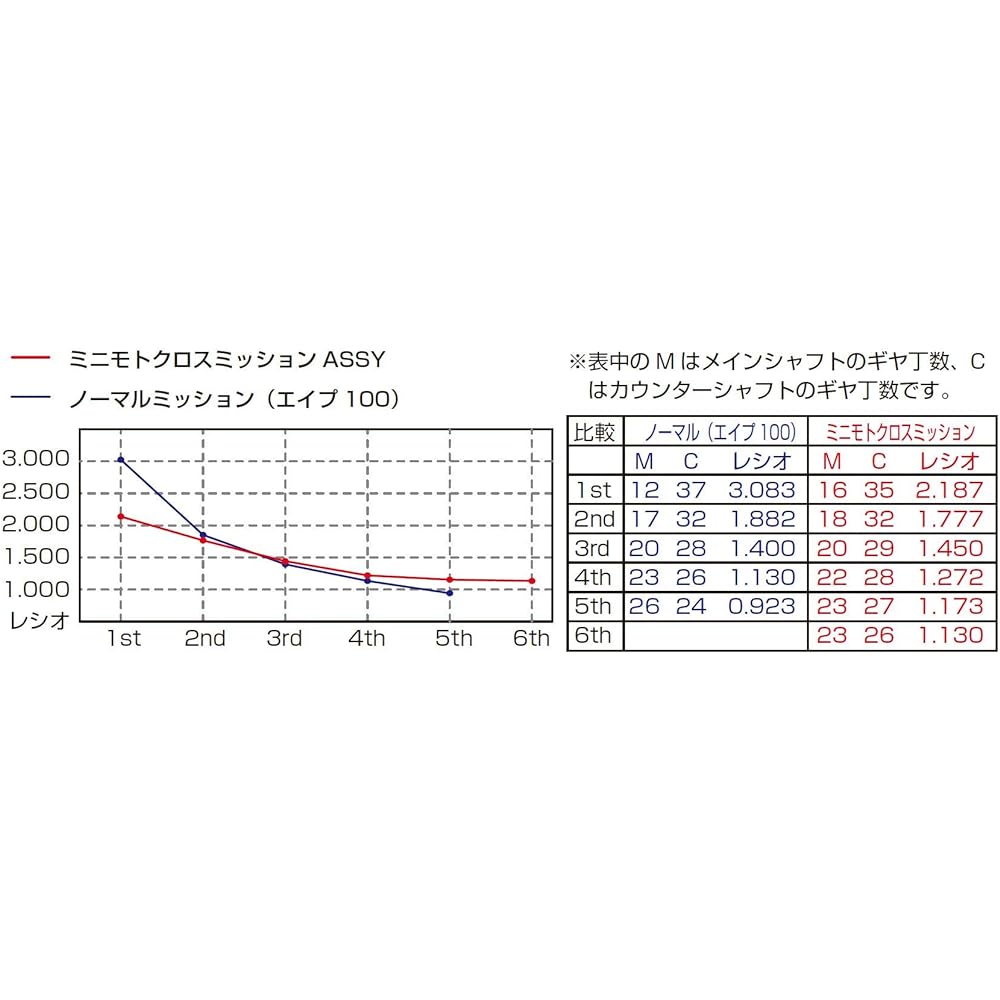

Gear ratio 1st:2.187 16/35 2nd:1.777 18/32 3rd:1.450 20/29 4th:1.272 22/28 5th:1.173 23/27 6th:1.130 23/26 Among the gear ratios above, the numbers marked ○/○ are mainly on the left side The number of gears on the shaft is shown, and the number on the right side shows the number of gears on the countershaft. The mission ASSY has been subdivided from the standard 5-speed to 6-speed to achieve a smooth connection. Effective for sports driving while maintaining the power band. This is a transmission specifically designed for use in races, with closer ratios for each gear, improved strength, and reduced friction loss due to lighter weight.


Manufacturer: KITACO
Brand: KITACO
Model name: 305-1418200
Package size: 17.8 x 16.8 x 12.2 cm; 2.26 kg
Product model number: ‎305-1418200
Product weight: ‎2.26 Kilograms
