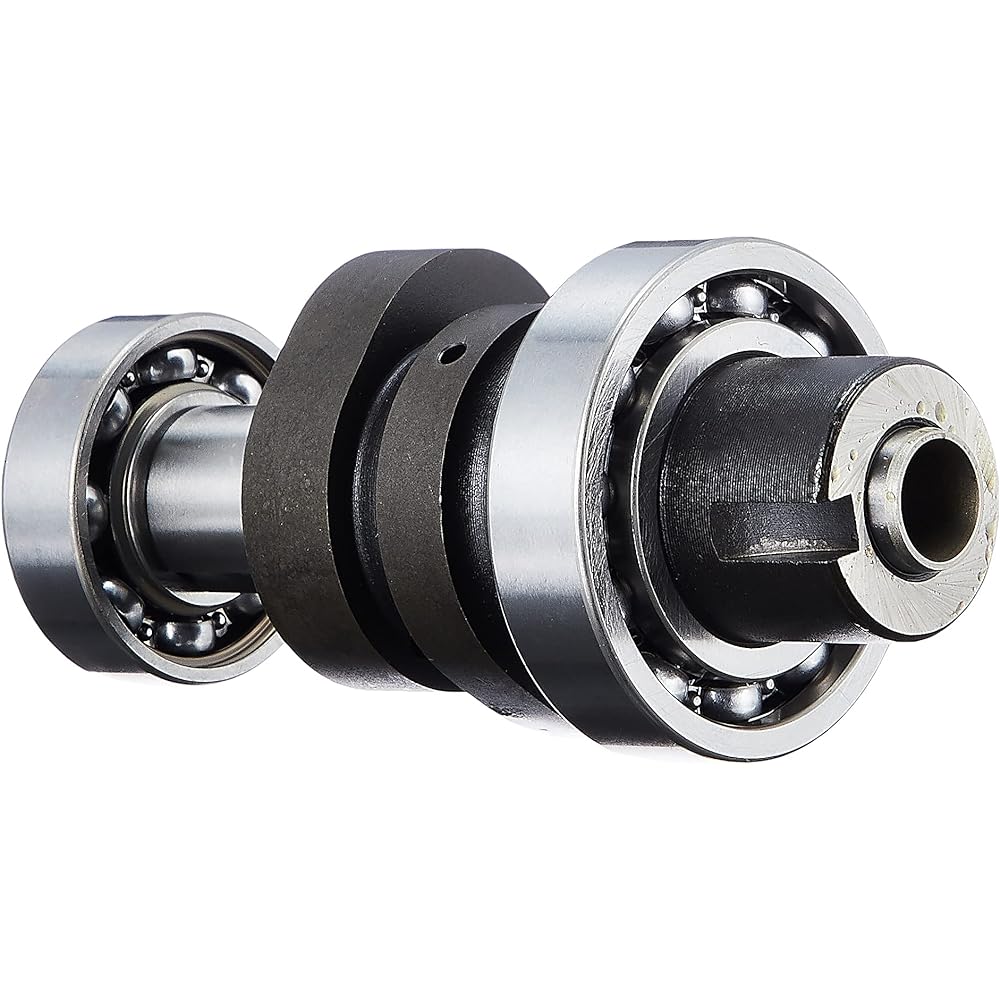

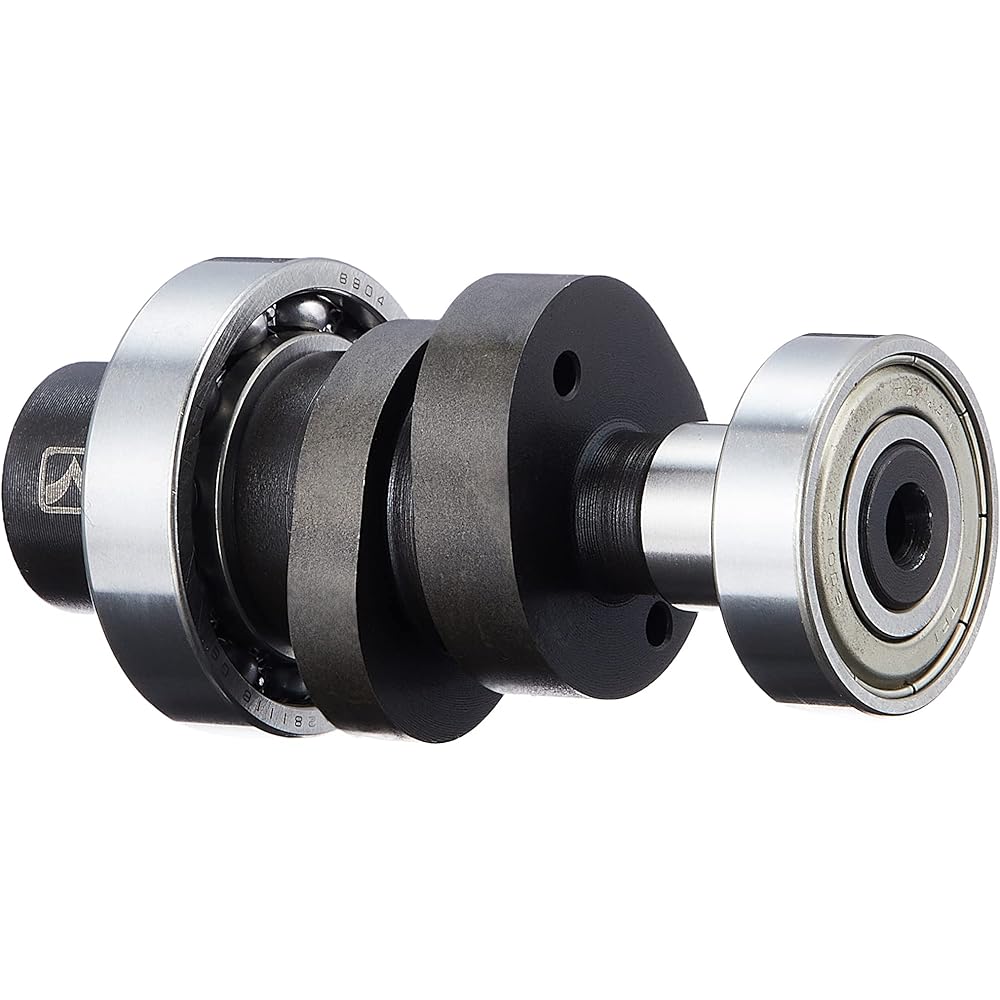

KITACO High Camshaft Super Cub 110 Super Cub 110 Pro Cross Cub 300-1429000

Compatible models [Compatible with normal cylinder head] Super Cub 110/Pro: FNO, JA10-1000001~ | Cross Cub: FNO, JA10-4000001~ This is a high camshaft that is compatible with the normal cylinder head. It achieves the characteristic of extending in the higher rotation range. *Separate I-MAP is required for installation, however, I-MAP is not required if only the high camshaft is installed.

This is a high camshaft that is compatible with normal cylinder heads. This realizes characteristics that extend in the higher rotation range. *A separate I-MAP is required for installation. However, if only the high camshaft is installed, I-MAP is not required. ■Compatible models [Compatible with the following normal cylinder heads] Super Cub 110/Pro: FNO, JA10-1000001 ~ Cross Cub: FNO, JA10-4000001 ~ ■ Specifications ○ Valve timing angle [IN valve] OPEN 5°BTDC | CLOSE 42° ABDC [EX valve] OPEN 35°BBDC | CLOSE 15°ATDC Reference value at 1mm lift Precautions for use When installing a high camshaft, we recommend installing Kitaco's i-map (763-1429100) at the same time. If the only change to the engine is the camshaft, it can be used without i-map installed. Multiple combinations such as "Kitako muffler + high cam" or "big throttle + high cam" will result in a thin air-fuel ratio (A/F value), so it is essential to install i-map from the perspective of engine protection.


Manufacturer: KITACO
Brand: KITACO
Model name: 300-1429000
Package size: 17 x 9.9 x 5.1 cm; 260 g
Product model number: ‎300-1429000
Product weight: ‎260 g
