Auto Parts Tokyo

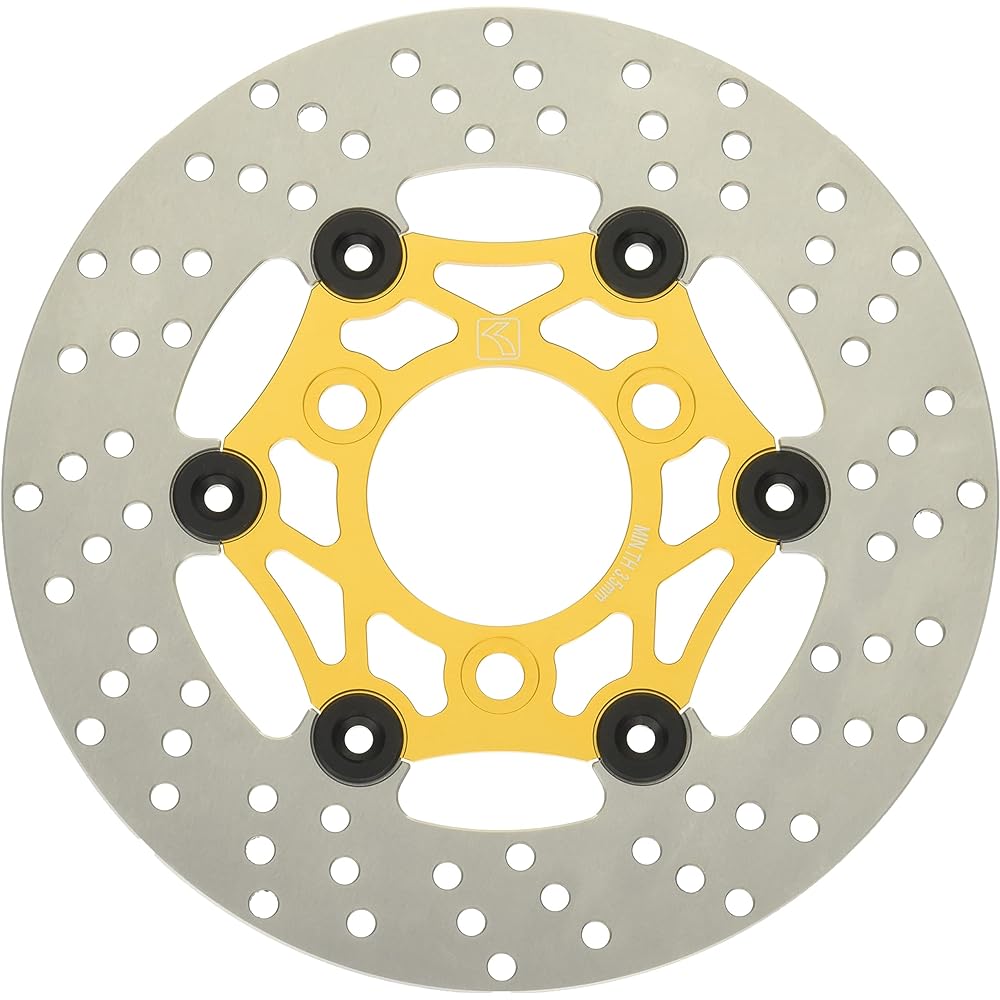

KITACO Floating Disc Rotor Ape 50-Type D/XR50 Motard/NSF100/NSR50/NS-1 etc. Gold/Black 500-1418730
KITACO Floating Disc Rotor Ape 50-Type D/XR50 Motard/NSF100/NSR50/NS-1 etc. Gold/Black 500-1418730
Regular price
$218.00 USD
Regular price
Sale price
$218.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Material: Outer disc: Stainless steel Inner plate, disc pin: Machined aluminum, alumite finish Compatibility: Ape 50-Type D: All AC18 models | XR50 Motard: All AD14 models | Ape 100-Type D: All HC13 models | XR100 Motard: HD13 all models | NSF100/NSR50: AC10 all models | NSR80: HC06 all models | NS-1: AC12 all models | NSR-MINI) Compatible with our monkey series φ30 front fork kit and disc hub kit The following calipers Compatible with our company's single push 2-pot caliper | our company's opposing 4-pot caliper | Normal caliper such as NSR50/80, Ape-Type D, NSF100, etc. | Brembo 4-pot caliper | Brembo 2-pot caliper (34mm large crab) Disc outer diameter: φ220 Hole diameter: φ58 P.C.D: φ80
Mounting hole diameter: φ10.5 Thickness: 4mm Width per pad: 35.5mm Display more items
φ220 floating disc rotor. This is a floating disc rotor that can withstand harsh conditions such as racing, developed for the Monkey series φ30 front fork kit and disc hub kit. By floating, distortion is minimized and stable performance is achieved even at high temperatures. Since it is based on the front disc rotor for NSR50, it can also be used for NSR50/80 series, Ape-Type D, etc. In addition, the width per brake pad is designed to be 35.5mm, so it is compatible with everything from normal calipers to Brembo 4-pod calipers. ■Compatible with the following brake calipers: ○ KITACO single push 2-pod caliper ○ NSR50/80, APE typeD, NSF100, etc. normal caliper ○ KITACO 4-pod caliper ○ Brembo 4-pod caliper ○ Brembo 2-pod caliper (34mm large crab) Outer disc: Stainless steel / Inner plate: Machined aluminum / Alumite finish / Disc pin: Machined aluminum / Alumite finish / Disc outer diameter: φ220 / Hole diameter: φ58 / P.C.D: φ80 / Mounting hole diameter: φ10.5 / Thickness: 4mm/width per pad: 35.5mm (also compatible with Brembo calipers, etc.)
Manufacturer: KITACO
Brand: KITACO
Model name: 500 -1418730
Package size: 27.6 x 24.9 x 0.6 cm; 759.99 g
Product model number: 500-1418730
Color: Gold/Black
Product weight: 760 g
φ220 floating disc rotor. This is a floating disc rotor that can withstand harsh conditions such as racing, developed for the Monkey series φ30 front fork kit and disc hub kit. By floating, distortion is minimized and stable performance is achieved even at high temperatures. Since it is based on the front disc rotor for NSR50, it can also be used for NSR50/80 series, Ape-Type D, etc. In addition, the width per brake pad is designed to be 35.5mm, so it is compatible with everything from normal calipers to Brembo 4-pod calipers. ■Compatible with the following brake calipers: ○ KITACO single push 2-pod caliper ○ NSR50/80, APE typeD, NSF100, etc. normal caliper ○ KITACO 4-pod caliper ○ Brembo 4-pod caliper ○ Brembo 2-pod caliper (34mm large crab) Outer disc: Stainless steel / Inner plate: Machined aluminum / Alumite finish / Disc pin: Machined aluminum / Alumite finish / Disc outer diameter: φ220 / Hole diameter: φ58 / P.C.D: φ80 / Mounting hole diameter: φ10.5 / Thickness: 4mm/width per pad: 35.5mm (also compatible with Brembo calipers, etc.)
Manufacturer: KITACO
Brand: KITACO
Model name: 500 -1418730
Package size: 27.6 x 24.9 x 0.6 cm; 759.99 g
Product model number: 500-1418730
Color: Gold/Black
Product weight: 760 g
