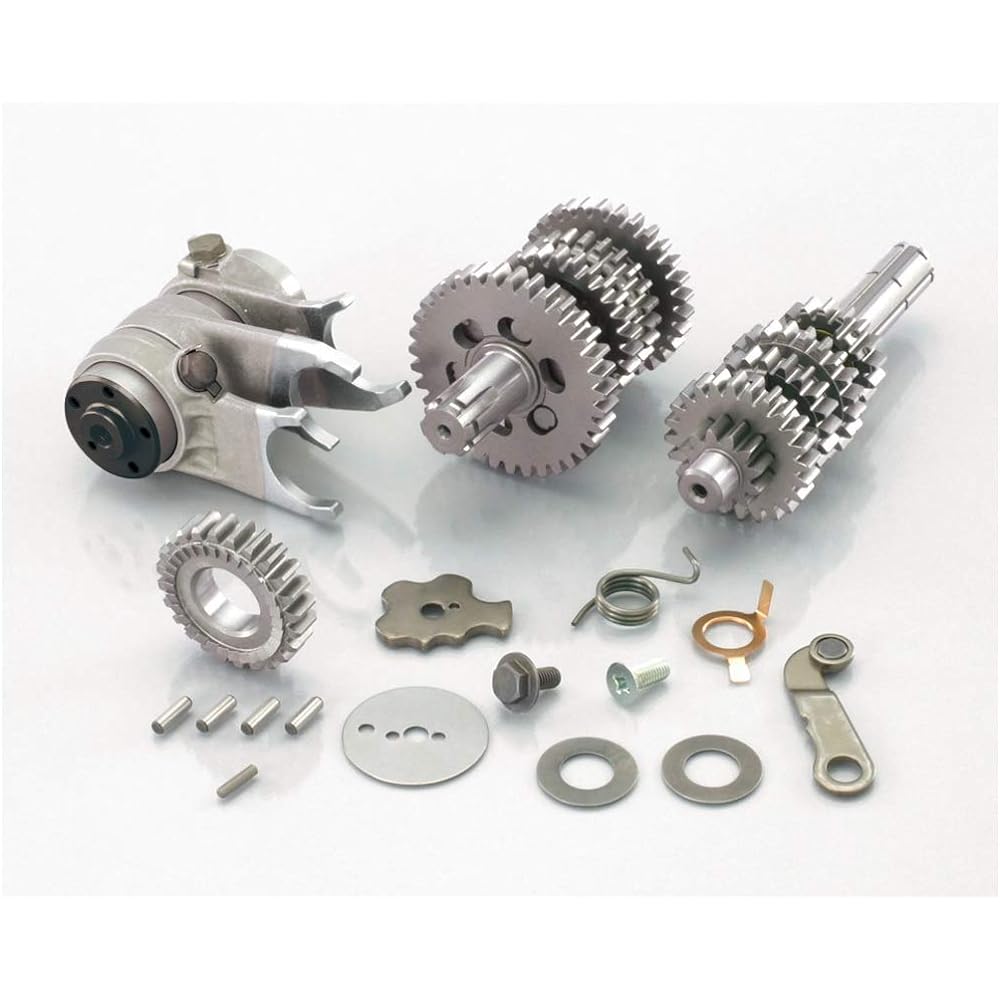

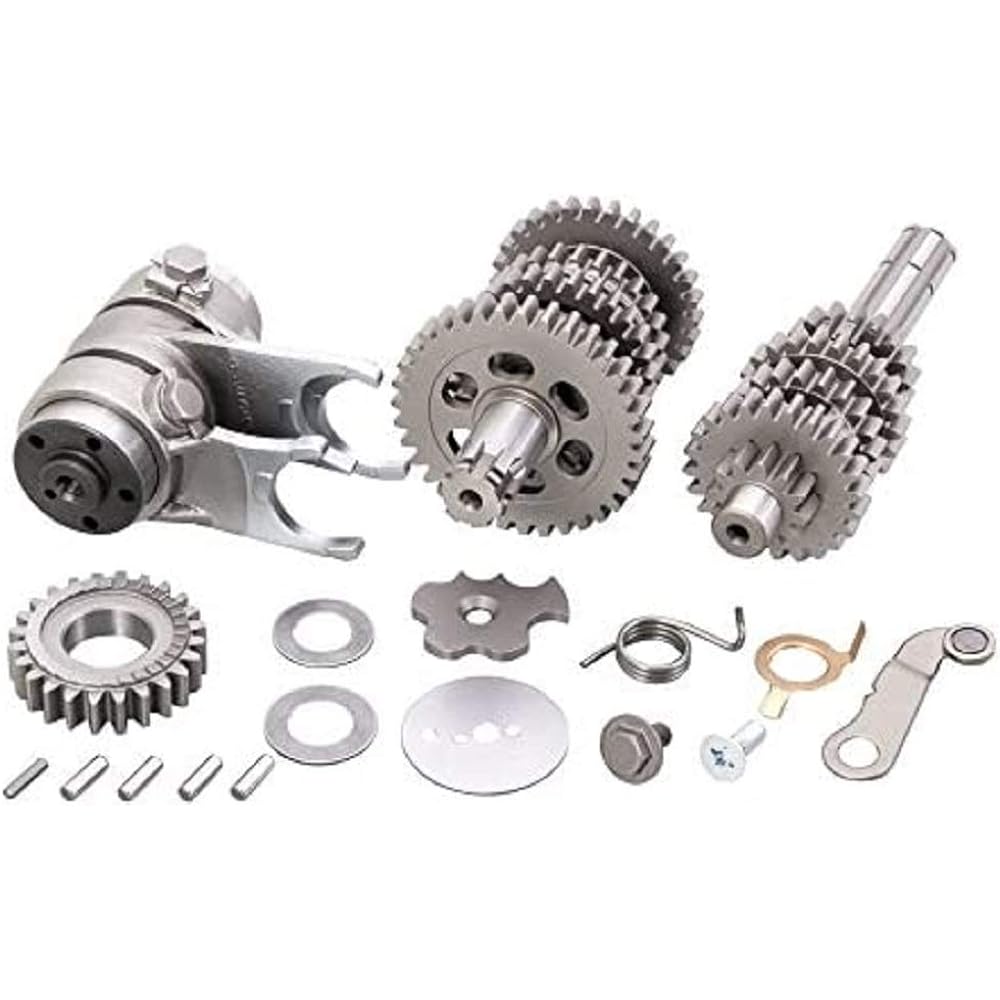

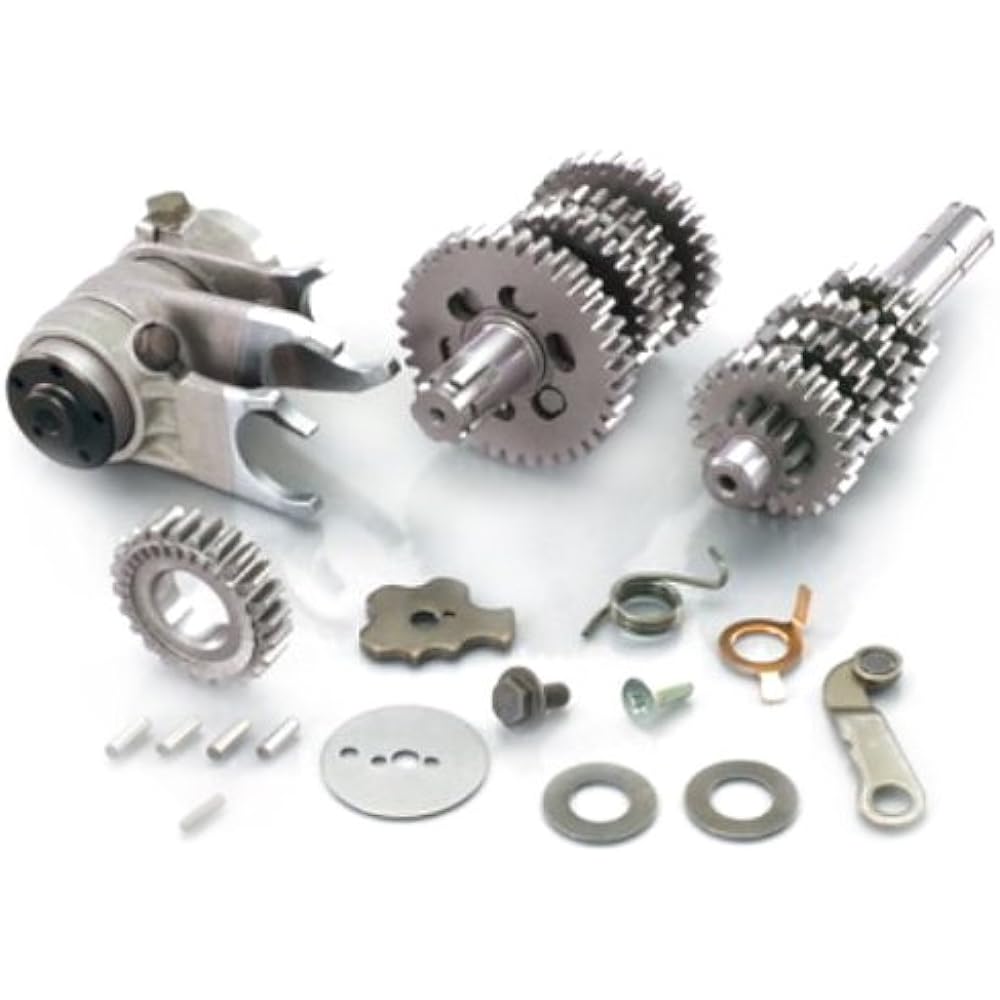

KITACO 5-speed cross mission ASSY type 2 WPC specification MONKEY/Gorilla/Dax 50 etc. 306-1123100
KITACO 5-speed cross mission ASSY type 2 WPC specification MONKEY/Gorilla/Dax 50 etc. 306-1123100
Regular price
$1,071.00 USD
Regular price
Sale price
$1,071.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Compatibility: Monkey normal clutch, KITACO 3-disk drive unit, KITACO ULTRA clutch KIT can be used.Kick starter gear included.WPC treatment on the surface improves wear resistance and reduces friction loss.Separate gaskets are required for installation.

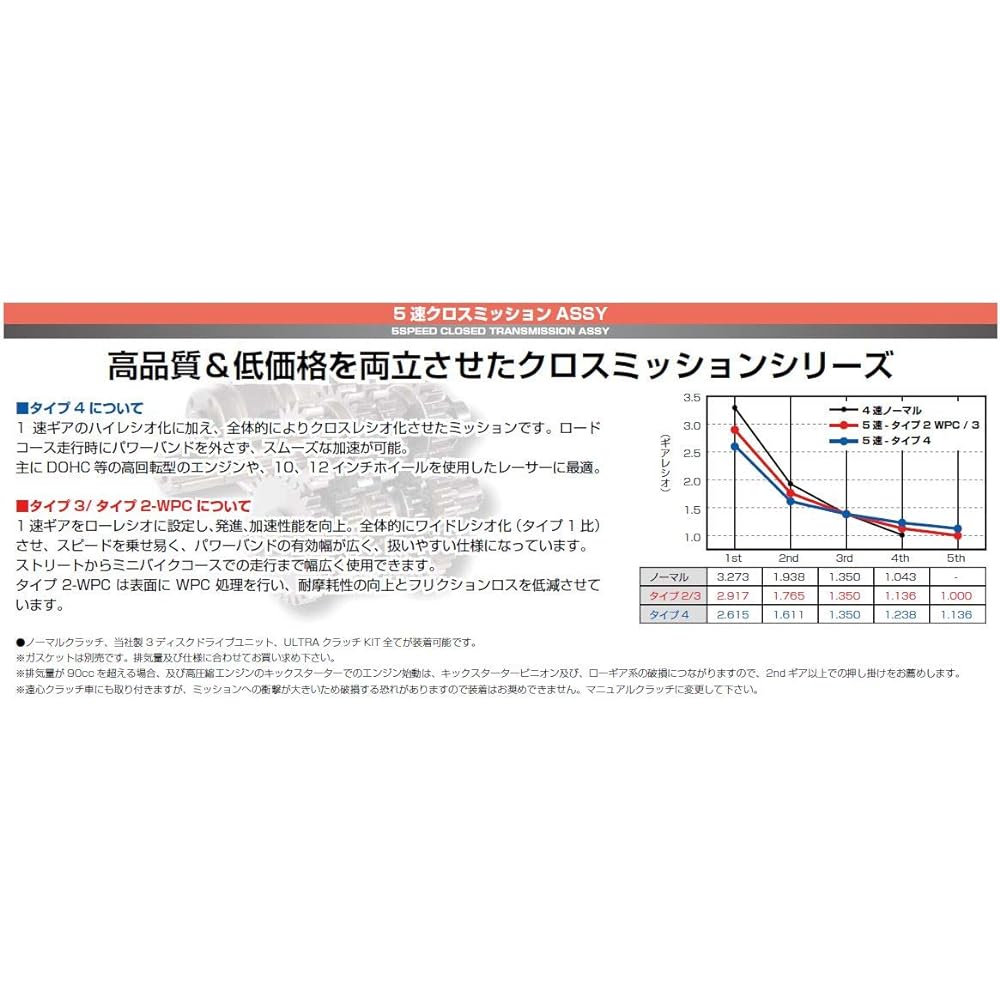

●Standard clutch, KITACO 2-disc drive unit, KITACO ULTRA clutch KIT can be used. ●Kickstarter gear included ●Steel shift drum adopted ●The 1st gear is set to a lower ratio to improve starting and acceleration performance, and the transmission has a slightly wider overall ratio than Type 1 (discontinued). This setting makes it easy to increase speed and makes full use of the effective width of the power band. Two types are available: Type 3, which has further reduced costs, and Type 2, which has improved wear resistance and reduced friction loss. ●Transmission ratio (normal 4-speed mission-monkey) 1st speed: 3.273/2nd speed: 11.938/3rd speed: 1.350/4th speed: 1.043 ●Transmission ratio (5-speed cross mission ASSY type 2WPC specification/Type 3) 1st speed: 2.917 / 2nd speed: 1.765 / 3rd speed: 1.350 / 4th speed: 1.136 / 5th speed: 1.000 ●Standard clutch, KITACO 2-disc drive unit, and KITACO ULTRA clutch KIT can all be installed. ●*Gasket is sold separately. Please purchase according to the displacement and specifications. ●*If the engine displacement exceeds 90cc, or if you use a kick starter to start a high-compression engine, it may damage the kick starter pinion and low gear system, so we recommend pushing the engine in 2nd gear or higher. ●※Can it be installed on centrifugal clutch vehicles? However, it is not recommended to install it as it may cause damage due to the large impact on the transmission. Please change to manual clutch. Compatible models: [HONDA] Monkey/Gorilla FNO, Z50J-2000001~ FNO, AB27-1000001~1899999 | Monkey Baja all models | Dax 50 (6V ST50) FNO, ST50-6100022~6346265 | Dax 50 (12V AB26) all models | Monkey R/RT FNO,AB22-1011926~ | Shary FNO,CF50-3200001~ | Ducks 70 FNO,ST70-6100023~ | *Kick starter spindle SET is required separately for installation on the following vehicles. | Monkey/Gorilla FNO,Z50J-1000001~1805927 | Ducks 50(6V ST50) FNO,ST50-1000001~6027910 | Monkey R/RT FNO,AB22-1000017~1011925 | CD50 FNO,CD50-1000001~1330600 | Shary F NO, CF50-1000002~3199999 | Ducks 70 FNO,ST70-1000001~6015109 Caution (Disclaimer) > Please read *The published photo may differ from the actual product due to changes in manufacturer specifications. Please note.
Manufacturer: KITACO
Brand: KITACO
Package size: 15.4 x 14.1 x 10 cm; 1.87 kg
Product model number: 306-1123100
Product weight: 1.87 Kilograms
●Standard clutch, KITACO 2-disc drive unit, KITACO ULTRA clutch KIT can be used. ●Kickstarter gear included ●Steel shift drum adopted ●The 1st gear is set to a lower ratio to improve starting and acceleration performance, and the transmission has a slightly wider overall ratio than Type 1 (discontinued). This setting makes it easy to increase speed and makes full use of the effective width of the power band. Two types are available: Type 3, which has further reduced costs, and Type 2, which has improved wear resistance and reduced friction loss. ●Transmission ratio (normal 4-speed mission-monkey) 1st speed: 3.273/2nd speed: 11.938/3rd speed: 1.350/4th speed: 1.043 ●Transmission ratio (5-speed cross mission ASSY type 2WPC specification/Type 3) 1st speed: 2.917 / 2nd speed: 1.765 / 3rd speed: 1.350 / 4th speed: 1.136 / 5th speed: 1.000 ●Standard clutch, KITACO 2-disc drive unit, and KITACO ULTRA clutch KIT can all be installed. ●*Gasket is sold separately. Please purchase according to the displacement and specifications. ●*If the engine displacement exceeds 90cc, or if you use a kick starter to start a high-compression engine, it may damage the kick starter pinion and low gear system, so we recommend pushing the engine in 2nd gear or higher. ●※Can it be installed on centrifugal clutch vehicles? However, it is not recommended to install it as it may cause damage due to the large impact on the transmission. Please change to manual clutch. Compatible models: [HONDA] Monkey/Gorilla FNO, Z50J-2000001~ FNO, AB27-1000001~1899999 | Monkey Baja all models | Dax 50 (6V ST50) FNO, ST50-6100022~6346265 | Dax 50 (12V AB26) all models | Monkey R/RT FNO,AB22-1011926~ | Shary FNO,CF50-3200001~ | Ducks 70 FNO,ST70-6100023~ | *Kick starter spindle SET is required separately for installation on the following vehicles. | Monkey/Gorilla FNO,Z50J-1000001~1805927 | Ducks 50(6V ST50) FNO,ST50-1000001~6027910 | Monkey R/RT FNO,AB22-1000017~1011925 | CD50 FNO,CD50-1000001~1330600 | Shary F NO, CF50-1000002~3199999 | Ducks 70 FNO,ST70-1000001~6015109 Caution (Disclaimer) > Please read *The published photo may differ from the actual product due to changes in manufacturer specifications. Please note.
Manufacturer: KITACO
Brand: KITACO
Package size: 15.4 x 14.1 x 10 cm; 1.87 kg
Product model number: 306-1123100
Product weight: 1.87 Kilograms
