KingVal Replacement 5055 570KV Brushless Motor with Screw Kit Compatible with RC Fixed Wing Plane Glider Aircraft

14 pole, 12 slot high torque motor design. CNC machined 6061 T6 billet aluminum heat sink can. High purity copper windings maximize efficiency; High RPM ABEC5 oversized bearings. Precision balanced rotor, smooth for best reliability and max RPM Precision engineered for maximum energy conversion.

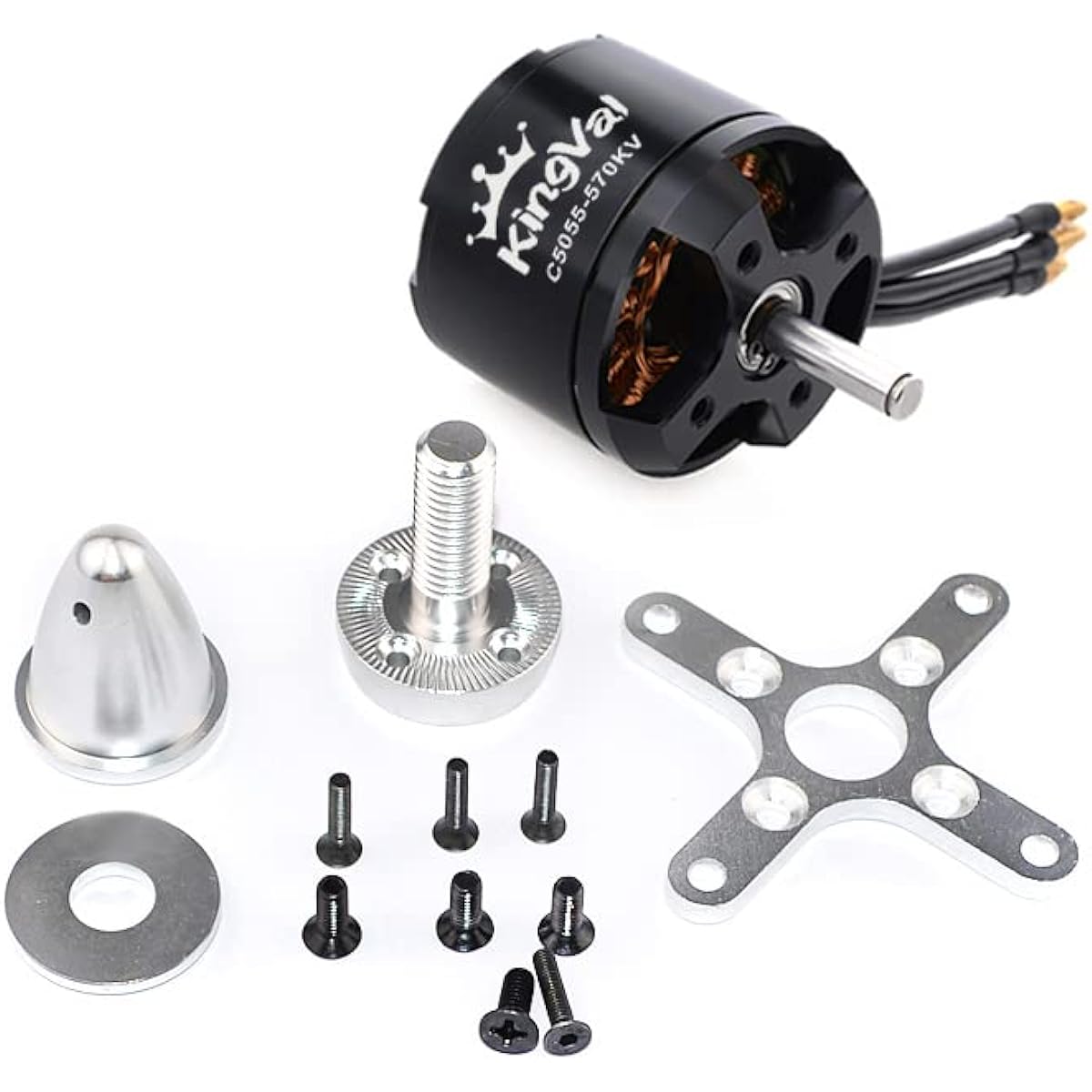

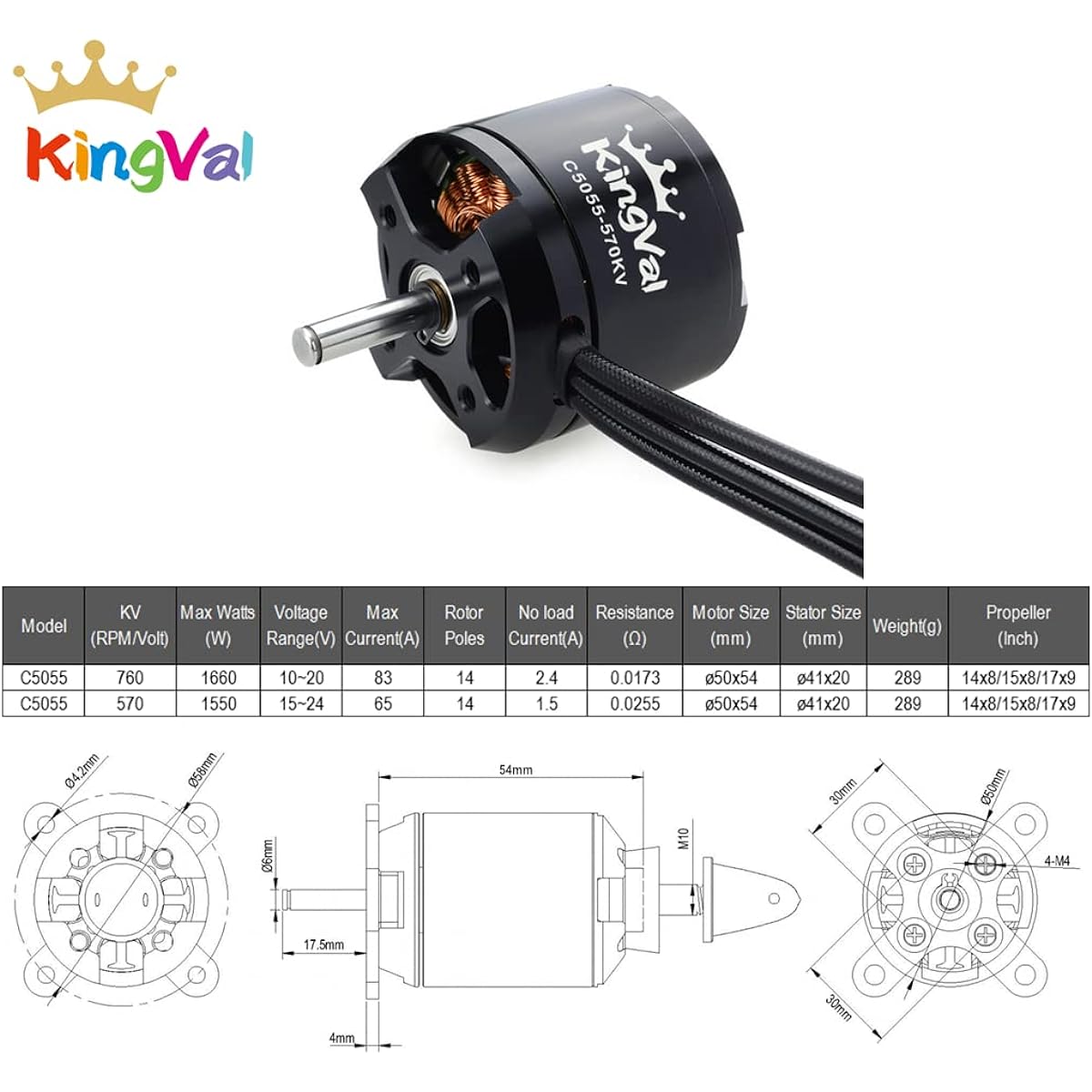

Features: * 14 pole, 12 slot high torque motor design. * CNC machined 6061 T6 billet aluminum heat sink can. * High purity copper windings maximize efficiency. * High RPM ABEC5 oversized bearings. * Precision balanced rotor, smooth for best reliability and max RPM. * Stator - Ultra thin (0.2mm) laminations. * Precision engineered for maximum energy conversion. Specification: Brand: KingVal. Motor size: 50*54mm Stator size: 41×20mm. Rotor poles: 14. Weight: 289g. KV: 570KV Wattage: 1550W Voltage Range: 15-24V Max Current: 65A No Load Current: 1.5A Resistance: 0.0255Ω Propeller: 14x8/15x8/17x9 inch Package Includes: 1 x 5055 Motor with Screw Kit


Manufacturer: KingVal
Part Number: C5055 570KV Kit
Item Weight: 380 g
Product Dimensions: 14 x 9 x 6 cm; 380 g
Size: 570KV
Style: C5055
Material: Aluminum
Voltage: 24 Volts
Horsepower: 1550 Watts
Speed: 570 RPM
Batteries Included: No
Batteries Required: No
Item Dimensions (L x W x H): 14 x 9 x 6 cm
