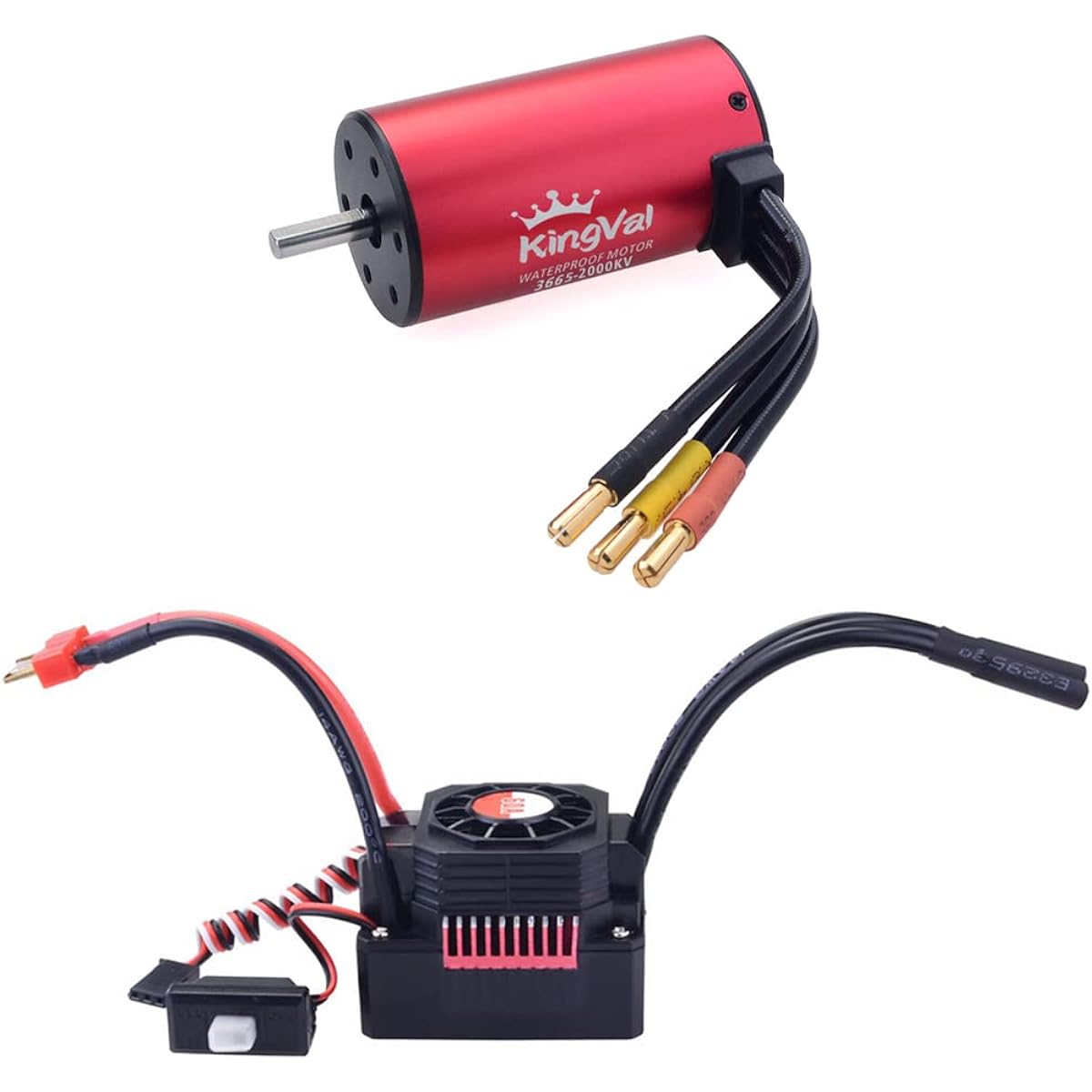

KingVal Replacement 3665 2000KV Waterproof Brushless Motor Shaft with 5mm 60A Brushless ESC for 1/10 RC Car
KingVal Replacement 3665 2000KV Waterproof Brushless Motor Shaft with 5mm 60A Brushless ESC for 1/10 RC Car
Regular price
$215.00 USD
Regular price
Sale price
$215.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

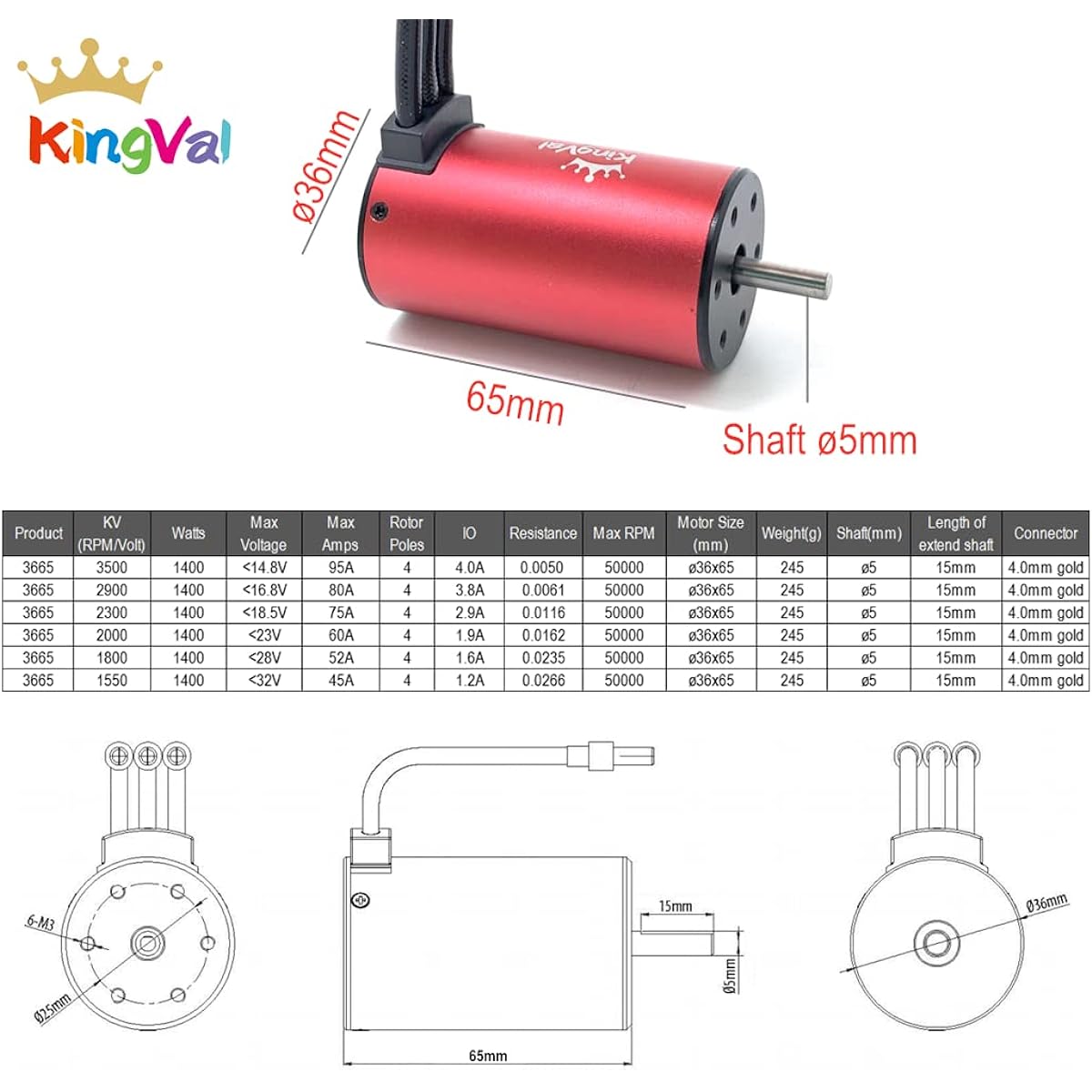

4 pole 6 slot high torque motor design; Removable/replaceable rotor. CNC machined 6061 T6 billet aluminum heat sink can. High purity copper windings for maximum efficiency; High RPM ABEC5 oversized bearings. Universal fit, fits all 1/10 brushless cars. Multi-mount system for M3 screws. Precision balanced rotor, highest reliability and maximum RPM.
Features: ★ 4 pole 6 slot high torque motor design. ★ CNC machined 6061 T6 billet aluminum heat sink can. ★ High purity copper windings for maximum efficiency. ★ High RPM ABEC5 oversized bearings. ★ Universal fit, fits all 1/10 brushless cars. Multi-mount system for M3 screws. ★ Precision balanced rotor, smoothness for highest reliability and maximum RPM. ★ Stator - Ultra thin (0.35mm) laminate. ★ Removable/replaceable rotor. ★ Precision engineered for maximum energy conversion. Specification: Brand: KingVal. Product: Waterproof 3665 Brushless Motor. KV(RPM/Volts): 2000. Watts: 1400. Max Voltage: <23V. Max Amperes: 60A. Rotor Poles: 4 IO: 1.9A. Resistance: 0.0162 Max RPM: 50000. Shaft: ø5.0mm Extended Shaft Length: 15mm. Connector: 4.0mm Gold 60A ESC: Continuous Current/Burst Current: 60A/360A. Motor Type: Sensorless Brushless Motor. For 2S LiPo or 6Cell NiMH: 1. On-Road: Motors with KV<6000KV below 3660-size. 2. Off-Road/Buggy/Monster: Motors with KV<4000KV below 3660-size. For 3S LiPo or 9Cell NiMH: 1. On-Road: Motors with KV<3660-size below 3660-size. 1. KV<4000KV 2. Off-road/Buggy/Monster: 3660 size motor or less. KV<3000KV 3. Suitable for: 1/10 car Resistance: 0.0007ohm Battery: 2-3S Lipo/4-9 cells NiMH BEC Output: 5.8V/3A(Analog mode) Size: 51.5 x 38.5 x 38.5mm Weight: 76g Package Includes: 1 x 3665 Brushless Motor 1 x 60A Brushless ESC 1 x User Manual
Manufacturer: KingVal
Part Number: 5mm 3665 2000KV+60A
Item Weight: 360 g
Product Size: 6.5 x 3.6 x 3.6 cm; 360 g
Size: 2000KV
Style: Waterproof 3665.
Material: Aluminum
Voltage: 5.8 Volts
Horsepower: 2000 Watts
Speed: 50000 RPM
Batteries Included: No
Batteries Used: No
Item Dimensions (L x W x H): 6.5 x 3.6 x 3.6 cm
Features: ★ 4 pole 6 slot high torque motor design. ★ CNC machined 6061 T6 billet aluminum heat sink can. ★ High purity copper windings for maximum efficiency. ★ High RPM ABEC5 oversized bearings. ★ Universal fit, fits all 1/10 brushless cars. Multi-mount system for M3 screws. ★ Precision balanced rotor, smoothness for highest reliability and maximum RPM. ★ Stator - Ultra thin (0.35mm) laminate. ★ Removable/replaceable rotor. ★ Precision engineered for maximum energy conversion. Specification: Brand: KingVal. Product: Waterproof 3665 Brushless Motor. KV(RPM/Volts): 2000. Watts: 1400. Max Voltage: <23V. Max Amperes: 60A. Rotor Poles: 4 IO: 1.9A. Resistance: 0.0162 Max RPM: 50000. Shaft: ø5.0mm Extended Shaft Length: 15mm. Connector: 4.0mm Gold 60A ESC: Continuous Current/Burst Current: 60A/360A. Motor Type: Sensorless Brushless Motor. For 2S LiPo or 6Cell NiMH: 1. On-Road: Motors with KV<6000KV below 3660-size. 2. Off-Road/Buggy/Monster: Motors with KV<4000KV below 3660-size. For 3S LiPo or 9Cell NiMH: 1. On-Road: Motors with KV<3660-size below 3660-size. 1. KV<4000KV 2. Off-road/Buggy/Monster: 3660 size motor or less. KV<3000KV 3. Suitable for: 1/10 car Resistance: 0.0007ohm Battery: 2-3S Lipo/4-9 cells NiMH BEC Output: 5.8V/3A(Analog mode) Size: 51.5 x 38.5 x 38.5mm Weight: 76g Package Includes: 1 x 3665 Brushless Motor 1 x 60A Brushless ESC 1 x User Manual
Manufacturer: KingVal
Part Number: 5mm 3665 2000KV+60A
Item Weight: 360 g
Product Size: 6.5 x 3.6 x 3.6 cm; 360 g
Size: 2000KV
Style: Waterproof 3665.
Material: Aluminum
Voltage: 5.8 Volts
Horsepower: 2000 Watts
Speed: 50000 RPM
Batteries Included: No
Batteries Used: No
Item Dimensions (L x W x H): 6.5 x 3.6 x 3.6 cm
