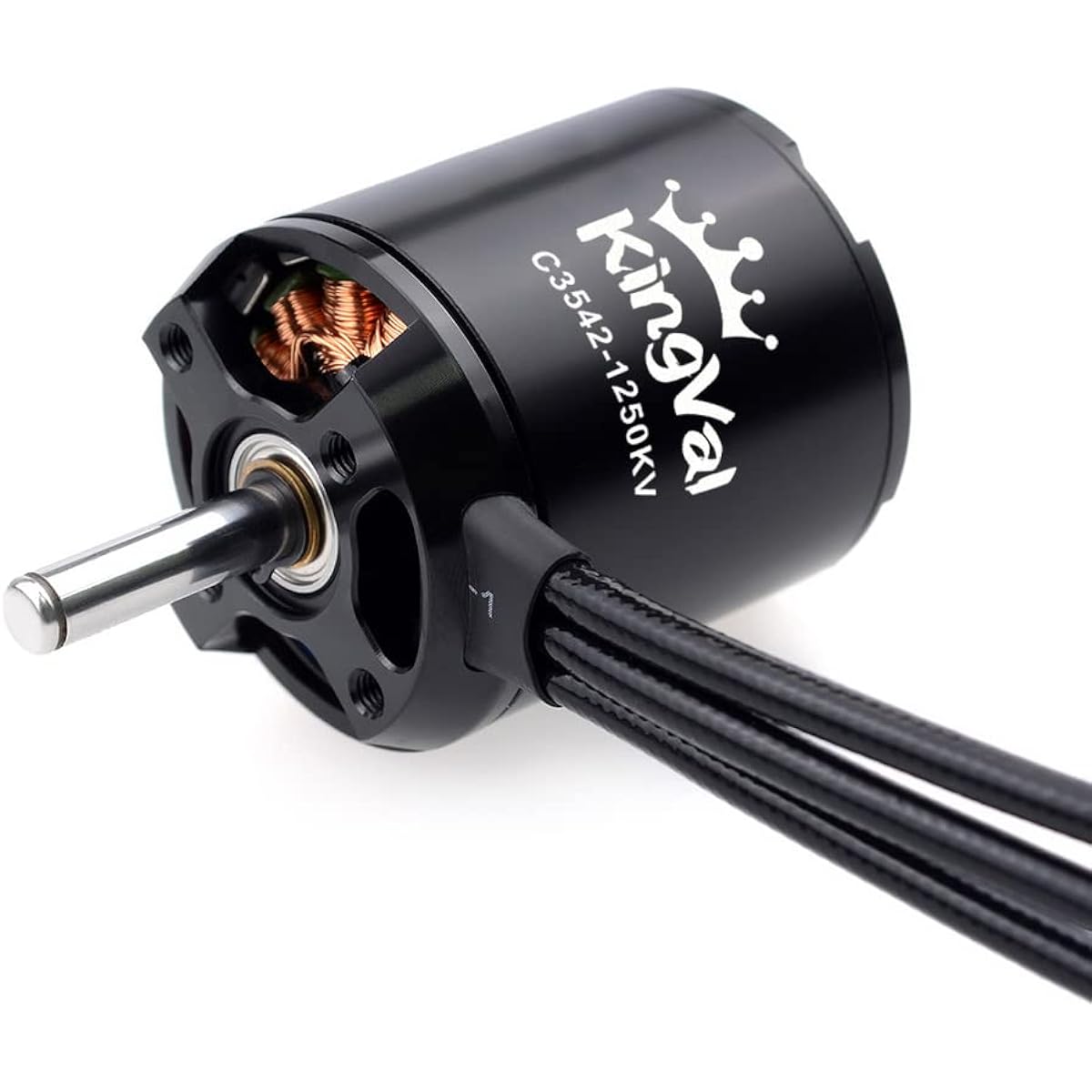

KingVal Replacement 3542 1250KV Brushless Motor with Screw Kit Compatible with RC Fixed Wing Plane Glider Aircraft

14 pole, 12 slot high torque motor design. CNC machined 6061 T6 billet aluminum heat sink can. High purity copper windings maximize efficiency; High RPM ABEC5 oversized bearings. Precision balanced rotor, smooth for best reliability and max RPM Precision engineered for maximum energy conversion.

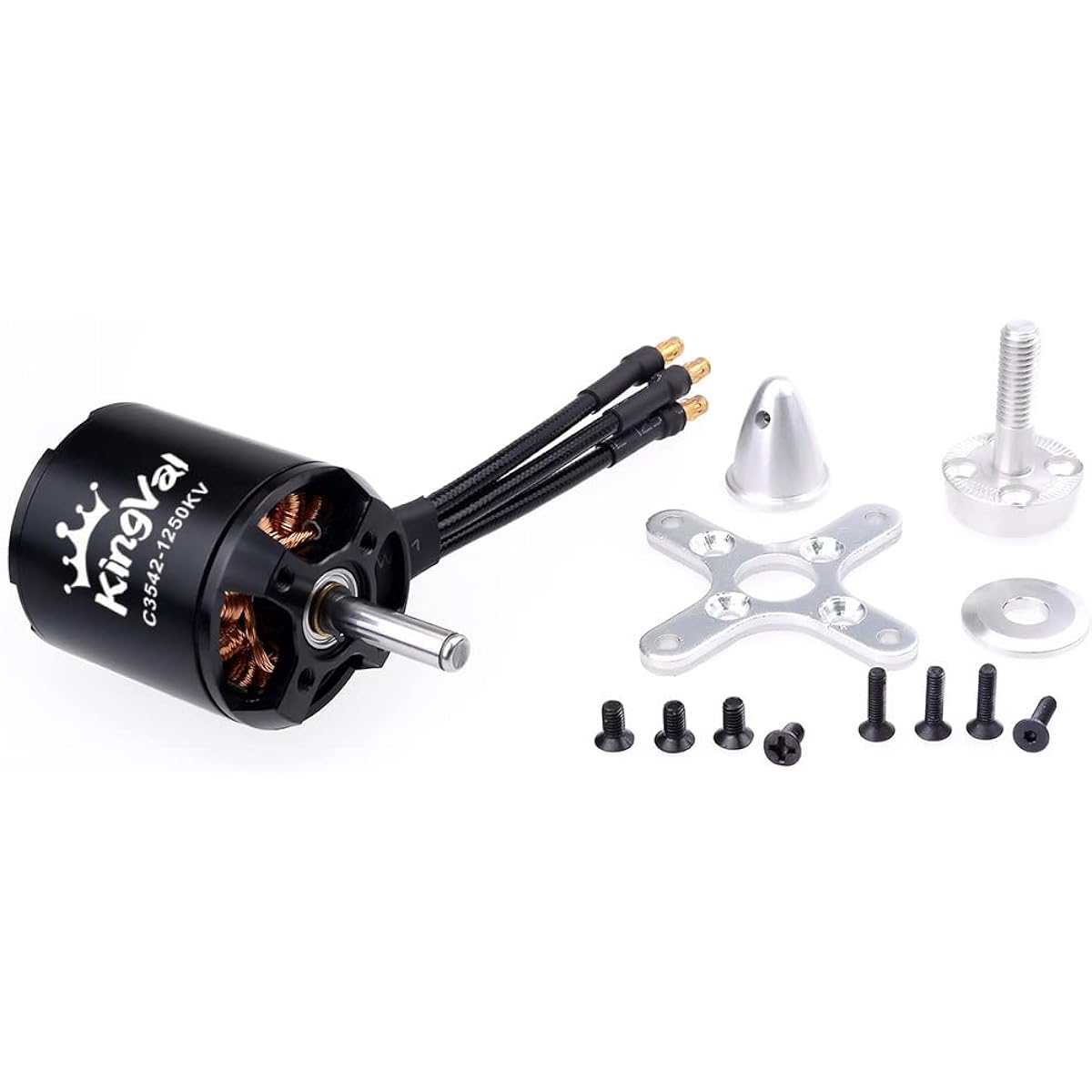

Features: * 14 pole, 12 slot high torque motor design. * CNC machined 6061 T6 billet aluminum heat sink can. * High purity copper windings maximize efficiency. * High RPM ABEC5 oversized bearings. * Precision balanced rotor, smooth for best reliability and max RPM. * Stator - Ultra thin (0.2mm) laminations. * Precision engineered for maximum energy conversion. Specification: Brand: KingVal. Motor size: 35*42mm. Stator size: 28*20mm Rotor poles: 14. Voltage range: 7-15V. Weight: 132g. KV: 1250KV Wattage: 850W Max Current: 65A No Load Current: 2.1A Resistance: 0.026Ω Propeller: 8x7/9x5/10x4inch Package Includes: 1 x 3542 Motor with Screw Kit


Manufacturer: KingVal
Part Number: C3542 1250KV Kit
Item Weight: 190 g
Product Dimensions: 11.5 x 7 x 4.5 cm; 190 g
Size: 1250KV
Style: C3542
Material: Aluminum
Voltage: 15 Volts
Horsepower: 850 Watts
Speed: 1250 RPM
Batteries Included: No
Batteries Required: No
Item Dimensions (L x W x H): 11.5 x 7 x 4.5 cm
