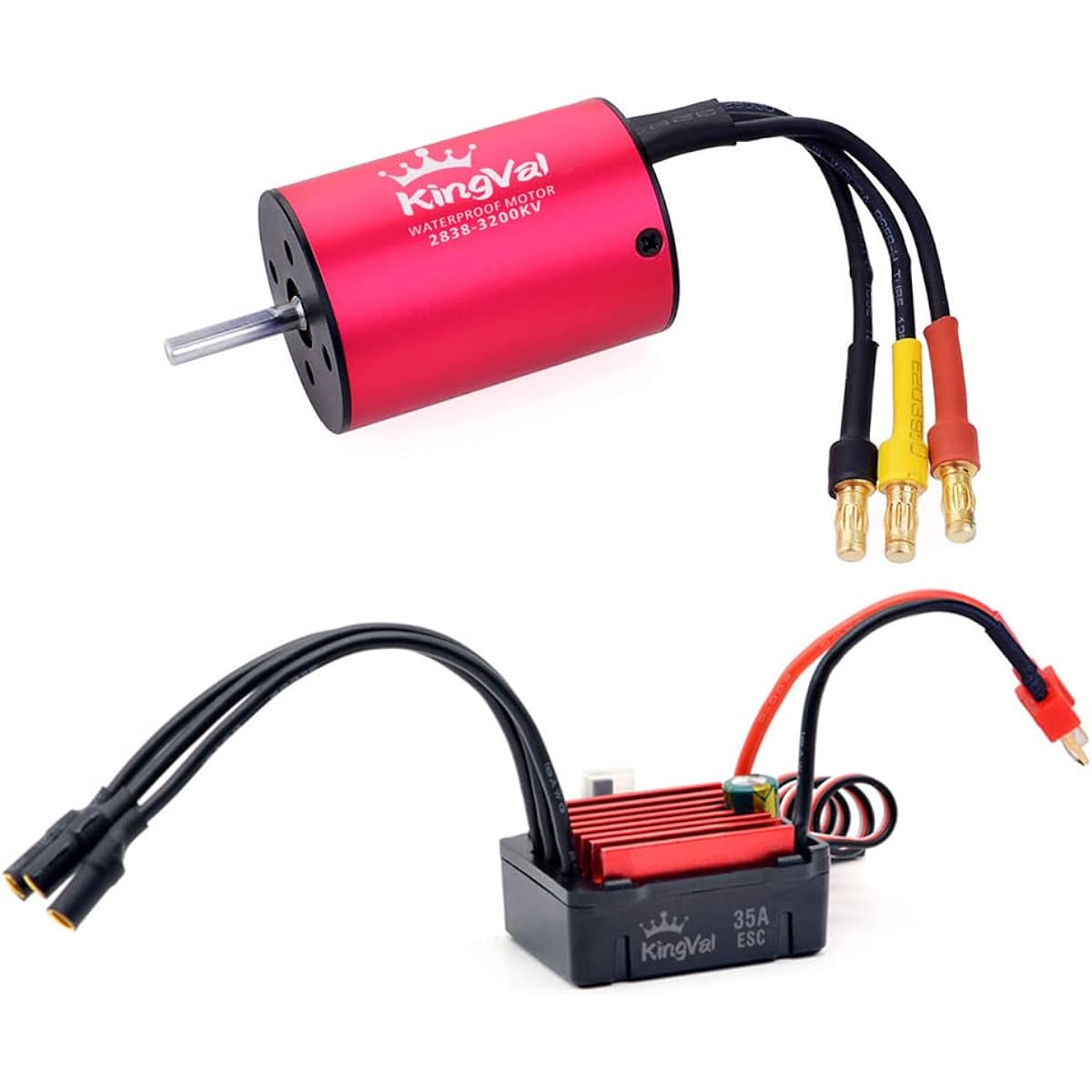

KingVal Replacement 2838 3200KV Waterproof Brushless Motor Shaft with 3.175mm 35A Brushless ESC Combo for 1/14 1/16 RC Cars
KingVal Replacement 2838 3200KV Waterproof Brushless Motor Shaft with 3.175mm 35A Brushless ESC Combo for 1/14 1/16 RC Cars
Regular price
$134.00 USD
Regular price
Sale price
$134.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
4 pole 12 slot high torque motor design. CNC machined 6061 T6 billet aluminum heat sink can. High purity copper windings maximize efficiency. High RPM ABEC5 oversized bearings. Universal fit, fits all 1/14 1/16 brushless cars. Multi-mount system for M3 screws. Precision balanced rotor, smooth for maximum reliability and maximum RPM.

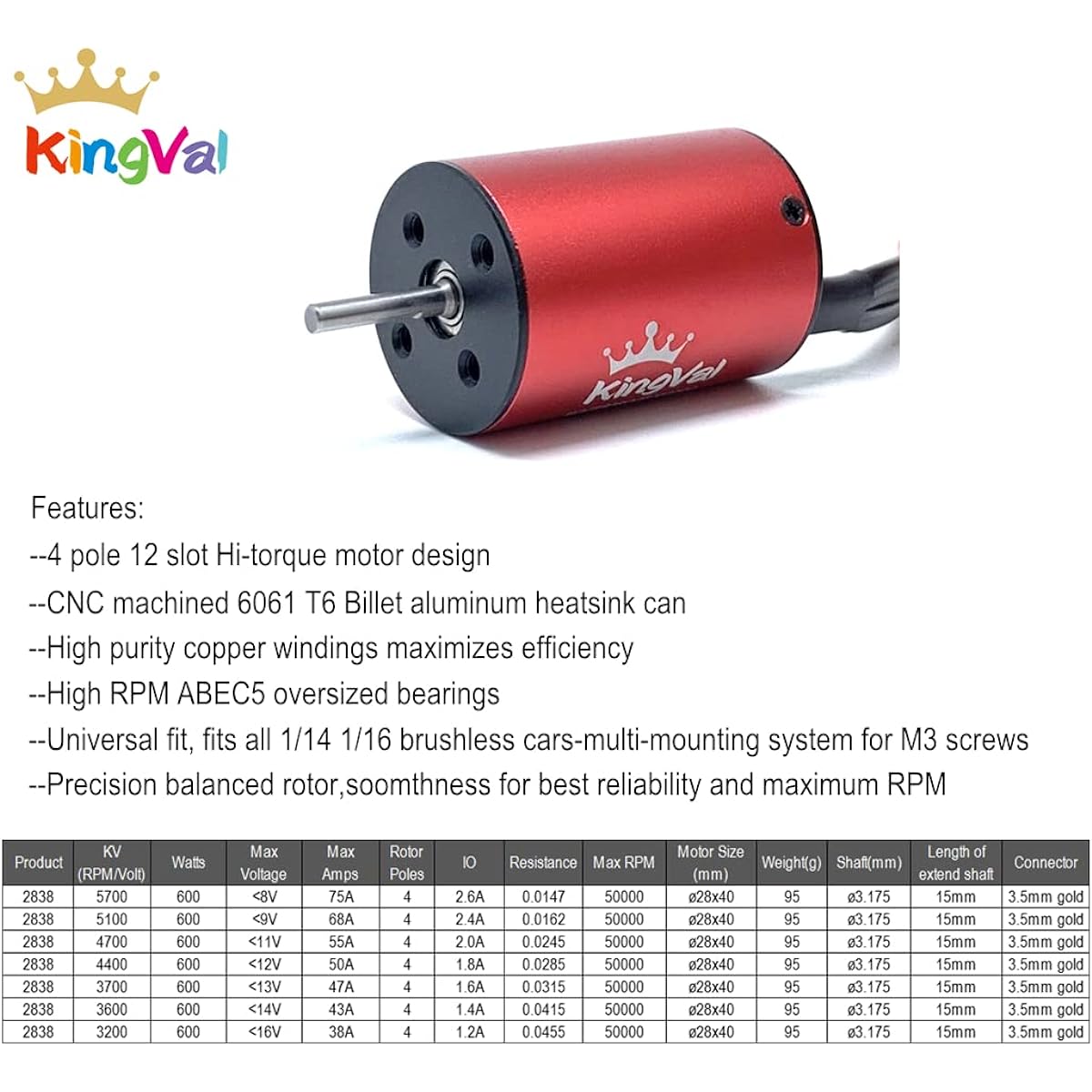

Features: *4 pole 12 slot high torque motor design. *CNC machined 6061 T6 billet aluminum heat sink can. *High purity copper windings maximize efficiency. *High RPM ABEC5 oversized bearings. *Universal fit, fits all 1/14 1/16 brushless cars. Multi-mount system for M3 screws. *Precision balanced rotor, smooth for maximum reliability and maximum RPM. *Stator - Ultra thin (0.35mm) laminations. *Removable/replaceable rotor. *Precision engineered to maximize energy conversion. Specification: Brand: KingVal. Product: 2838 Waterproof Motor. KV(RPM/Volts): 3200. Wattage: 600. Max Voltage: <16V(4S Lipo). Max Ampere: 38A. Rotor Poles: 4. IO: 1.2A. Resistance: 0.0455. Max RPM: 50000. Shaft: 3.175mm. Extended Shaft Length: 15mm. Connector: 3.5mm Gold. Weight: 95g. 35A ESC: Continuous/Burst Current: 35A/120A. Motor Type: Sensorless Brushless Motor. For 2S Lipo or 6-cell NiMH: 1. On-road: 28XX-size motors or smaller with KV<6000KV. 2. Off-road/Buggy/Monster: 28XX-size motors or smaller with KV<4000KV. For 3S Lipo or 9-cell NiMH: 1. On-road: 28XX-size motors or smaller with KV<4000KV. 2. Off-road/Buggy/Monster: 28XX-size motors or smaller with KV<3000KV. Suitable for: 1/16, 1/14 cars. Resistance: 0.0007ohm. Battery: 2-3S Lipo/4-9-cell NiMH BEC Output: 5.0V/2A(Analog mode). Package Includes: 1 x 2838 Brushless Motor 1 x 35A Brushless ESC 1 x User Manual
Manufacturer: KingVal
Part Number: 3.175mm 2838 3200KV+35A
Item Weight: 160 g
Product Dimensions: 4 x 2.8 x 2.8 cm; 160 g
Material: Aluminum
Voltage: 16 Volts
Horsepower: 600 Watts
Batteries Included: No
Battery Powered: No
Item Dimensions (L x W x H): 40 x 28 x 28 mm
Features: *4 pole 12 slot high torque motor design. *CNC machined 6061 T6 billet aluminum heat sink can. *High purity copper windings maximize efficiency. *High RPM ABEC5 oversized bearings. *Universal fit, fits all 1/14 1/16 brushless cars. Multi-mount system for M3 screws. *Precision balanced rotor, smooth for maximum reliability and maximum RPM. *Stator - Ultra thin (0.35mm) laminations. *Removable/replaceable rotor. *Precision engineered to maximize energy conversion. Specification: Brand: KingVal. Product: 2838 Waterproof Motor. KV(RPM/Volts): 3200. Wattage: 600. Max Voltage: <16V(4S Lipo). Max Ampere: 38A. Rotor Poles: 4. IO: 1.2A. Resistance: 0.0455. Max RPM: 50000. Shaft: 3.175mm. Extended Shaft Length: 15mm. Connector: 3.5mm Gold. Weight: 95g. 35A ESC: Continuous/Burst Current: 35A/120A. Motor Type: Sensorless Brushless Motor. For 2S Lipo or 6-cell NiMH: 1. On-road: 28XX-size motors or smaller with KV<6000KV. 2. Off-road/Buggy/Monster: 28XX-size motors or smaller with KV<4000KV. For 3S Lipo or 9-cell NiMH: 1. On-road: 28XX-size motors or smaller with KV<4000KV. 2. Off-road/Buggy/Monster: 28XX-size motors or smaller with KV<3000KV. Suitable for: 1/16, 1/14 cars. Resistance: 0.0007ohm. Battery: 2-3S Lipo/4-9-cell NiMH BEC Output: 5.0V/2A(Analog mode). Package Includes: 1 x 2838 Brushless Motor 1 x 35A Brushless ESC 1 x User Manual
Manufacturer: KingVal
Part Number: 3.175mm 2838 3200KV+35A
Item Weight: 160 g
Product Dimensions: 4 x 2.8 x 2.8 cm; 160 g
Material: Aluminum
Voltage: 16 Volts
Horsepower: 600 Watts
Batteries Included: No
Battery Powered: No
Item Dimensions (L x W x H): 40 x 28 x 28 mm
