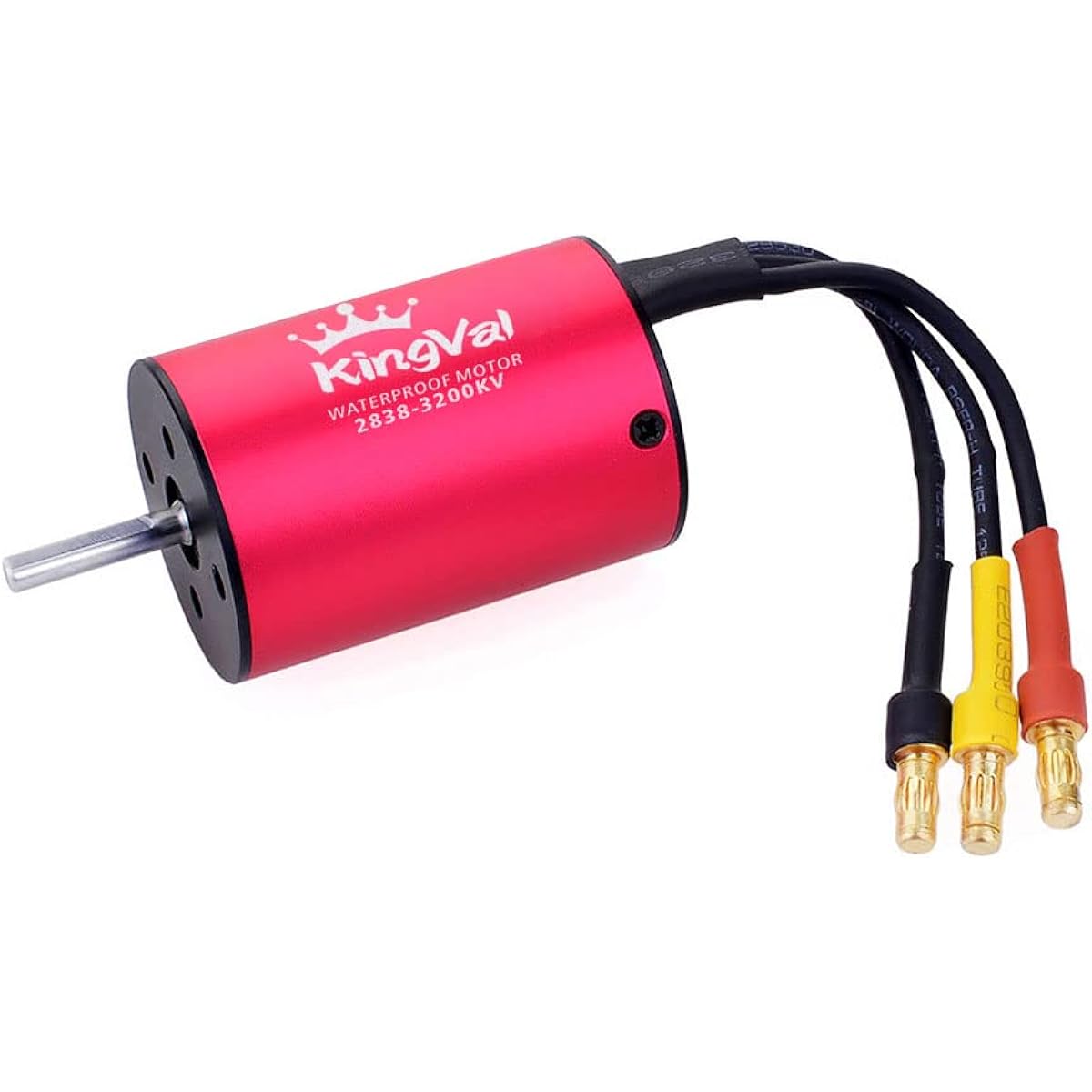

KingVal Replacement 2838 3200KV Waterproof Brushless Motor Shaft 3.175mm Compatible with 1/14 1/16 RC Car

4 pole 12 slot high torque motor design. CNC machined 6061 T6 billet aluminum heat sink can. High purity copper windings for maximum efficiency. High RPM ABEC5 oversized bearings. Universal fit, fits all 1/14 1/16 brushless cars, multi-mount system for M3 screws. Precision balanced rotor, best reliability and max RPM

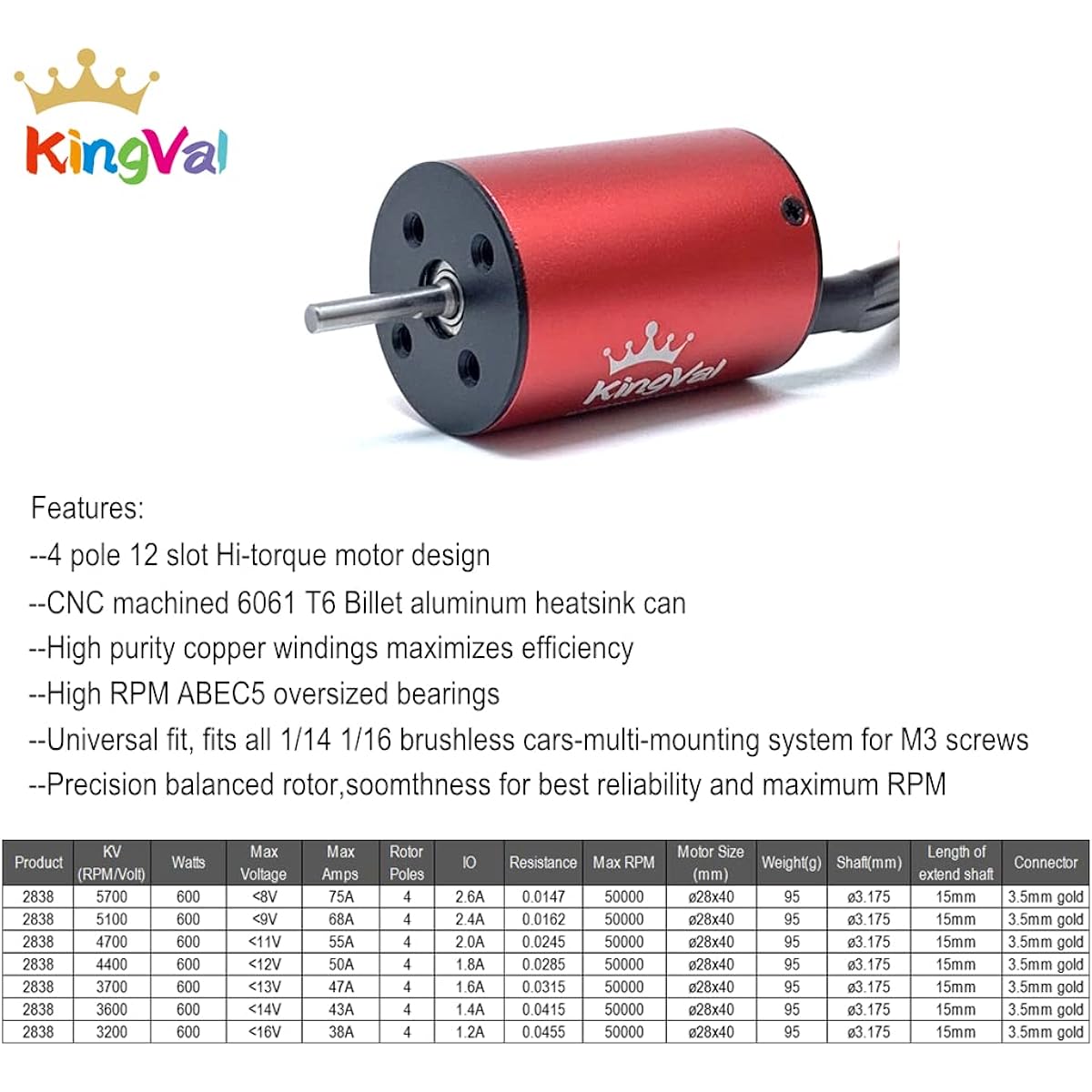

Features: *4 pole 12 slot high torque motor design. *CNC machined 6061 T6 billet aluminum heat sink can. *High purity copper windings for maximum efficiency. *High RPM ABEC5 oversized bearings *Universal fit, fits all 1/14 1/16 brushless cars - multi-mount system for M3 screws *Precision balanced rotor, SOOMTHNESS for best reliability and max RPM *Stator - Ultra thin (0.35mm) laminations. *Removable/replaceable rotor. *High precision design for maximum energy conversion. Specification: Brand: KingVal Product: 2838-3200KV KV(RPM/Volts): 3200 Watts: 600 Max Voltage: <16V(4S Lipo) Max Amperage: 38A Rotor Poles: 4 IO: 1.2A Resistance: 0.0455 Max RPM: 50000 Shaft: 3.175mm Extended Shaft Length: 15mm Connector: 3.5mm Gold Weight: 95g Package Includes: 1 x 2838 Motor 1 x Instruction Manual


Manufacturer: KingVal
Part Number: 2838(3.175mm) 3200KV
Item Weight: 120 g
Product Dimensions: 4 x 2.8 x 2.8 cm; 120 g
Size: 3200KV
Style: Waterproof 2838
Voltage: 16 Volts
Horsepower: 600 Watts
Batteries Included: No
Battery Powered: No
Item Dimensions (L x W x H): 40 x 28 x 28 mm
