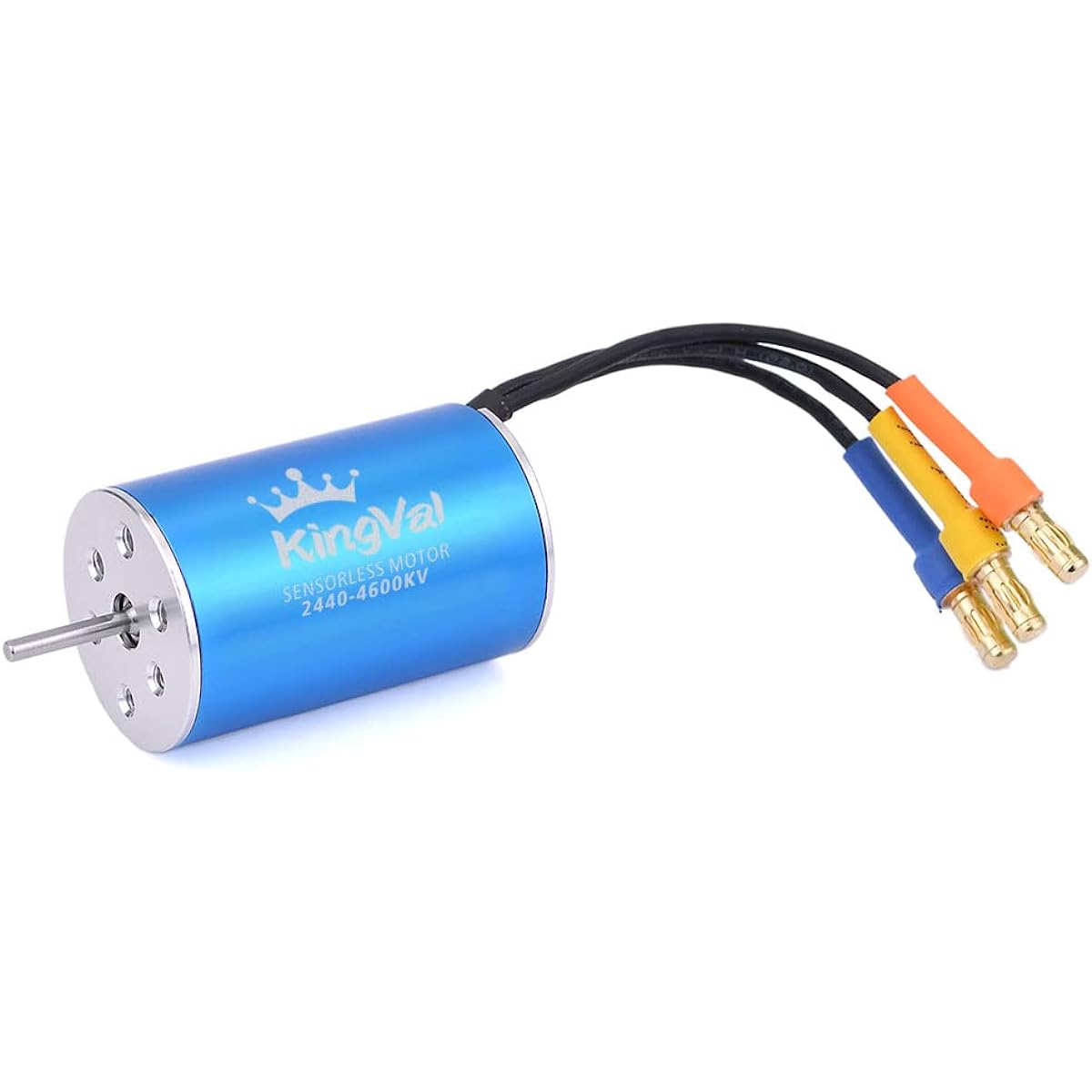

KingVal Replacement 2440 4600KV Sensorless Brushless Motor Shaft 2.3mm Diameter Compatible with 1/16 1/18 RC Cars

4 pole 12 slot high torque motor design. CNC machined 6061 T6 billet aluminum heat sink can. High purity copper windings for maximum efficiency. High RPM ABEC5 oversized bearings. Universal fit, fits all 1/16, 1/18 brushless cars. Multi-mount system for M2.5 screws. Precision balanced rotor, best reliability and maximum RPM.

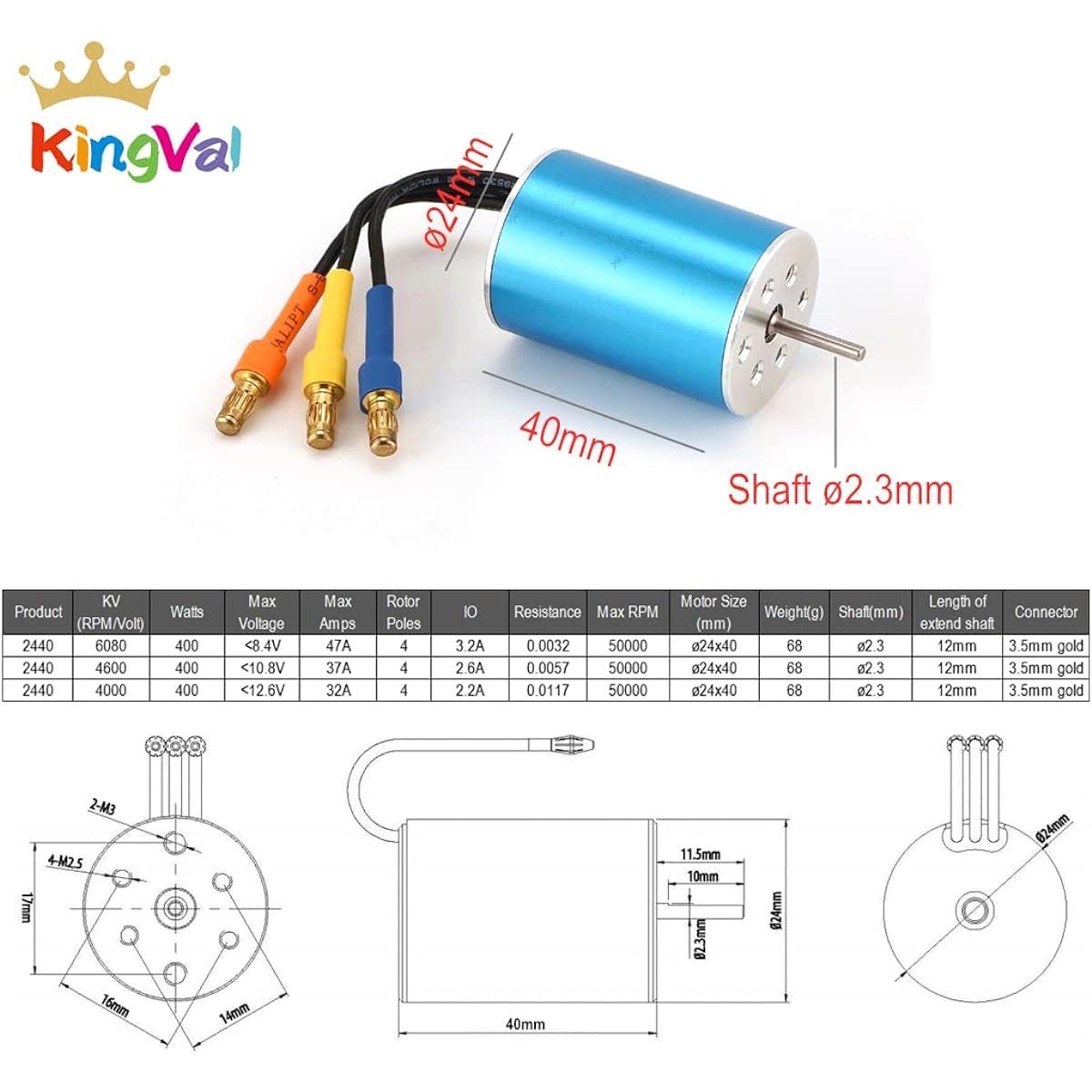

Features: *4 pole 12 slot high torque motor design. *CNC machined 6061 T6 billet aluminum heat sink can. *High purity copper windings for maximum efficiency. *High RPM ABEC5 oversized bearings. *Universal fit, fits all 1/16, 1/18 brushless cars, Multi-mount system for M2.5 screws. *Precision balanced rotor, smooth for best reliability and maximum RPM. *Stator-Ultra thin (0.35mm) laminations. *Precision engineered for maximum energy conversion. Specification: Brand Name: KingVal. Product: 2440 Sensorless Brushless Motor Motor Size: ø24x40mm KV(RPM/Volts): 4600 Wattage: 400 Max Voltage: <10.8V Max Ampere: 37A Rotor Poles: 4 IO: 2.6A Resistance: 0.0057 Max RPM: 50000 Shaft Diameter: 2.3mm Extended Shaft Length: 12mm Connector: 3.5mm Gold N.W: 70g Package Includes: 1 x 2440 Sensorless Brushless Motor 1 x Instruction Manual


Manufacturer: KingVal
Part Number: 2.3mm-2440 4600KV
Item Weight: 100 g
Product Dimensions: 4 x 2.4 x 2.4 cm; 100 g
Size: 4600KV
Style: Sensorless 2440
Material: Aluminum
Voltage: 10.8 Volts
Horsepower: 400 Watts
Batteries Included: No
Battery Used: No
Item Dimensions (L x W x H): 40 x 24 x 24 mm
