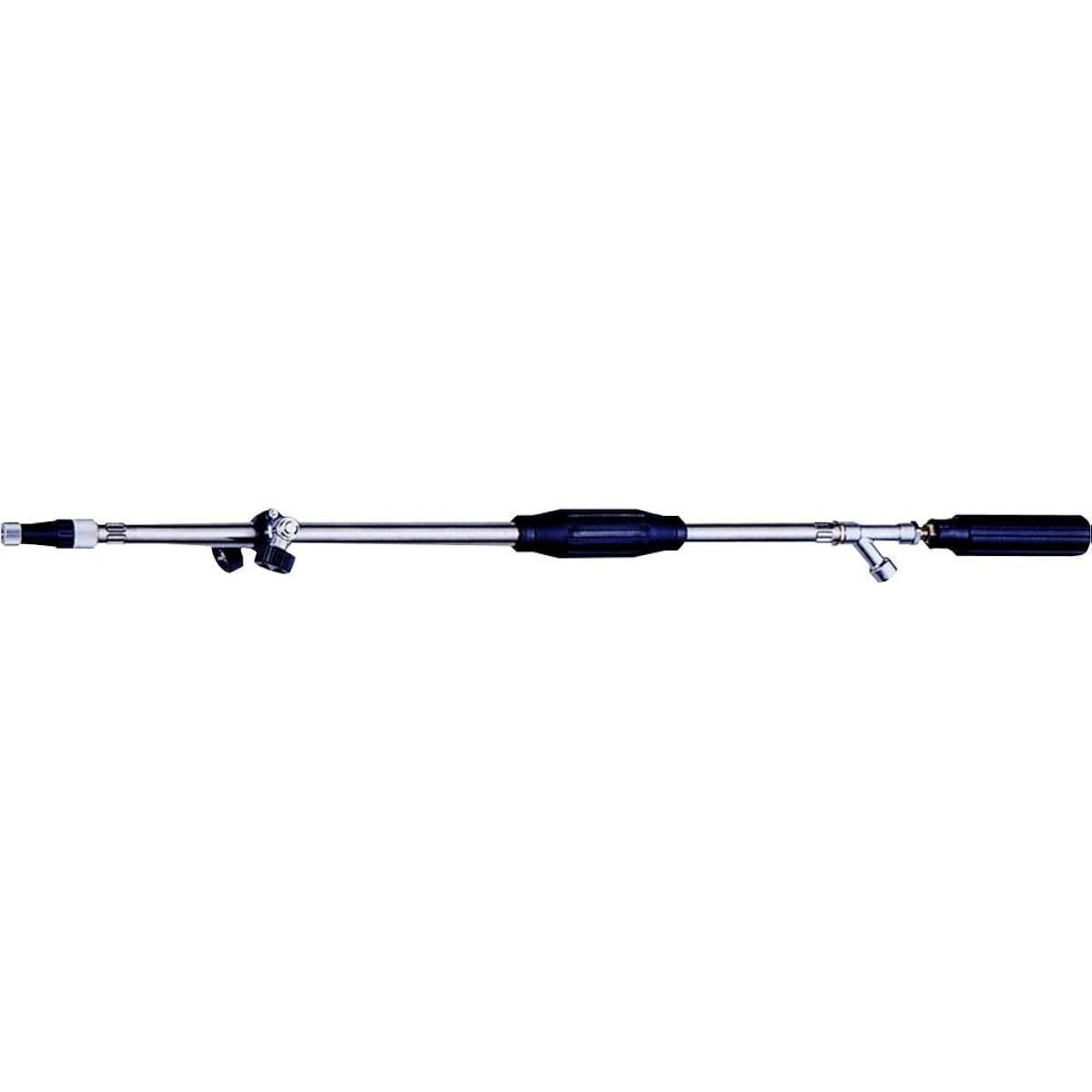

Nagata Manufacturing Paddy Nozzle (G1/4) 1238600

Performance: Mounting screw G1/4, main nozzle φ1.5, sub φ1-3, 1-15 [Total water volume (L) when main nozzle directs injection] Nozzle pressure (MPa): 1.0/7.2, 1.5/8.7, 2.0/10.2 [Distance reached when main nozzle directs (m)] Nozzle pressure (MPa): 1.0/8.5, 1.5/9.0, 2.0/9.5 [Total water volume when main nozzle diffuses (L)] Nozzle pressure (MPa): 1.0/ 5.8, 1.5/7.4, 2.0/8.6 [Reach distance (m)] Nozzle pressure (MPa): 1.0/4.5, 1.5/4.5, 2.0/5.0 [Main nozzle water volume (L)] Nozzle pressure (MPa): 1.0/4.0 , 1.5/5.2, 2.0/6.1 [Sub-nozzle water volume (L)] Nozzle pressure (MPa): 1.0/3.2, 1.5/3.5, 2.0/4.1 Material: Made of stainless steel pipe

Applications: [For backpack-powered sprayers] Spraying rice lodging prevention agent [Features] Each of the three nozzles has an individual stop function, and by turning the hand grip, the main nozzle's spray pattern changes from straight to cone-shaped. Since it can be changed, the scattering range can be adjusted as desired.


Brand: ‎Nagata Seisakusho Co., Ltd.
Product model number: ‎1238600.0
Package size: ‎80 x 10 x 10 cm; 620 g
Material: ‎Stainless steel
>Product weight: ‎620 g
