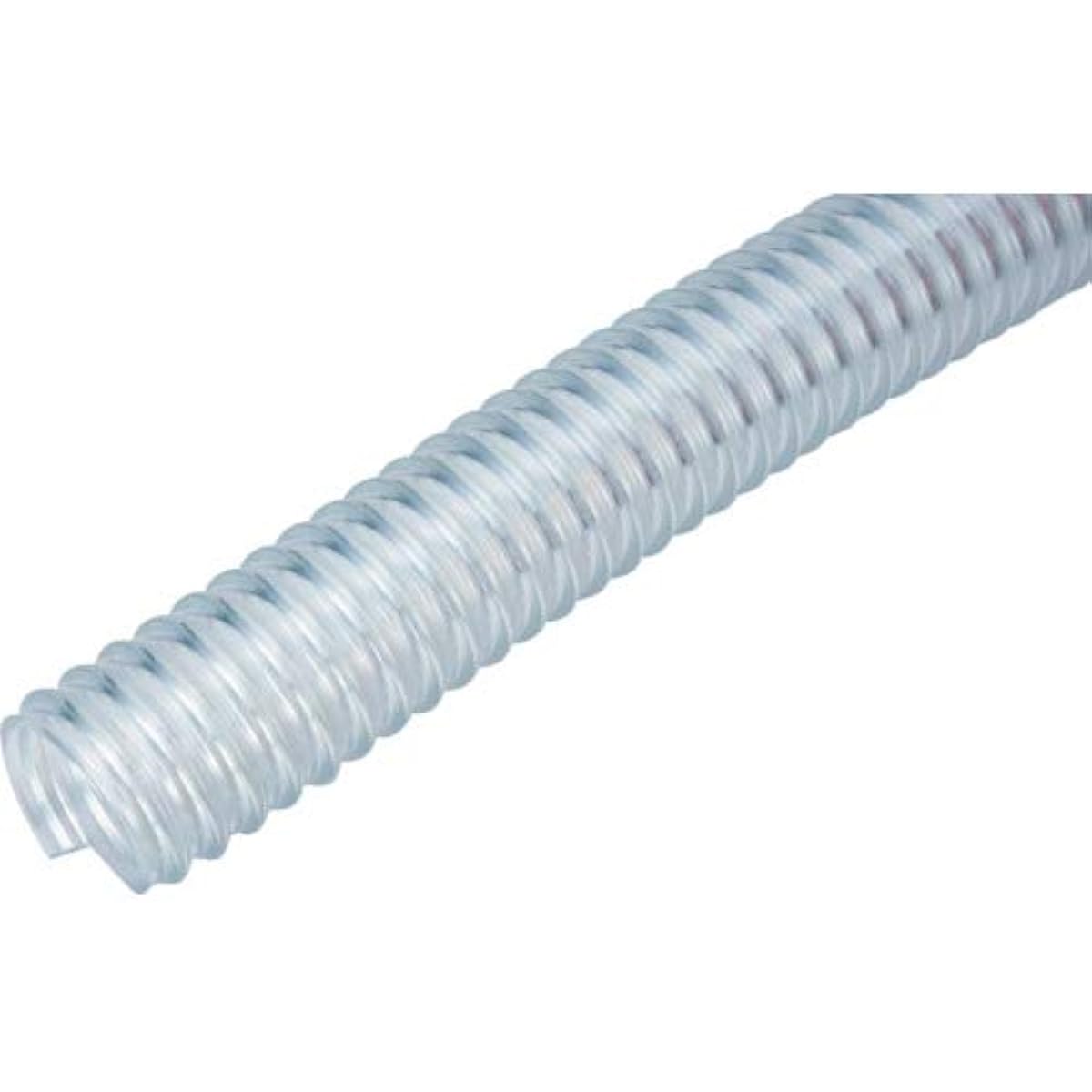

Kanaflex Suction Hose V.S.-A type 50 diameter 5m VS-A-050-5

Length (m): 5 Inner diameter (mm): 50.8 Outer diameter (mm): 59.2 Allowable pressure (normal temperature) (MPa): 0.245 Allowable pressure (normal temperature) (kgf/[[CM2]]): 2.5 ● Allowable bending radius (mm or more): 165●Operating temperature range: -10 to 50℃●Hard vinyl chloride (PVC)●Soft vinyl chloride (PVC)●

[Features]The outer surface is uneven (the inner surface is smooth), so it has excellent flexibility. Since it is completely transparent, you can check the fluid inside. [Application] Although it can be used for both suction and delivery, it is especially suitable for suction. For irrigation. For suction and drainage at industrial and civil engineering sites. [Specifications] Length (m): 5 Inner diameter (mm): 50.8 Outer diameter (mm): 59.2 Allowable pressure (normal temperature) (MPa): 0.245 Allowable pressure (normal temperature) (kgf/[[CM2]]): 2.5 Allowable Bending radius (mm or more): 165 Operating temperature range: -10 to 50℃ [Material/Finish] Hard vinyl chloride (PVC) Soft vinyl chloride (PVC)


Brand: Kanaflex Corporation< br>Product model number: ‎VS-A-050-5
Product size: ‎80 x 80 x 80 cm; 3.6 kg
Accessories: ‎None
Product weight: ‎3.6 Kilograms
