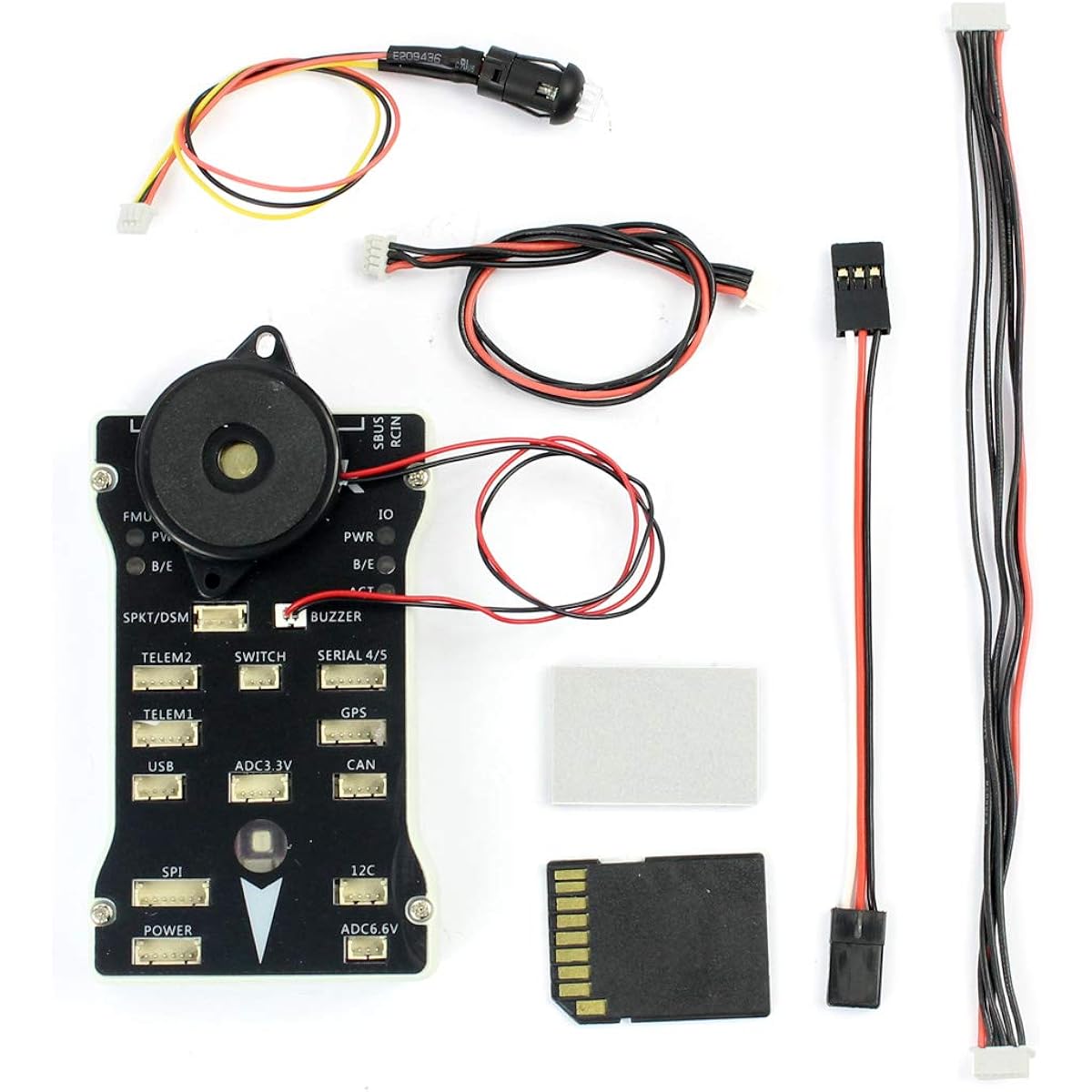

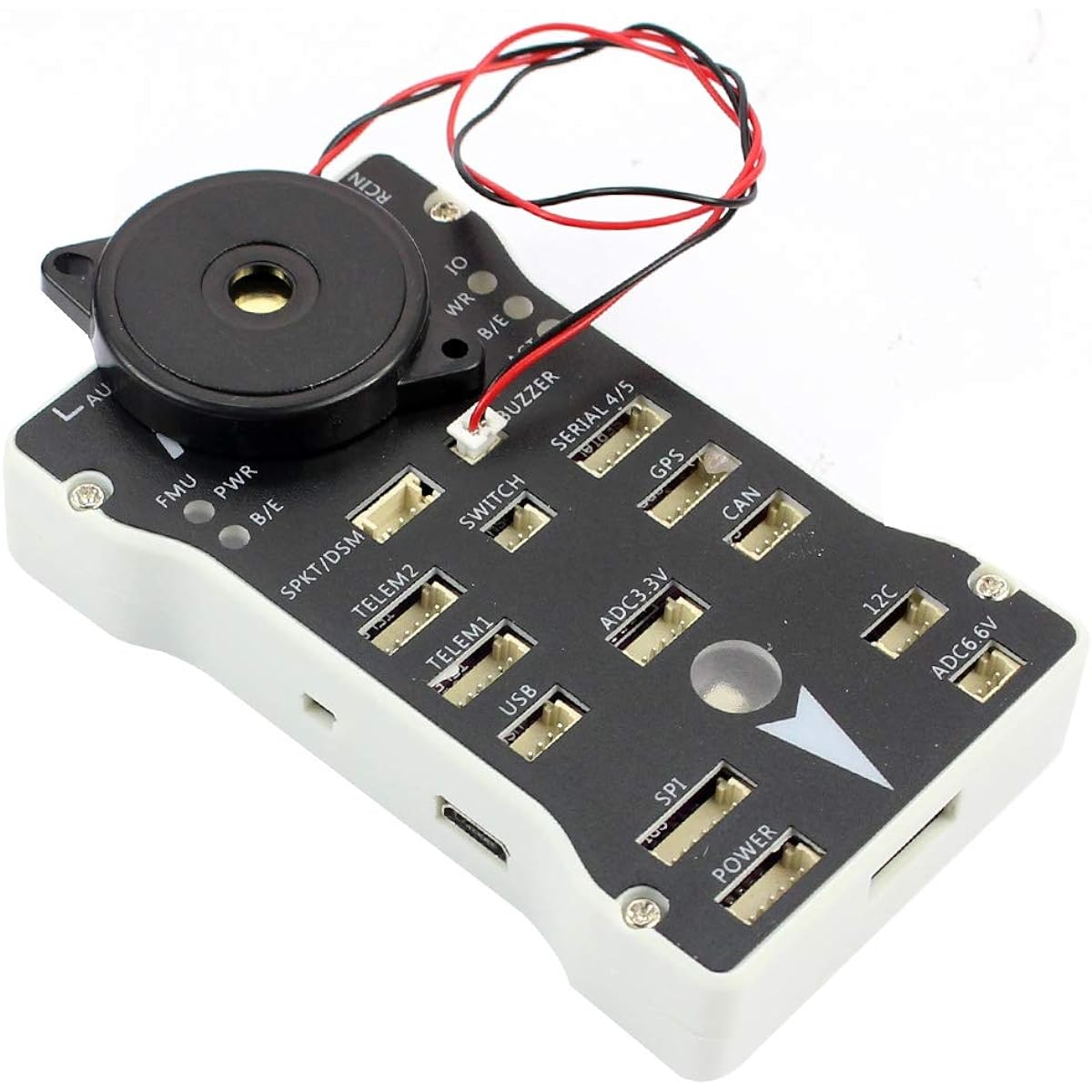

JMT PX4 PIX 2.4.8 32bit Flight Controller Integrated PX4FMU PX4IO Safety Switch Buzzer 1G SD for DIY RC Drone FPV Multirotor
JMT PX4 PIX 2.4.8 32bit Flight Controller Integrated PX4FMU PX4IO Safety Switch Buzzer 1G SD for DIY RC Drone FPV Multirotor
Regular price
$199.00 USD
Regular price
Sale price
$199.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Advanced 32-bit CortexM4 ARM high-performance processor, can run RTOS NuttX real-time operating system 14 * PWM/actuator output Bus interface (UART, I2C, SPI, CAN) Integrated backup power supply and failure backup controller, the main controller can safely switch to backup control Provides automatic and manual modes
Description: - This board is integrated with PX4FMU + PX4IO. - Pixhawk adopts new 32-bit chip and sensor technology. Features: - Advanced 32-bit CortexM4 ARM high-performance processor, can run RTOS NuttX real-time operating system. - 14 * PWM/actuator output. - Bus interface (UART, I2C, SPI, CAN). - Integrated backup power supply and failure backup controller, the main controller can safely switch to backup control. - Provides automatic and manual modes. - Provides redundant power input and failure transmission function. 【Color LED Lamp】 - Multi-tone buzzer interface. - Micro SD for recording flight data. Processor: - STM32F427 Cortex M4 with 32-bit 2M Flash memory, equipped with hardware floating-point processing unit - - Main frequency: 256K, 168MHZ RAM - 32-bit STM32F103 backup co-processor Sensors: - L3GD20 3-axis digital 16-bit gyroscope - LSM303D 3-axis 14-bit accelerometer/magnetometer - MPU6000 6-axis accelerometer/magnetometer - MS5611 high precision barometer Interfaces: - 5 * UART, 1 * compatible high voltage, 2 * hardware flow control - 2 * CAN - DSM/DSM2/DSM-X satellite receiver compatible input - Futaba SBUS compatible input/output - PPM signal input - RSSI (PWM or voltage) input - I2C - SPI - 3.3 and 6.6VADC input - External USB MICRO interface Package Includes: - 1 x 2.4.8 Pixhawk main control - 1 x Flight Control Shell - 1 x Safety Switch - 1 x Buzzer - 1 x 6 Pin to 6 Pin Line - 1 x 4 Pin to 4 Pin Line - 1 x 3 Pin Dupont Line - 1 x 1G SD Card
Brand: JMT
Compatible Models: Drones
Product Weight: 60g
Description: - This board is integrated with PX4FMU + PX4IO. - Pixhawk adopts new 32-bit chip and sensor technology. Features: - Advanced 32-bit CortexM4 ARM high-performance processor, can run RTOS NuttX real-time operating system. - 14 * PWM/actuator output. - Bus interface (UART, I2C, SPI, CAN). - Integrated backup power supply and failure backup controller, the main controller can safely switch to backup control. - Provides automatic and manual modes. - Provides redundant power input and failure transmission function. 【Color LED Lamp】 - Multi-tone buzzer interface. - Micro SD for recording flight data. Processor: - STM32F427 Cortex M4 with 32-bit 2M Flash memory, equipped with hardware floating-point processing unit - - Main frequency: 256K, 168MHZ RAM - 32-bit STM32F103 backup co-processor Sensors: - L3GD20 3-axis digital 16-bit gyroscope - LSM303D 3-axis 14-bit accelerometer/magnetometer - MPU6000 6-axis accelerometer/magnetometer - MS5611 high precision barometer Interfaces: - 5 * UART, 1 * compatible high voltage, 2 * hardware flow control - 2 * CAN - DSM/DSM2/DSM-X satellite receiver compatible input - Futaba SBUS compatible input/output - PPM signal input - RSSI (PWM or voltage) input - I2C - SPI - 3.3 and 6.6VADC input - External USB MICRO interface Package Includes: - 1 x 2.4.8 Pixhawk main control - 1 x Flight Control Shell - 1 x Safety Switch - 1 x Buzzer - 1 x 6 Pin to 6 Pin Line - 1 x 4 Pin to 4 Pin Line - 1 x 3 Pin Dupont Line - 1 x 1G SD Card
Brand: JMT
Compatible Models: Drones
Product Weight: 60g
