Jimbo Denki Contester Outer diameter approx. 105 x 40 x 20 mm JCT-2

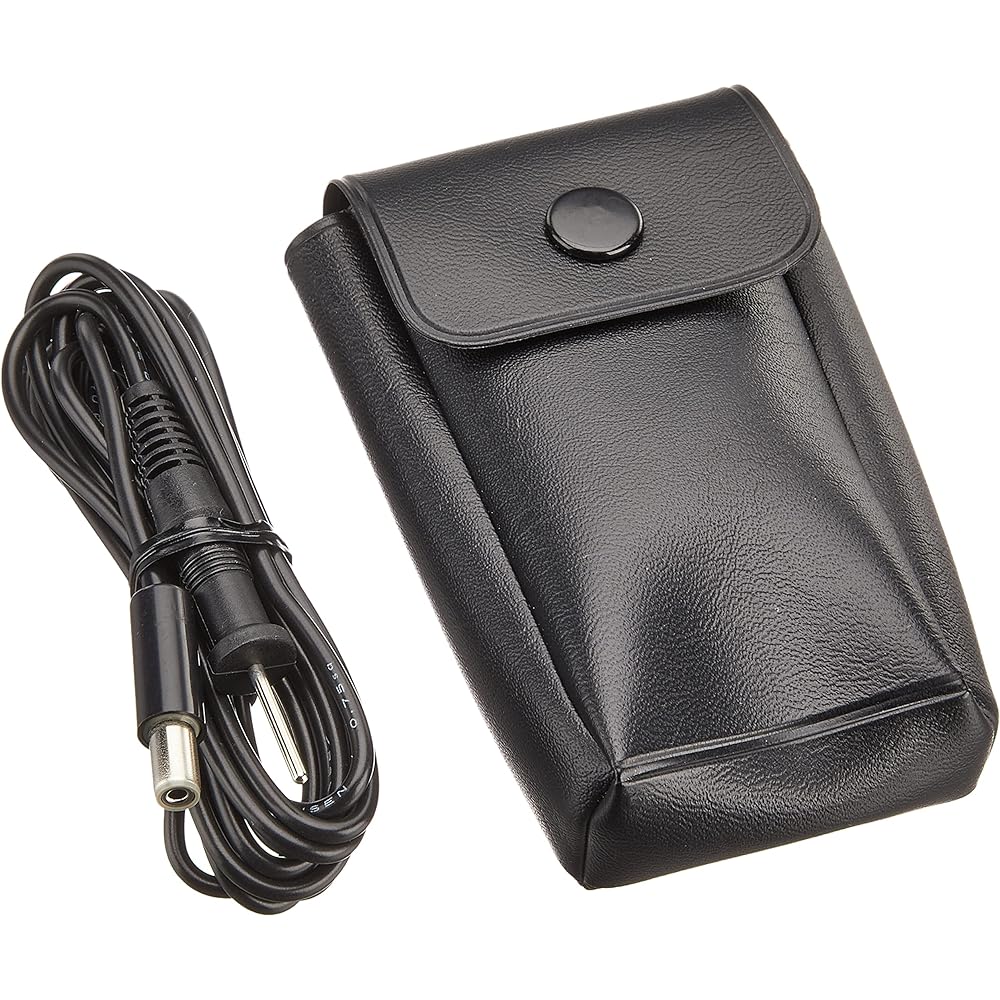

Storage outer diameter: 90 x 40 x 20 (mm) Outer diameter: Approx. 105 x 40 x 20 (mm) Weight: Approx. 60 g Applicable electrical circuit: Low voltage electrical circuit with ground voltage of 150 V or less Applicable electrical method: Single phase 2 wire 100 V, single Phase 3-wire type 100/200V, 50/60Hz Operating ambient temperature: 0 to 40℃ Insulation resistance: 100MΩ or more (between blade and case at 500VDC) Withstand voltage: AC1500V/1 minute (between the blade and the case, excluding the touch board) Accessories: Instruction manual, soft case, tester lead wire Specifications: For 100V outlet only Increase the number of items displayed

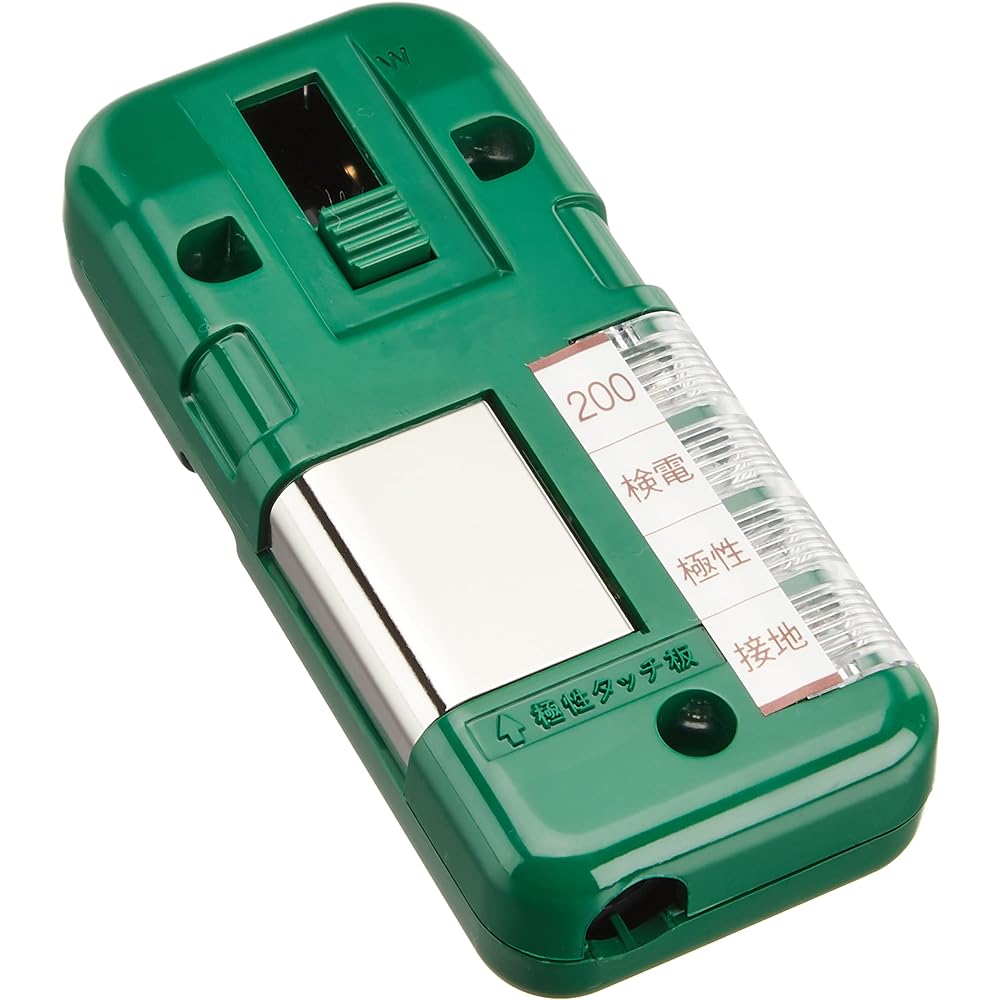

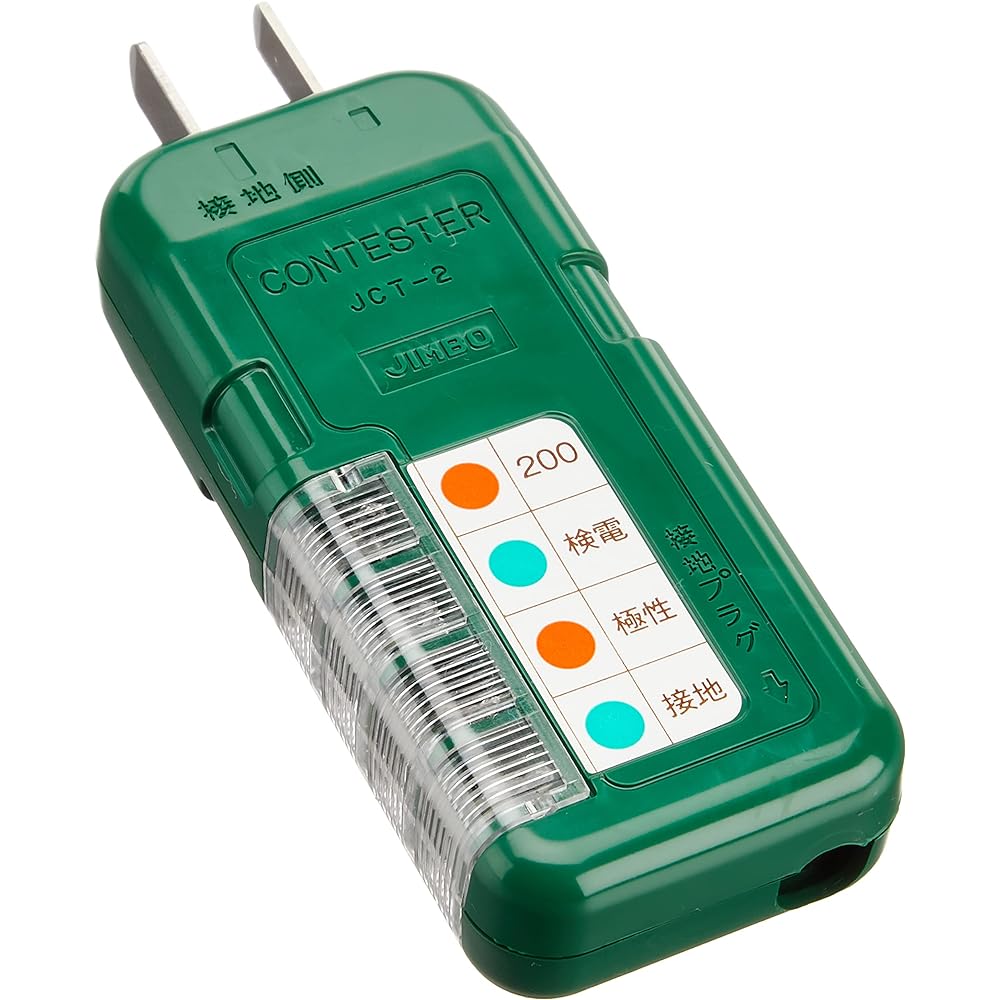

Contester JCT-2 ■Features You can easily and reliably check the voltage and polarity of 100V outlets with this one JCT-2 Contester Thin/lightweight suitable for current testing (voltage testing) and polarity testing (L-N). The tester plug blade can be stored in the main body, making it easy to understand the status of the outlet circuit by lighting up the built-in neon lamp, which is not bulky.


Brand: Jinbo Denki
Product model number: ‎JCT-2
Package size: ‎10.5 x 6.4 x 3.4 cm; 110 g
Power supply: ‎AC
Laser class: ‎Lightweight design
Accessories: ‎None
Batteries included: ‎No
Product weight: ‎110 g
