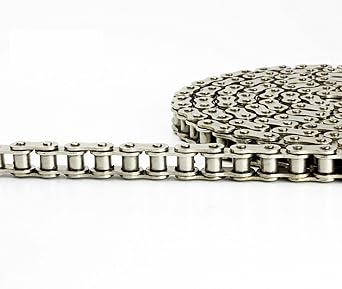

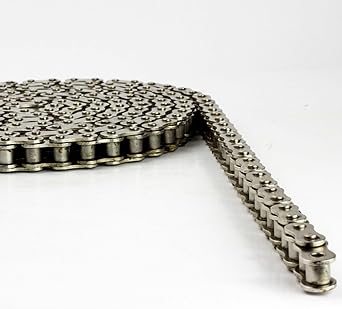

Jeremywell 41np Nickel plating roller chain 6 feet Connection Link with 1 piece
Jeremywell 41np Nickel plating roller chain 6 feet Connection Link with 1 piece
Regular price
$117.00 USD
Regular price
Sale price
$117.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
ASNI #41NP Nickel Plated Industrial Roller Chain Pitch Size: 0.500". Length: 6 feet. Average tensile strength: 1500 lbs. Weight per foot: 0.25 lbs.

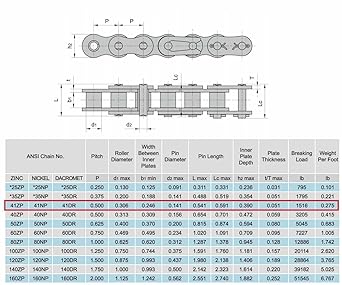

#41NP Nickel Plated Chain 6' with 1 Connecting Link Corrosion Resistant Pitch Size: 0.500" Roller diameter: 0.306 inch. Width between inner plates: 0.246" Pin diameter: 0.141" Pin Length L Max: 0.541" Pin Length Lc Max: 0.591 inch. Inner plate depth: 0.390" Plate Thickness: 0.051" Average tensile strength: 1500 lbs. Material: Carbon steel with nickel-plated coating. Length: 6 feet. Weight per foot: 0.25 lbs. All of our chain products go through rigorous processes for the highest quality. This includes heat treatment to ensure optimal product life and toughness of all component parts. Solid hardened and shot peened precision rollers are standard on most of our chains. The bushings provide a smooth roller bearing effect, reducing shock loads as the chain engages the sprocket teeth. During chain assembly, all chain components are oriented to ensure pins, bushings and side plates are correctly positioned for optimal chain strength and long life. The assembled chain is soaked in hot lubricant. This lubricant and the process of applying it significantly increases the service life of the chain and provides further protection from environmental influences. All of our chains come pre-installed at the factory. The chain is designed to support and maintain the expected loads during use. This helps align the chain parts and minimizes initial elongation. This greatly extends the life of the chain. All of our chains are ISO 9001:2000 QM certified through ISO 14001 (documenting the sustainability and environmental compatibility of production and waste treatment processes) and meet the automotive industry's ISO/TS 16949 quality requirements.
Manufacturer: Jeremywell
Part number: 41-1NP-6FT
Item weight: 839 g
Product size: 12.7 x 12.7 x 2.54 cm; 839.14 g
Material: Carbon Steel
Teeth Per Inch: 0.5 inch
Batteries included: No
Batteries used: No
Product dimensions (Length x Width x Height): 12.7 x 12.7 x 2.5cm
#41NP Nickel Plated Chain 6' with 1 Connecting Link Corrosion Resistant Pitch Size: 0.500" Roller diameter: 0.306 inch. Width between inner plates: 0.246" Pin diameter: 0.141" Pin Length L Max: 0.541" Pin Length Lc Max: 0.591 inch. Inner plate depth: 0.390" Plate Thickness: 0.051" Average tensile strength: 1500 lbs. Material: Carbon steel with nickel-plated coating. Length: 6 feet. Weight per foot: 0.25 lbs. All of our chain products go through rigorous processes for the highest quality. This includes heat treatment to ensure optimal product life and toughness of all component parts. Solid hardened and shot peened precision rollers are standard on most of our chains. The bushings provide a smooth roller bearing effect, reducing shock loads as the chain engages the sprocket teeth. During chain assembly, all chain components are oriented to ensure pins, bushings and side plates are correctly positioned for optimal chain strength and long life. The assembled chain is soaked in hot lubricant. This lubricant and the process of applying it significantly increases the service life of the chain and provides further protection from environmental influences. All of our chains come pre-installed at the factory. The chain is designed to support and maintain the expected loads during use. This helps align the chain parts and minimizes initial elongation. This greatly extends the life of the chain. All of our chains are ISO 9001:2000 QM certified through ISO 14001 (documenting the sustainability and environmental compatibility of production and waste treatment processes) and meet the automotive industry's ISO/TS 16949 quality requirements.
Manufacturer: Jeremywell
Part number: 41-1NP-6FT
Item weight: 839 g
Product size: 12.7 x 12.7 x 2.54 cm; 839.14 g
Material: Carbon Steel
Teeth Per Inch: 0.5 inch
Batteries included: No
Batteries used: No
Product dimensions (Length x Width x Height): 12.7 x 12.7 x 2.5cm
