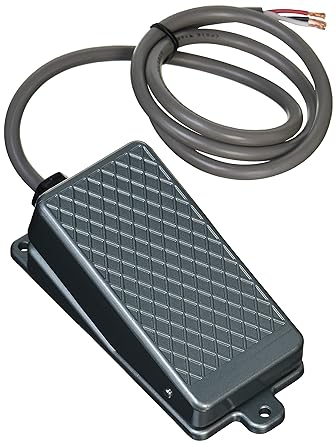

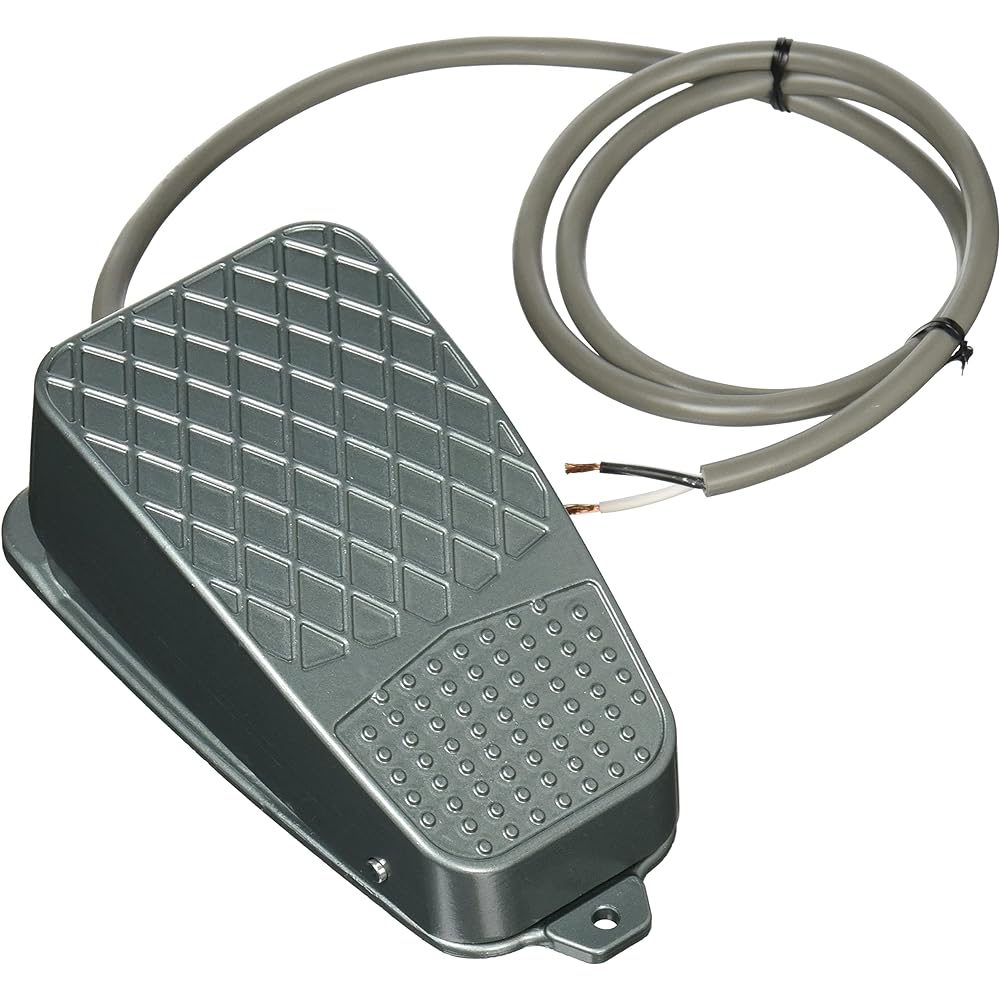

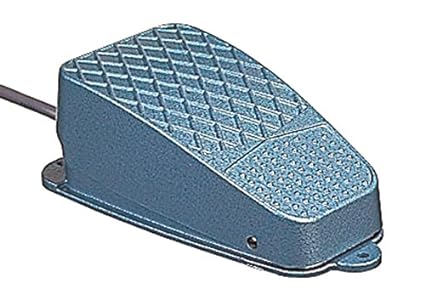

JAPPY foot switch (former Kasuga Denki KF1H equivalent product) standard type holding 1a contact JF1H

Material: Aluminum alloy die-casting/Painting: Metallic/Mass: 480g/Contact configuration: 1a/Operation type: Alternate type Protection structure: IP30/Using temperature: -5 to 40℃ (no freezing)/Using humidity: 85 %RH or less Rating: AC250V 6A/Insulation resistance: 5MΩ or more/Contact resistance: 150mΩ or less Withstand voltage: AC1500V/min/Cable: VCTF 2 cores x 0.75mm2 x 1000mm Suitable for various machine tools, woodworking machines, equipment, testing equipment, etc. Can be used/Alternate type general-purpose foot switch ideal for continuous energization/Standard type (holding type) with emphasis on ease of use and robustness

●Standard type (holding type) with emphasis on ease of use and robustness


Manufacturer: ‎JAPPY
Part number: ‎JF1H
Product weight: ‎540 g
Packaging Size: 19.5 x 16.5 x 12.7 cm; 540 g
Style: 1A contact
Pattern: Standard
Switch style: Foot switch
Accessories: Instruction manual
Battery usage: ‎No
