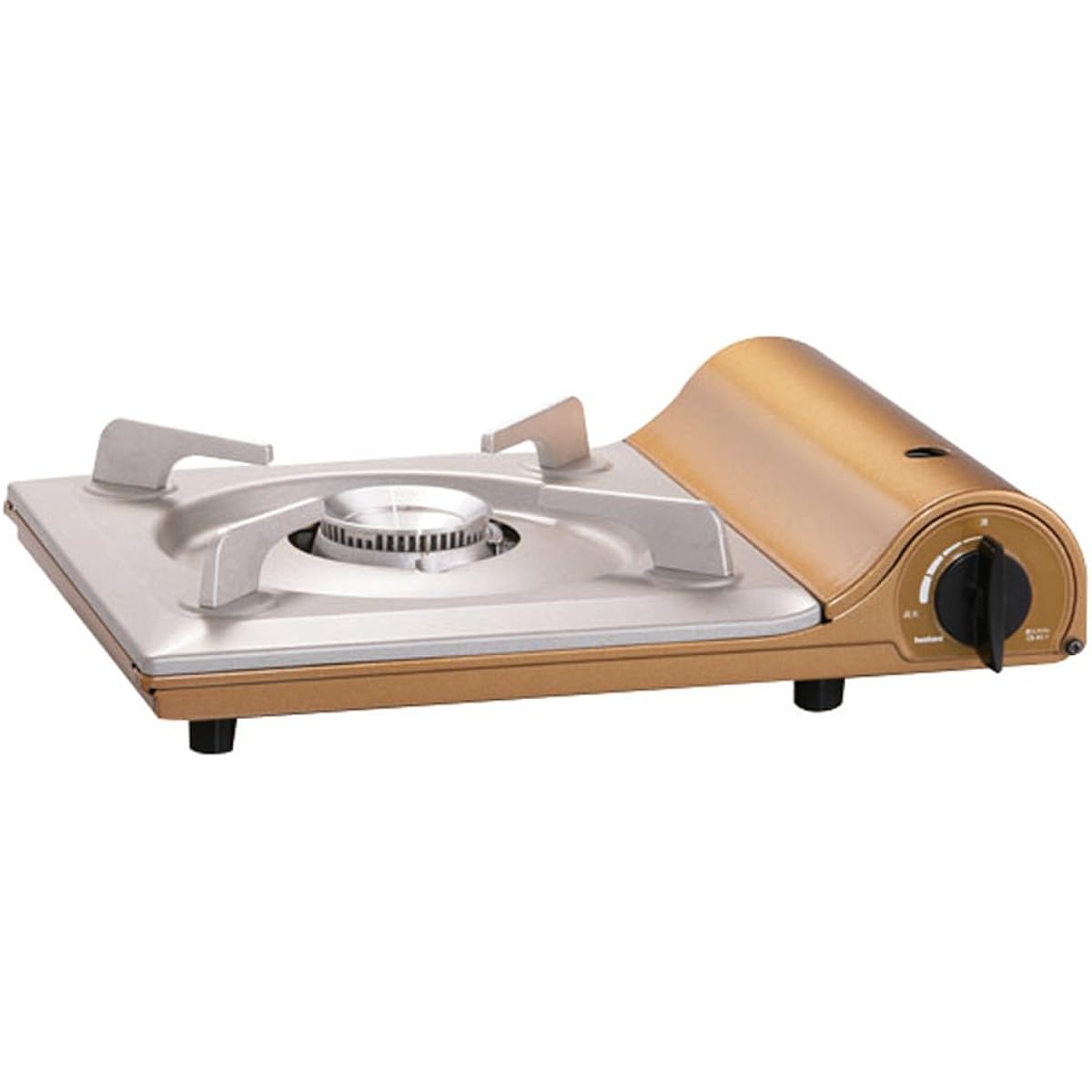

Iwatani Cassette Fu Master Slim [Thin stove/Height 74mm] CB-AS-1

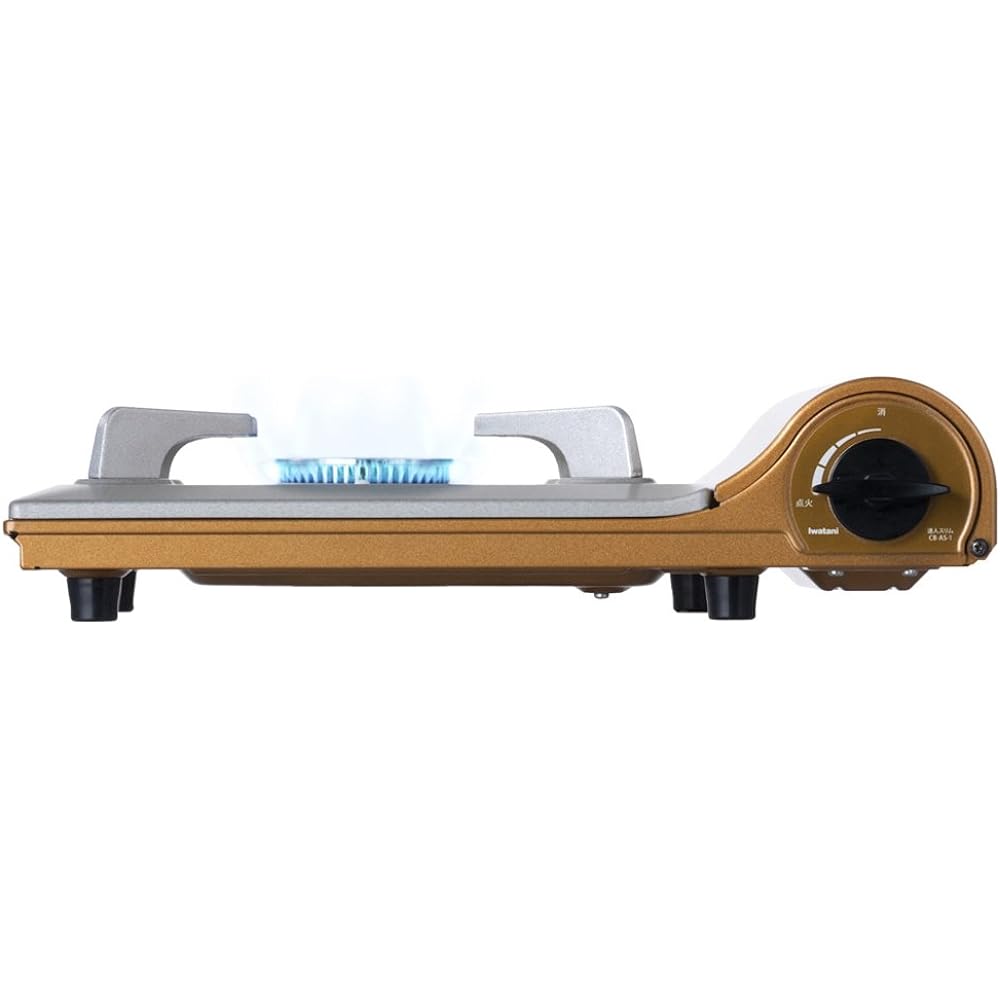

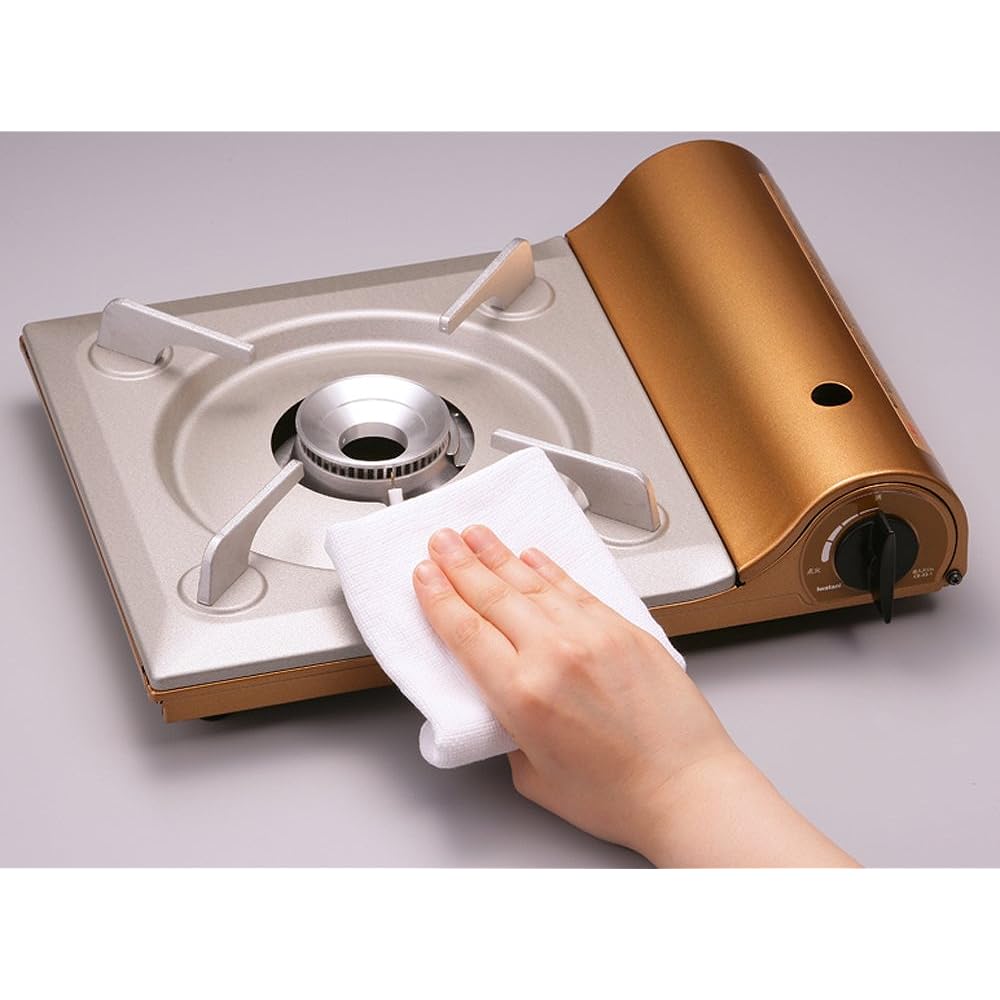

[Wasteful fire suppression, vertical flame burner] The flame outlet ``flame mouth'' has been made vertically longer than conventional products, making it difficult for the flame to spread outward. Wasted fire spilling from the bottom of the pot is suppressed, leading to energy savings. [Thin type! Gotoku Height 74mm] The height from the table surface to the top position is only 74mm. This is the thinnest stove in the Iwatani Cassette Fu series. "Of course, it's easy to cook and eat!" [Easy-to-turn ignition knob] From an ergonomic standpoint, the ignition knob has been designed to be easier to grip, easier to turn, and safer. [Heat panel method that does not reduce heat power and consumes gas without wasting gas] Appliances that use cassette cylinders tend to lose heat power over time. This is because combustion lowers the temperature of the cylinder, which worsens the vaporization of the gas. To compensate for this, it is equipped with a "heat panel" that warms the cylinder appropriately to maintain the firepower of the appliance. This allows you to conserve heat until the end and consume gas without wasting it. [Easy to use with attention to detail] Fluorine coated top plate that is easy to clean & top plate that can be installed from either side. [Also for emergencies and disaster countermeasures] Slim and convenient to carry, it is perfect for hot pots and grilled meat, and many people purchase it for emergencies and disaster countermeasures, so it can be used in case something happens. [Accessories] An accessory series that expands the ways you can enjoy yakiniku plates, teppanyaki plates, yakiniku grills, etc. [Manufacturer model number] CB-AS-1, [Body size] Width 338 x Depth 272 x Height 84mm, [Product weight] Approx. 1.2kg, [Country of manufacture] Japan [Material] [Body] Steel plate (electrostatic coating), [Top plate] Fluorine coated steel plate, [Top] Heat-resistant aluminum die-casting, [Burner] Heat-resistant aluminum die-casting, [Appliance knob] ABS resin, [Usable pot size] No. 9 clay pot as a guide [Specifications] [Maximum calorific value ]3.3kW(2,800kcal/h), [Continuous combustion time] Approx. 70 minutes, [Ignition method] Piezoelectric ignition method, [Safety device] Pressure sensing safety device, etc., [Container attachment/detachment method] Magnet method, [Used gas] Iwatani Cassette Gas Cassette gas is sold separately

●Body size: 338 (width) x 272 (depth) x 84 (height) mm ●Weight: approx. 1.2kg ●Color: bronze gold ●Material: Body: Steel plate (electrostatic coating), Top plate: Fluorine coated steel plate, like: heat-resistant aluminum die-casting, burner: heat-resistant aluminum die-casting, appliance knob: heat-resistant ABS resin ●Gas consumption: approx. 236 g/h *1 ● Continuous combustion time: approx. 70 minutes *2 ● Ignition method: piezoelectric Ignition method ● Safety device/pressure sensing safety device, etc. ● Container attachment/removal method/Magnetic method ● Gas used/Iwatani cassette gas ●*1 Gas consumption for 30 minutes is converted to 1 hour when the temperature is 20 to 25 degrees Celsius● *2Actual measurement of how long it takes to use up the cassette gas in continuous high flame combustion at a temperature of 20 to 25 degrees Celsius Height from the table surface of the thin stove to the top of the trivet, which is only 74mm The thinnest stove in the Iwatani cassette fu series (only 74 mm) (as of September 2012) Easily suppresses fire when cooking or eating, vertical flame burner with 3.3kW (2800kcal/h) vertical combustion flame Vertical flame outlet burner with a longer vertical flame outlet than conventional products.If the flame outlet is longer vertically, the flame will come out upwards and will be difficult to spread outside, suppressing wasteful fire spilling from the bottom of the pot. The top plate is made of high-performance pre-coated fluorine steel and has excellent stain resistance against a variety of stains. Easy to wipe off dirt Other product details [Adopts a heat panel method] Adopts a heat panel method that allows almost all gas to be consumed without reducing the heat until the end.Even while using cassette gas, the cylinder is heated appropriately to prevent a drop in gas pressure. Suppression As a result, we succeeded in maintaining strong firepower to the end and consuming the fuel inside to the end [Adopts Iwatani's unique magnetic method] Adopts Iwatani's unique magnetic method that thoroughly pursues easy installation and danger prevention [ Pressure sensing device: Equipped with a pressure sensing device that automatically shuts off the gas when the cylinder temperature rises.


Manufacturer: Iwatani
Model number: CB-AS-1
Package size: 35.2 x 28.4 x 8.9 cm
Material: [Body] Steel plate (electrostatic coating), [Top plate] Pre-coated fluorine steel plate, [Burner] Heat-resistant aluminum die-casting, [Appliance plug knob] ABS resin
Color: Bronze gold
Others Features: Corrosion resistant, heat resistant
Power supply: Gas type
Packaging weight: 1.53 kg
Batteries used: ‎No
Batteries included: ‎No
Brand name: ‎Iwatani
Product weight: ‎1395 grams
