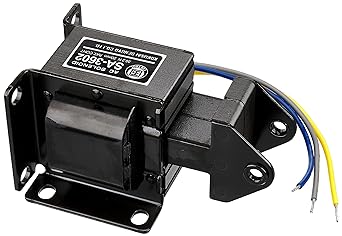

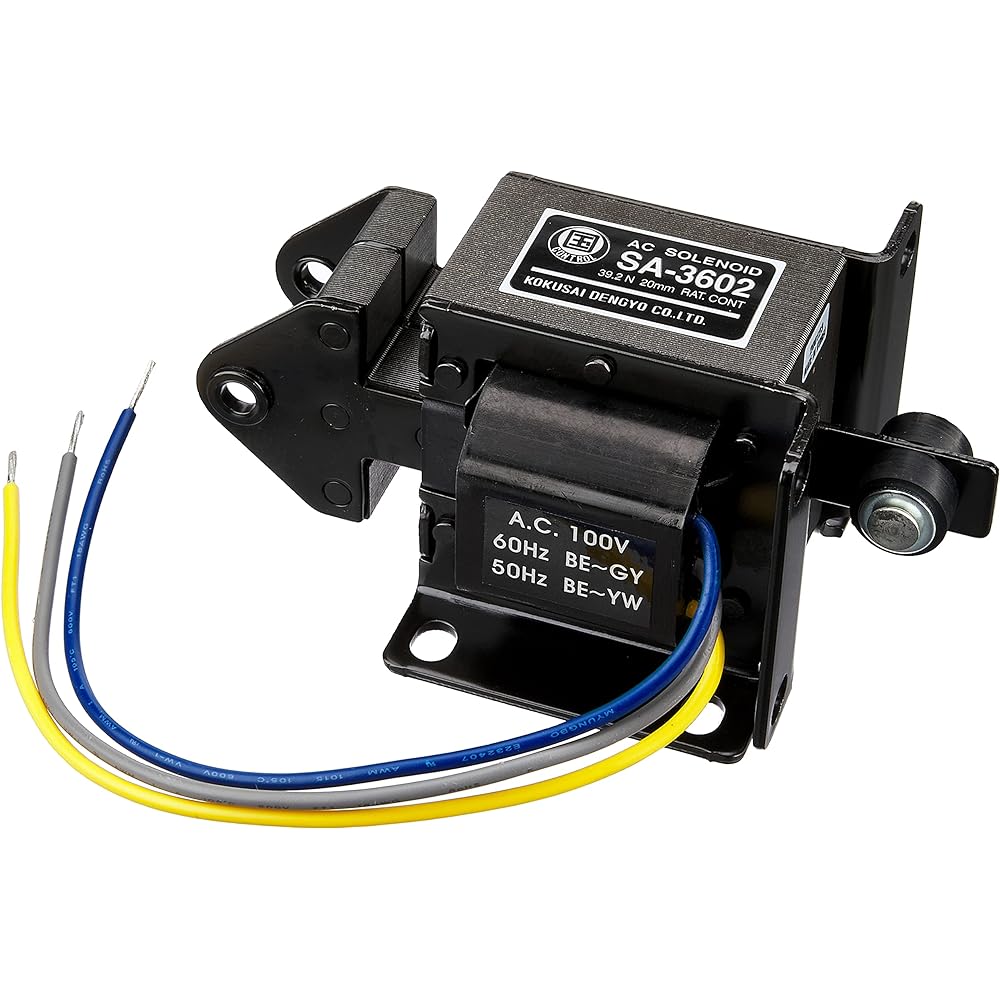

Kokusai Dengyo AC Solenoid SA-3602 100V Dual-use type Suction force 39.2N Stroke 20mm
Kokusai Dengyo AC Solenoid SA-3602 100V Dual-use type Suction force 39.2N Stroke 20mm
Regular price
$56.00 USD
Regular price
Sale price
$56.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Rated frequency: 50 or 60Hz (3 leads)
Durability: 300,000 times (according to JIS C4554 durability test)
Insulation type: Equivalent to class B insulation
Insulation resistance: DC500V 100MΩ or more
>Withstand voltage: AC2000V for 1 minute
Coil temperature rise: 85℃ or less
Movable core mass: (SA-3602) 350g
Total mass: (SA-3602) 1175g
Product explanation Plunger type made of laminated silicon steel plates. The plunger guide has a structure integrated with a coil bobbin molded from nylon resin, and has highly reliable quality with greatly improved electrical and mechanical properties.
Manufacturer: Kokusai Dengyo
Part number: SA-3602 100V
Product weight: 1 Kilograms
Package size: 15 x 15 x 15 cm; 1 kg
Uses batteries: No
Durability: 300,000 times (according to JIS C4554 durability test)
Insulation type: Equivalent to class B insulation
Insulation resistance: DC500V 100MΩ or more
>Withstand voltage: AC2000V for 1 minute
Coil temperature rise: 85℃ or less
Movable core mass: (SA-3602) 350g
Total mass: (SA-3602) 1175g
Product explanation Plunger type made of laminated silicon steel plates. The plunger guide has a structure integrated with a coil bobbin molded from nylon resin, and has highly reliable quality with greatly improved electrical and mechanical properties.
Manufacturer: Kokusai Dengyo
Part number: SA-3602 100V
Product weight: 1 Kilograms
Package size: 15 x 15 x 15 cm; 1 kg
Uses batteries: No
