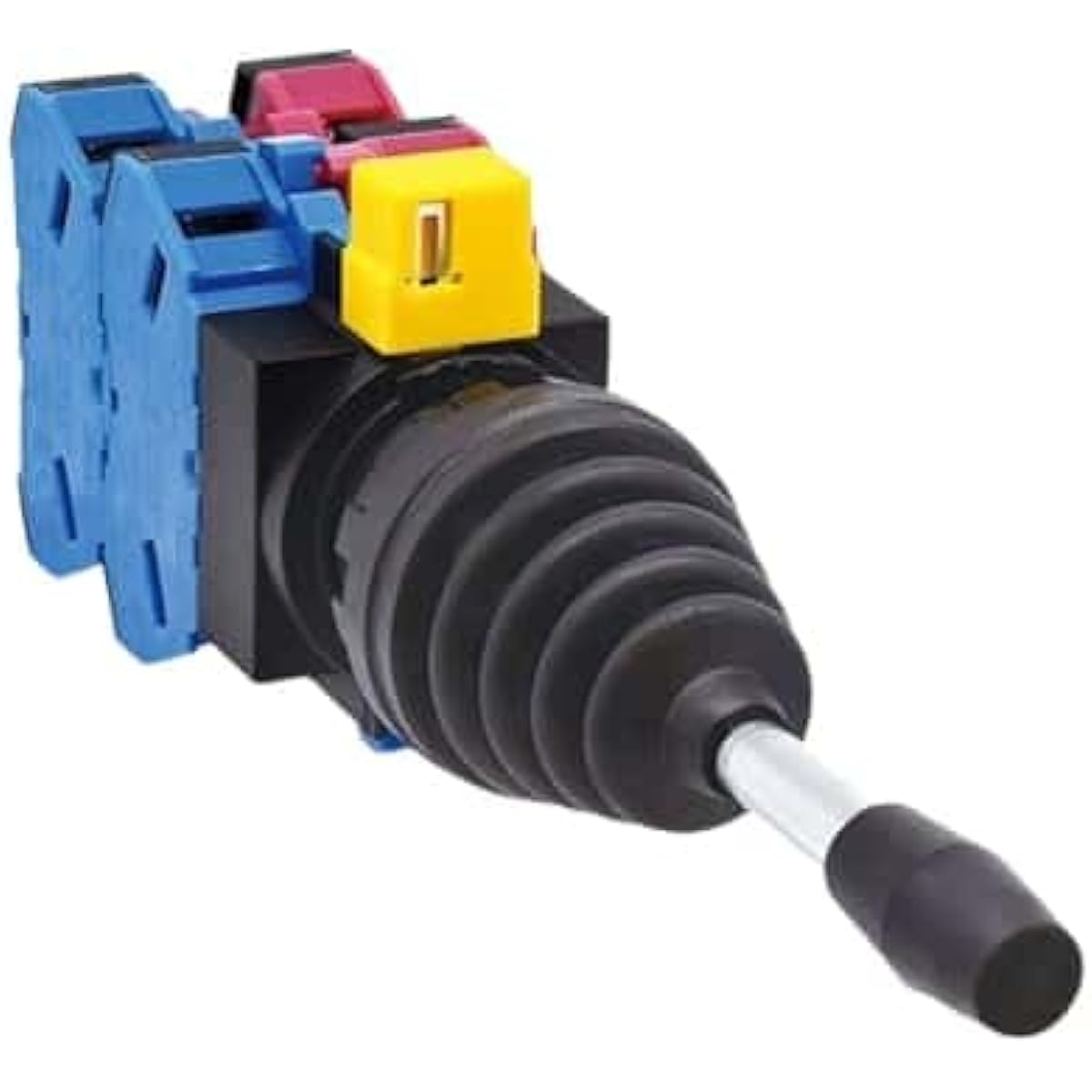

IDEC Monolever Switch HW Series φ22 HW1M-1202-21N4

Product series: HW series/Body shape: Separate type/RoHS compliance status: Contains no Operation feel: Heavy/Mounting hole dimensions Mounting shape: φ22 Operation part shape (1): Lever switch/Contact configuration: 2a1b/Contact material : Silver contact Terminal shape: Screw (M3.5)/Protection structure: IP65

Integrated terminal cover provides ultimate safety finger protection. Rolling contact, rake processing contact that self-cleans the contact area. Protective structure [IP65] that shuts out water and oil intrusion. (However, the 2-point pushbutton switch is IP40) Also available is a 2-point pushbutton switch that allows three functions, including two independently operating pushbutton switches and an indicator light, to be installed in one hole. Equipped with various voltages to meet worldwide needs. UL, CSA certified product, and EN standard compliant product.


Manufacturer: IDEC
Part number: HW1M-1202-21N4
Product weight: 90 g
Package size: 9 x 5 x 4 cm; 90 g
Style: ‎Contact configuration: 2a1b
Pattern: ‎HW1M-1202-21N4
Battery usage: ‎No
