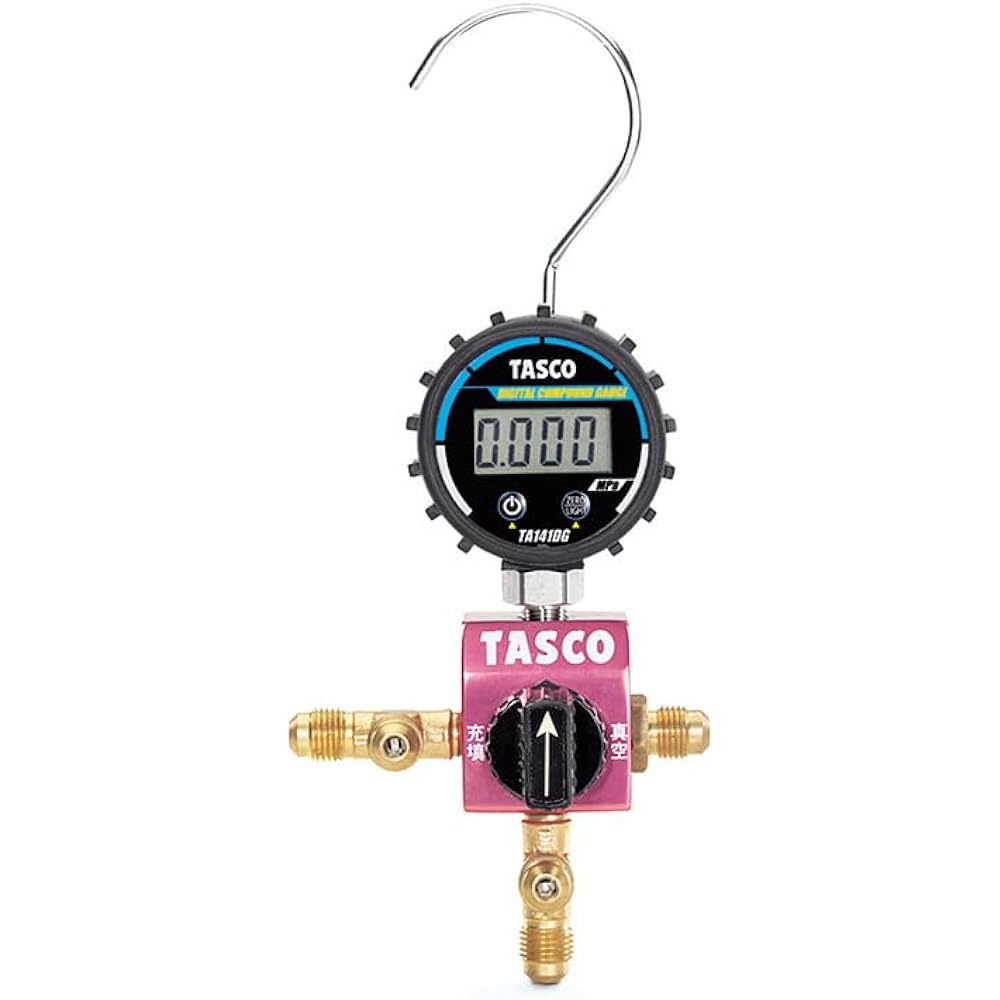

Ichinen TASCO Manifold Kit Digital Single R410A/R32 Ball Valve Type TA123DG-1

Manifold part number: TA123DG Gauge diameter: 60φ Compound meter: -0.1 to 5.0MPa (TA141DG) Charge hose: 92cm (Blue TA132AF-2, Yellow TA132AF-3) Cooling/heating manifold: Continuous operating pressure during heating The pressure value of the low pressure side pressure gauge is set to a high pressure so that it can be measured. The single manifold is a lightweight, compact, and extremely convenient gauge manifold that can perform everything from vacuuming to refrigerant filling with just one valve operation without changing hoses. Also, since it is a ball valve type valve, it can be opened and closed very easily and reliably.

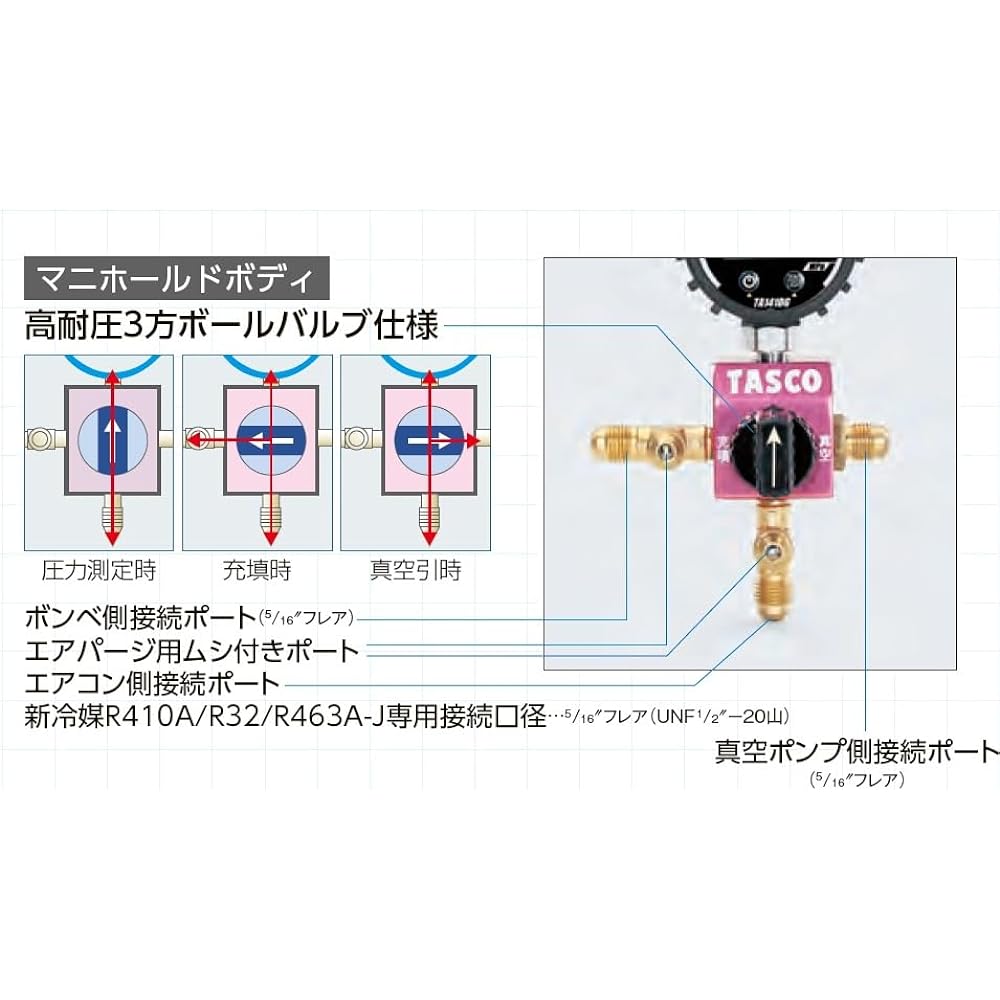

◆Manifold body High pressure 3-way ball valve specifications ◆Pressure gauge/compound gauge High-precision digital compound gauge Large, easy-to-read pressure compound gauge 60φ ABS resin case IP65 phase, etc., dust-proof/splash-proof 3V lithium battery.Can be used for about 2 years with CR2450 Auto power off function (10 minutes) Traceability/certificate of configuration can be obtained (separate fee) Measurement law compliant pressure unit -0.1 to 5.0 MPa (megapascal) Minimum display.0.001 MPa (withstand pressure 10 MPa) Backlight function Display in hard-to-see places It can also be seen clearly with the backlight.


Brand: ‎Ichinen TASCO
Product model number: ‎TA123DG-1
Package size: ‎42 x 28.6 x 10.2 cm; 2.12 kg
Nameplate name: ‎TA123- DG+Hose 92cm
Material: ‎Acrylonitrile Butadiene Styrene (ABS)
Accessories: ‎None
Battery Included: ‎No
Product Weight: ‎2.12 Kilograms
