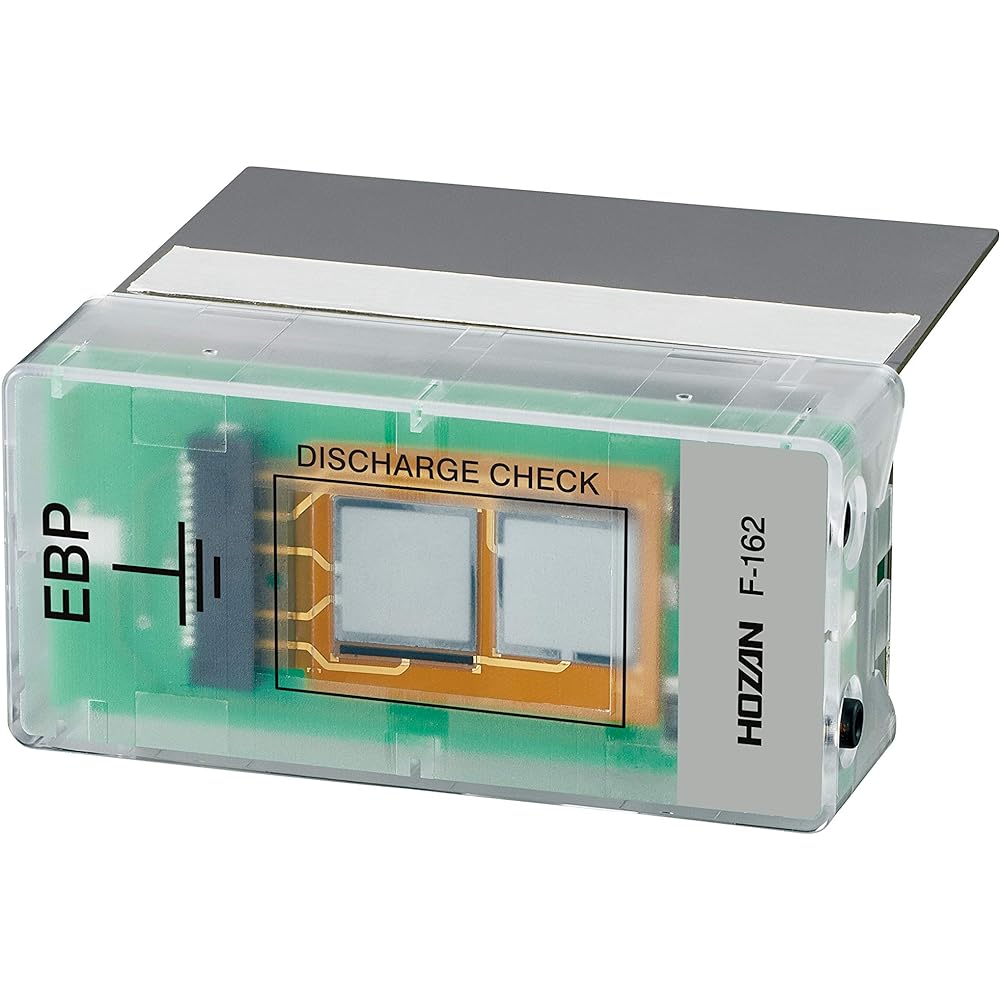

HOZAN Earth Terminal Catches and visualizes static electricity discharge current passing through the terminal F-162

Equipped with static electricity passage display function. Dedicated for static electricity countermeasures. It cannot be used for power ground. F-245 is required to restore display. Static reaction voltage: HBM1000V or more Electrode plate dimensions: 50 x 85 mm 4 ports *(Thread diameter M4) *2 ports are for main lines only. You can connect up to three ground wires from ESD management items. Country of manufacture: Japan

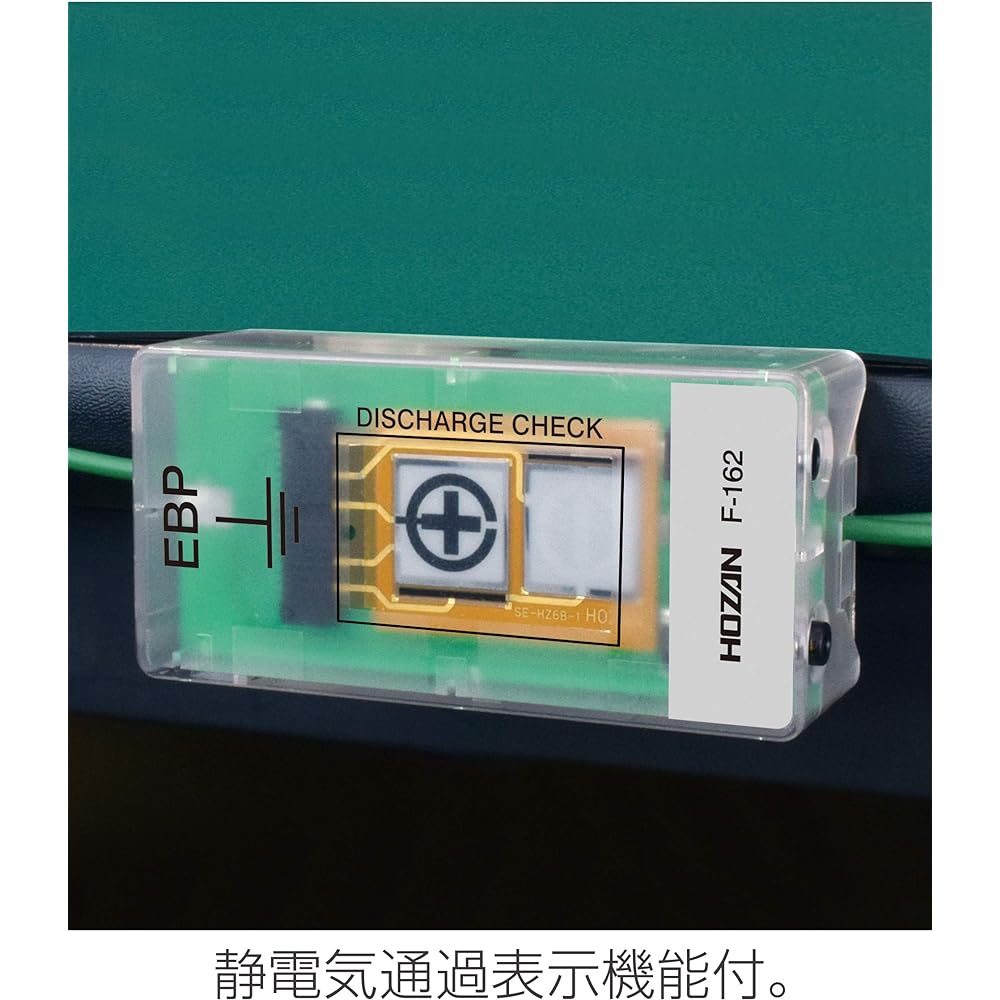

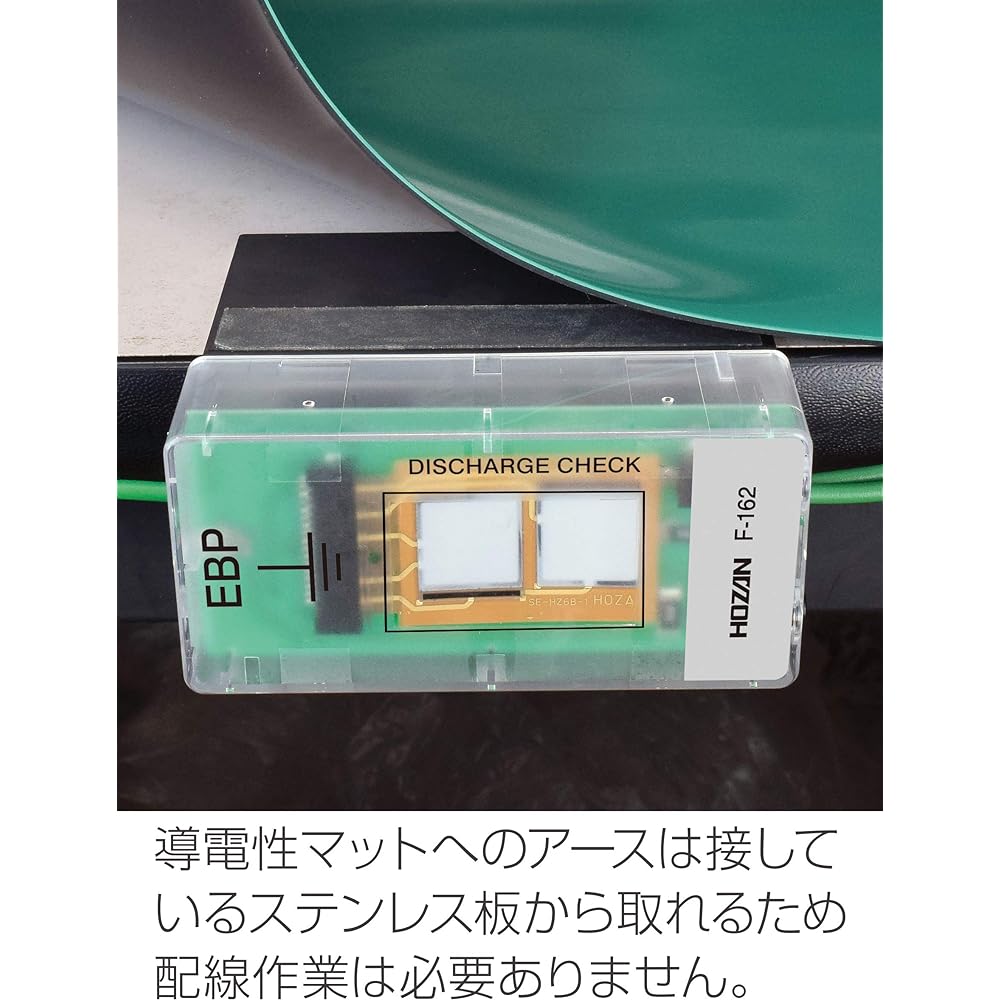

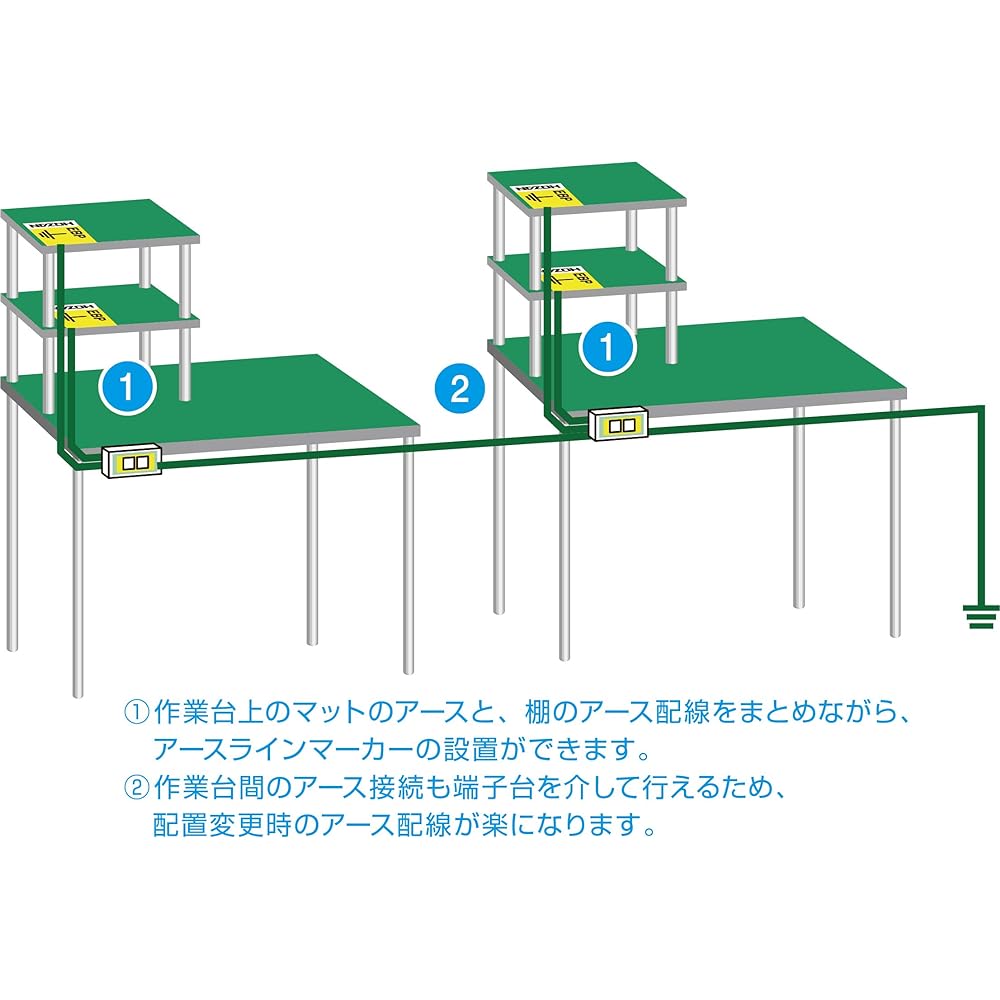

Earth terminal that can be attached directly to conductive mats. Captures and visualizes the discharge current of static electricity that passes through it. A ground line marker is set on a terminal that can be attached directly to a conductive mat. When electrostatic discharge current passes through the terminal, an electrostatic polarity mark will appear. If a failure occurs due to static electricity, this will help you find the cause. The display does not require any power and will maintain its display for several years. When recombining lines, wiring can be done simply by connecting between terminals, simplifying the work.


Brand: ‎HOZAN
Product model number: ‎F-162
Package size: ‎11.8 x 8.8 x 5 cm; 160 g
Last name on nameplate: ‎ 4 terminals plate with static electricity passing indicator
Power supply: ‎crank
Quantity: ‎1
Accessories: ‎None
About warranty: ‎None
Product weight: ‎160 g
