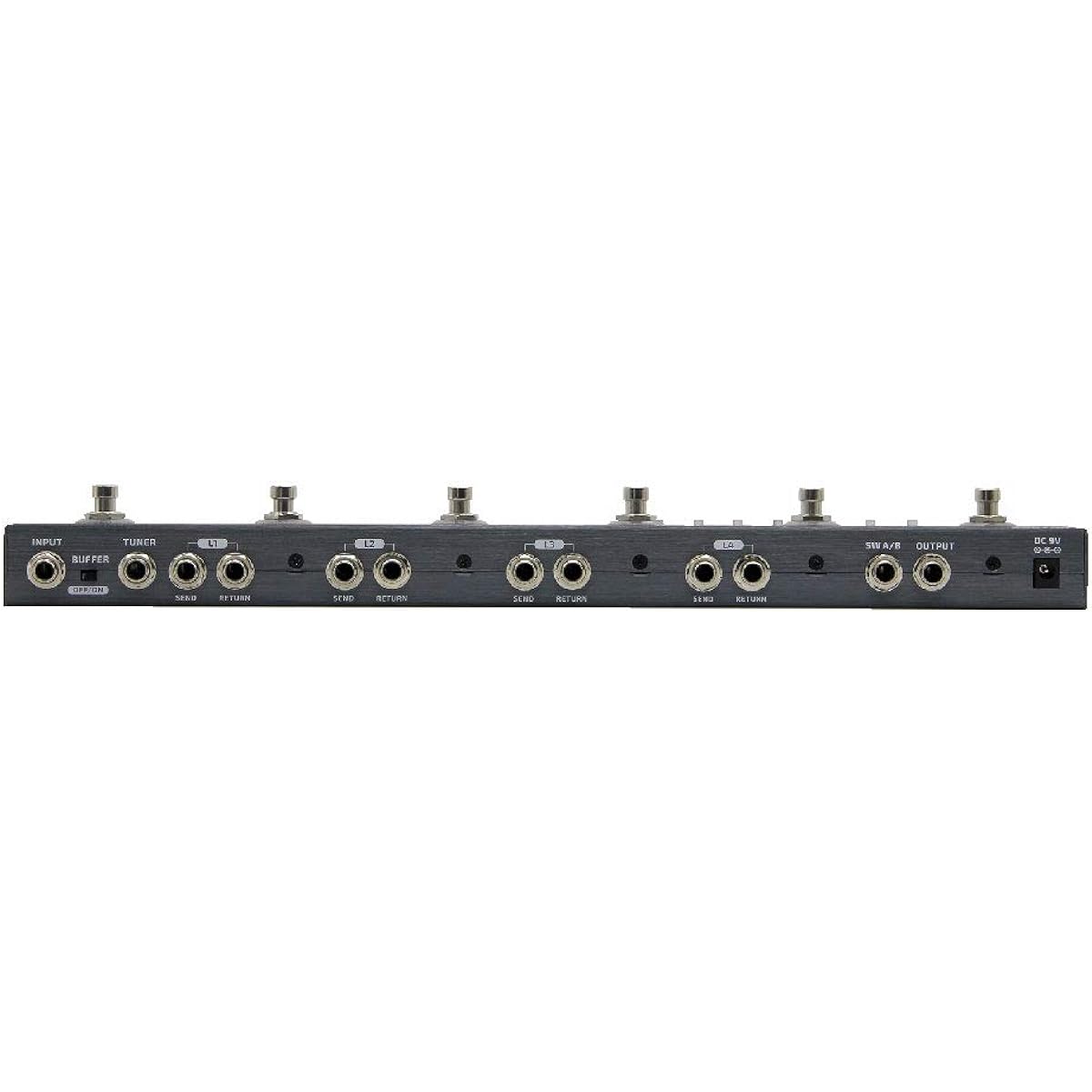

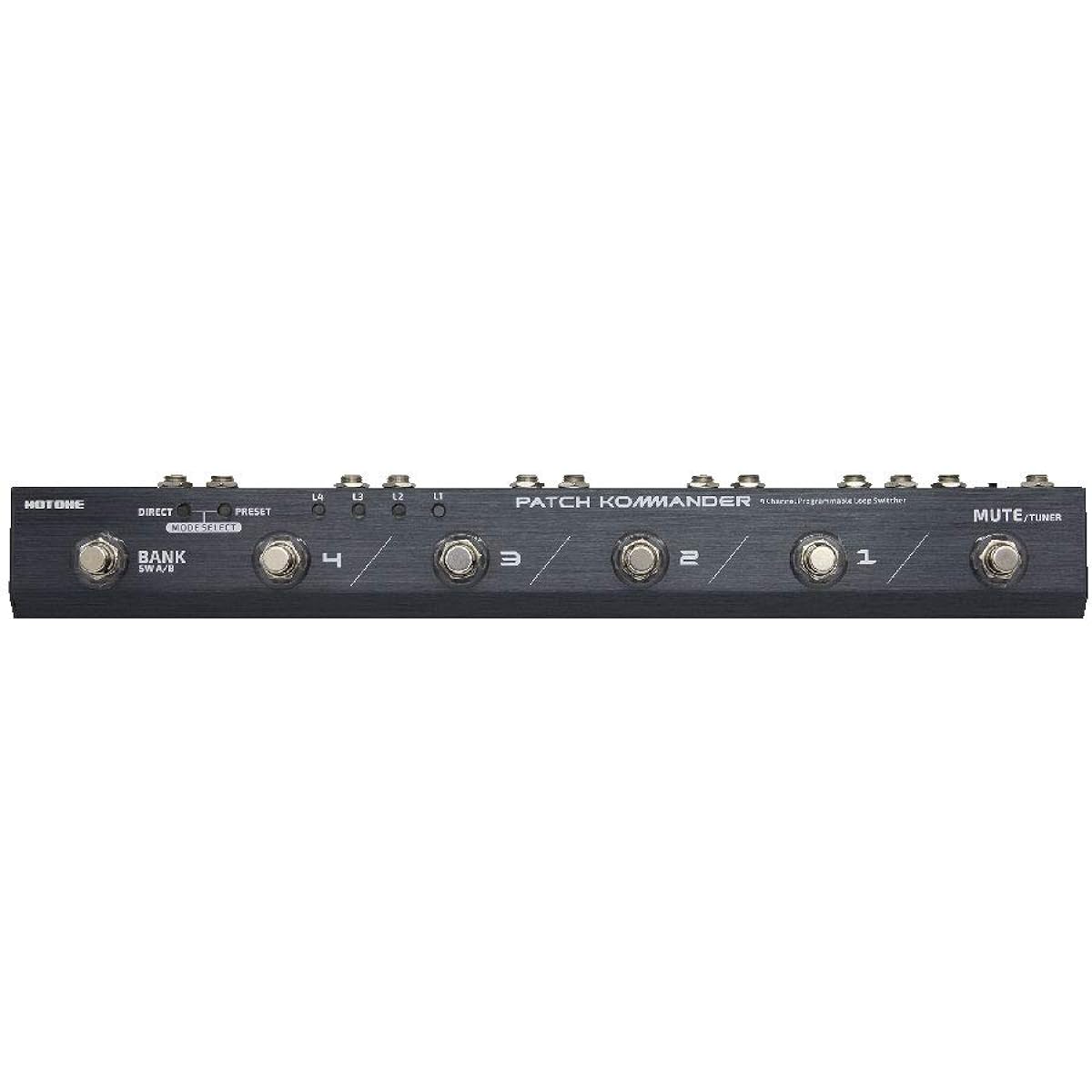

HOTONE Loop Switcher PATCH KOMMANDER LS-10

■Loop Switcher■Features・Compact, lightweight, aluminum body・4 independent relay loops (true bypass)・High-quality buffer amplifier with on/off external switch・Tuner output with mute/tuner function・SW A/B for amplifier channel switching・2 switching modes - Direct mode: Direct access to loops (loop on/off) - Preset mode: 12 x programs with 3 banks and 4 presets can be recalled・Both modes can be switched instantly with the DIRECT & PRESET button (LED lit)・Low switching noise ■Specifications・Number of presets: 12 (4 presets x 3 banks)・Number of loops: 4 (isolated loop)・Bypass mode: Relay true bypass (or analog buffered bypass)・Input impedance: 1MΩ・Output impedance: 100Ω・Power supply: DC9V center negative・Adapter・Current consumption: 150mA・Dimensions: 403mm (D) x 56mm (W) x 48mm (H) / Weight: 535g Product images include images of use. Please note that anything other than what is specified in the is not included.
