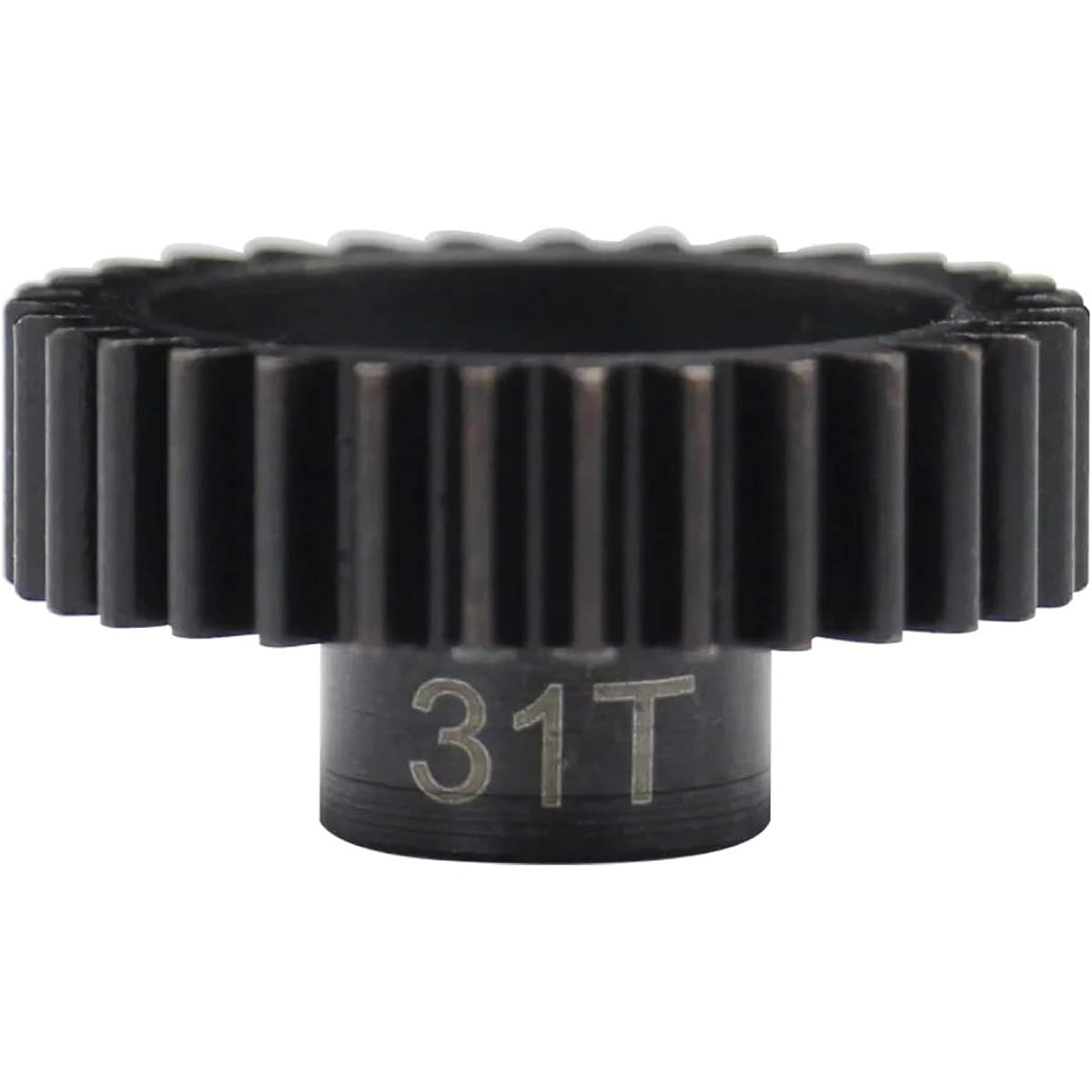

Hot Racing NSG3231 31T Steel 32p Pinion Gear 5mm Bore

Made by Hot Racing. Hot Racing is a company based in the United States. Parts are sourced from Chinese producers. All Hot Racing upgrade parts are direct replacements for stock components. No additional parts required.

Hot Racing Hardened Steel 31 teeth, 32 pitch pinion gear for motors with 5mm shaft, 25mm outside diameter. Features: - CNC machined. - Hardened steel for increased wear resistance and improved fatigue life. - Corrosion resistance with enhanced hardness through nitriding. What you get: - 1 pinion gear. - 1 x M5x5mm set screw Requirements: - 2mm hex wrench for installing set screws. - Removable thread lock (e.g. blue thread locking compound) for set screws - Motor with 5mm shaft. - 32 pitch spur gear. Specifications: - Number of teeth: 31. - Tooth pitch: 32 pitch - Tooth surface width: 7mm. - Length: 14.5mm - For shaft: 5mm Comments 0.8 module is the same as 32 standard pitch.


Product number: ‎NSG3231
Batteries used: ‎No
Batteries included: ‎No
Main material: ‎Steel
Target gender: ‎Unisex
Product model number: ‎NSG3231
Product size: ‎6.35 x 7.62 x 1.27 cm; 18.14 g
