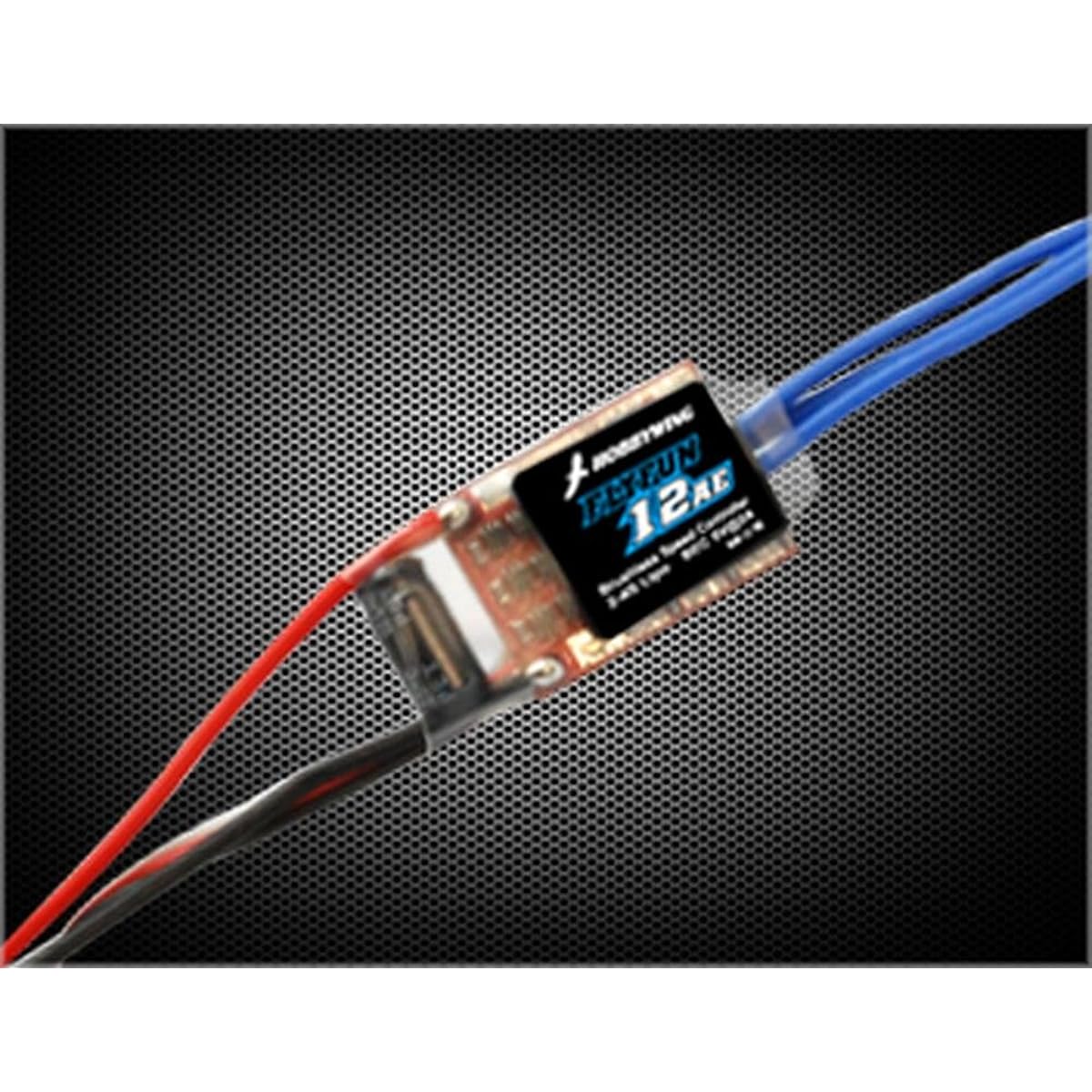

Hobbywing Flyfun 12A-E ESC R/C for Heli & Airplane
Hobbywing Flyfun 12A-E ESC R/C for Heli & Airplane
Regular price
$75.00 USD
Regular price
Sale price
$75.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Flyfun 12A-E ESC Output: Continuous 12A, Burst 15A up to 10 seconds Input voltage: 2-4 cell lithium battery or 5-12 cell NiCadmium/NiMH battery. BEC: 2A/5V (Linear mode)
Product introduction 1 Specification 1.1 Output: Continuous 12A, Burst 15A up to 10 seconds 1.2 Input voltage: 2-4 cell lithium battery or 5-12 cell NiCadmium/NiMH battery. 1.3 BEC: 2A/5V Linear mode BEC. 1.4 Throttle signal refresh rate: 50Hz~432Hz. 1.5 Maximum speed: 210000rpm for 2 pole BLM, 70000rpm for 6 pole BLM, 35000rpm for 12 pole BLM (BLM = Brushless motor) 1.6 Size: 38mm*18mm*7mm. 1.7 Weight: 10.2g. 2. 2.1 Safety Arm Function: No matter the position of the throttle stick, the motor will not rotate after battery connection. 2.2 Throttle Calibration Function: The throttle range can be adjusted to be compatible with different transmitters. 2.3 User programmable. 2.4 Support multiple programming methods: transmitter stick, LED program card. It is very easy to program the ESC at home or in the airfield. 2.5 Compatible with LiPo and NiMH batteries. 2.6 Change the internal timing, suitable for different brushless motors. 2.7 Full Protection: Low voltage cut-off protection/overheat protection/throttle signal loss protection. 2.8 The microprocessor uses a separate voltage regulator IC, which has excellent anti-jamming capabilities. Safety Warning Electronic Speed Controller (ESC) High power systems for RC models are very dangerous. Please read this manual carefully. Manufacture, HOBBYWING Technology & HOBBYWING N.A. have no control over the correct use, installation, application or maintenance of our products and shall not be held liable for any damages, losses or costs arising from the use of our products. Any claims arising from operation, failure, breakdown etc. shall be rejected. We shall not be liable for any injury to persons, property damage or any damages consequent thereto caused by our products or our products. In so far as permitted by law, the obligation to compensate shall be limited to the claimed amount of the affected product.
Product introduction 1 Specification 1.1 Output: Continuous 12A, Burst 15A up to 10 seconds 1.2 Input voltage: 2-4 cell lithium battery or 5-12 cell NiCadmium/NiMH battery. 1.3 BEC: 2A/5V Linear mode BEC. 1.4 Throttle signal refresh rate: 50Hz~432Hz. 1.5 Maximum speed: 210000rpm for 2 pole BLM, 70000rpm for 6 pole BLM, 35000rpm for 12 pole BLM (BLM = Brushless motor) 1.6 Size: 38mm*18mm*7mm. 1.7 Weight: 10.2g. 2. 2.1 Safety Arm Function: No matter the position of the throttle stick, the motor will not rotate after battery connection. 2.2 Throttle Calibration Function: The throttle range can be adjusted to be compatible with different transmitters. 2.3 User programmable. 2.4 Support multiple programming methods: transmitter stick, LED program card. It is very easy to program the ESC at home or in the airfield. 2.5 Compatible with LiPo and NiMH batteries. 2.6 Change the internal timing, suitable for different brushless motors. 2.7 Full Protection: Low voltage cut-off protection/overheat protection/throttle signal loss protection. 2.8 The microprocessor uses a separate voltage regulator IC, which has excellent anti-jamming capabilities. Safety Warning Electronic Speed Controller (ESC) High power systems for RC models are very dangerous. Please read this manual carefully. Manufacture, HOBBYWING Technology & HOBBYWING N.A. have no control over the correct use, installation, application or maintenance of our products and shall not be held liable for any damages, losses or costs arising from the use of our products. Any claims arising from operation, failure, breakdown etc. shall be rejected. We shall not be liable for any injury to persons, property damage or any damages consequent thereto caused by our products or our products. In so far as permitted by law, the obligation to compensate shall be limited to the claimed amount of the affected product.
