Hobbywing 38020367 Ezrun Mini28 Esc & 1626 Sd 5000kv Motor Combo

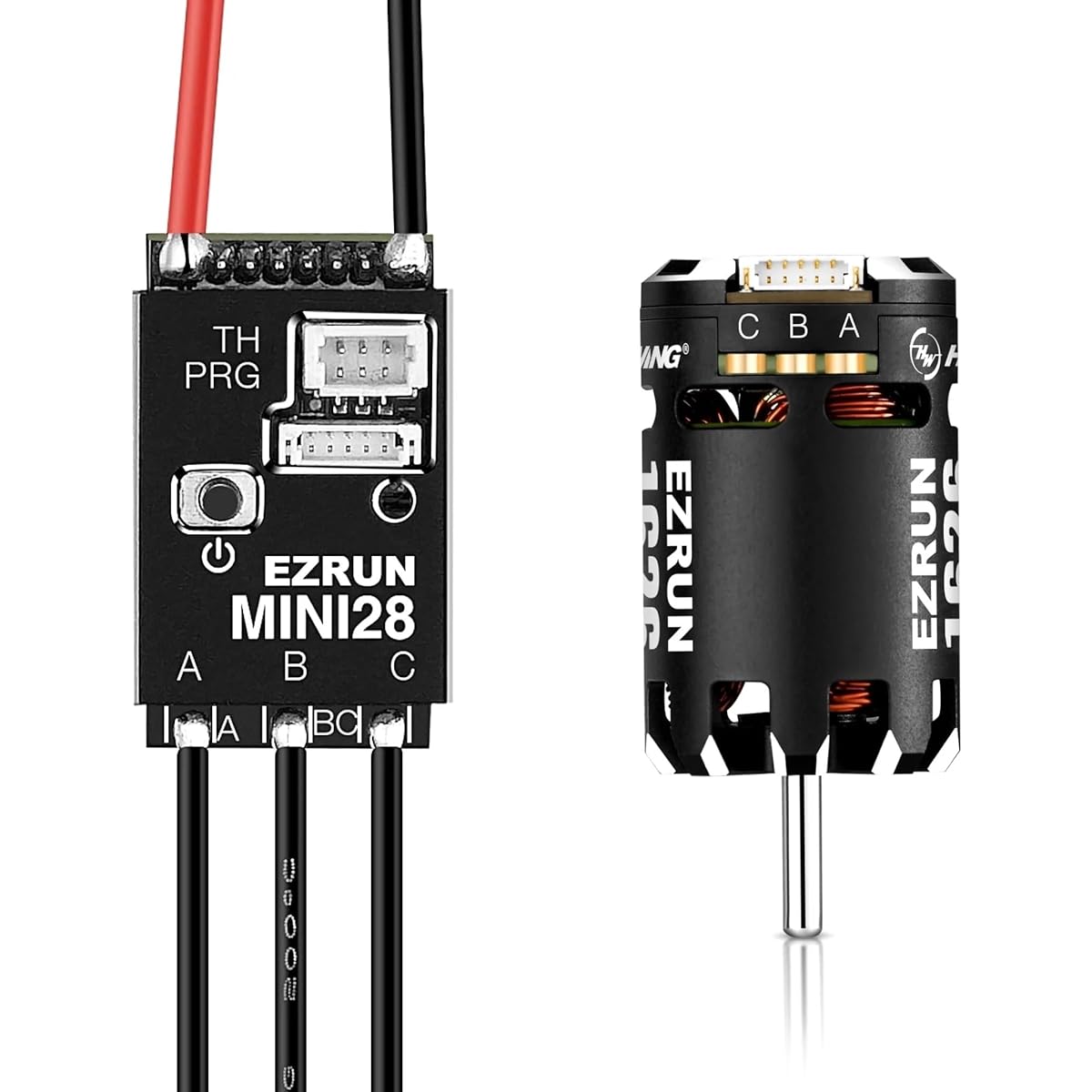

The Hobbywing EZRun MINI28 1/28 Scale Sensored Brushless Combo packs groundbreaking features into a 1/28 scale package. Made for 1/28 scale racing, this powerful ESC has the features you need to give you a competitive advantage on the race track, and the 1626 brushless motor delivers incredible power in a small package. The MINI28 ESC is just 22mm long and 14mm wide, making it an easy fit for most 1/28 cars. Specifications: ESC: Continuous/Peak Current: 30A/80A. Motor Type: Sensored/Sensorless Brushless Motor. Motor Limits: 1626 Size Motor. LiPo/NiMH Cells: 2S Lipo. BEC Output: 6V/7.4V Adjustable, Peak 3.5A (Switch Mode). Size: 22.7x14.2x11.8mm Weight: 5g (without wires). Programming Port: Shared with throttle cable. Motor: kV: 5000. Poles: 2. No Load Current: 0.5A. Input Voltage: 2S. Motor Diameter: 16mm. Motor Length: 26mm. Motor Shaft Length: 8.5mm. Motor Shaft Diameter: 1.8mm. Weight: 18g. Application: 1/28th Mini What You Get: (1) EZRun MINI28 1/28 Scale Sensored Brushless ESC. (1) ESC Manual. Assorted Wire Harnesses. 1 x EZRun 1626 Sensored Brushless Motor (5000Kv).


Manufacturer: Hobbywing
Part Number: 38020366 / 38020367/ 38020368
Item Weight: 159 g
Product Dimensions: 8.89 x 6.86 x 7.62 cm; 158.76 g
Voltage: 7.4 Volts
Item Dimensions (L x W x H): 8.9 x 6.9 x 7.6 cm
