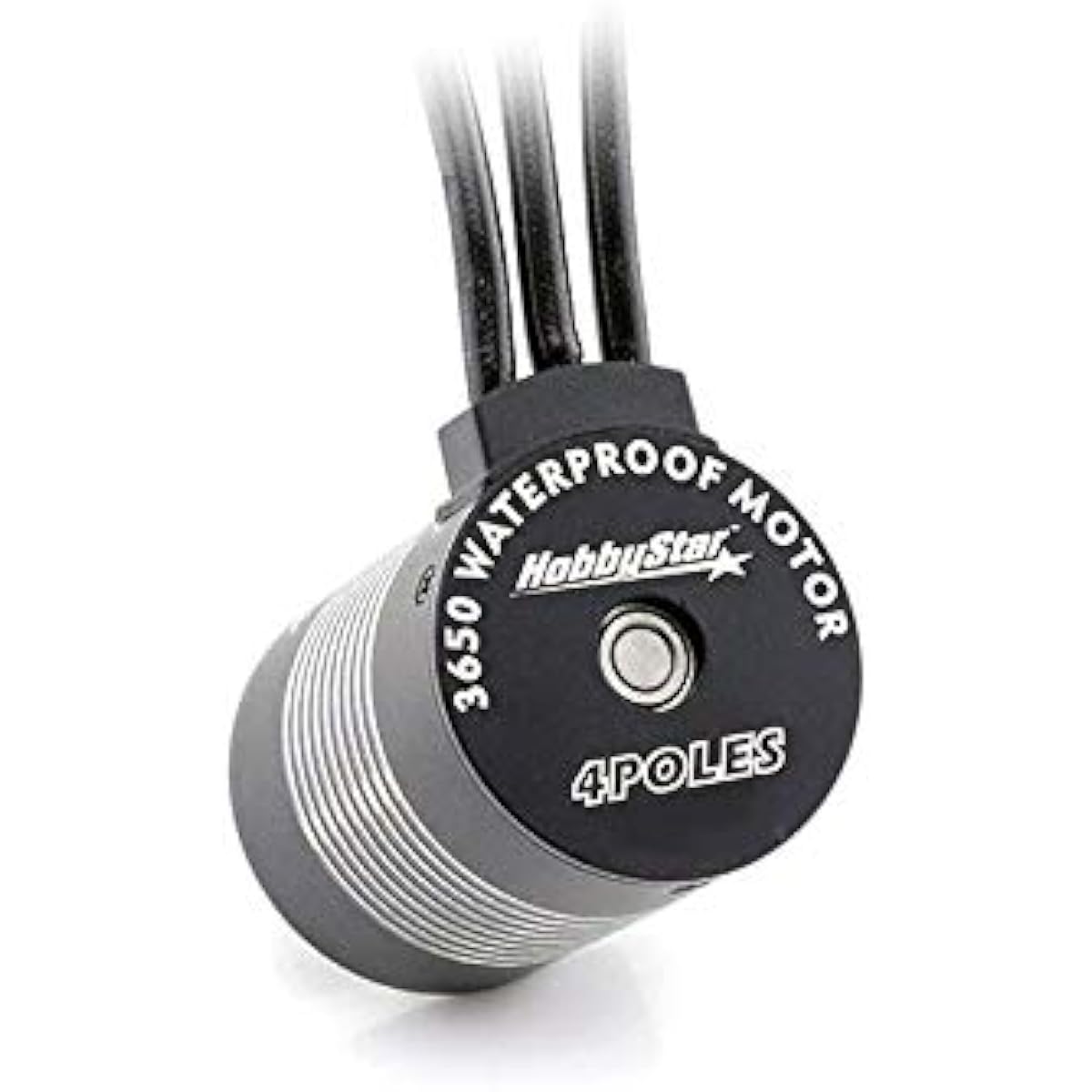

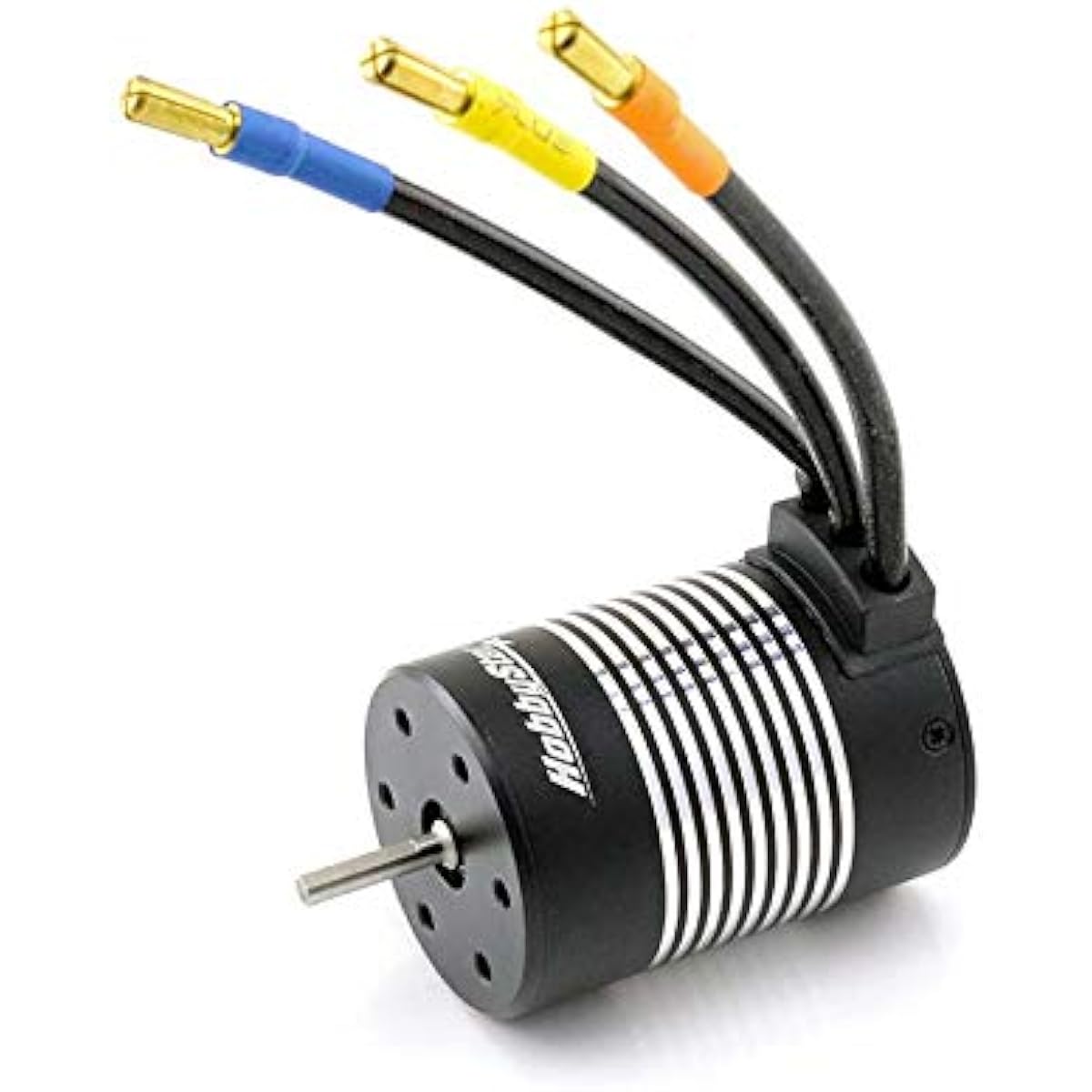

HobbyStar 3650 4 Pole Waterproof Brushless Sensorless Motor for RC Car Truck 5200KV 3T

HobbyStar 3650 4 Pole Brushless Motor The 4 poles can apply torque and the versatile waterproof design allows it to operate in the toughest conditions. The motor leads are fitted with 4.0mm gold plated bullet plugs for easy soldering connections. Features: 12 slot high torque designed 4 pole motor with high purity copper windings for maximum efficiency. High RPM ABEC5 oversized bearings. Precision balanced rotor for smooth operation and ultra thin (0.35mm) stator laminations for maximum RPM. Specifications: KV: 5200 Max Voltage: 2S Rotor Poles: 4 Max Amps: 94A IO: 3.7A Resistance: 0.0051 Watts 900W Max RPM: 50,000 Length: 50mm Diameter: 36mm Weight: 180g Shaft: 3.175mm x 15mm Connector: 4mm Bullet Not recommended for heavy 4x4 vehicles. Note: The photos are generic. You will receive the KV in the listing title. The recommended voltages in the chart are guidelines for what voltages you can safely run at. Nevertheless, it is important for the user to monitor the temperature of the motor and adjust gearing if necessary. With or without the rated voltage, a motor can overheat to the point of destruction if over geared.




Product number: ‎375-15-520
Manufacturer's recommended age: ‎12 years and above
Product model number: ‎375-15-520
Product weight: ‎180 g
