Genb Hiace TRH/KDH200 series (2WD) Adjustable stabilizer link [Long] SAL002H

■Compatible model: Hiace ■Compatible model: TRH/KDH200 series ■Drive system: 2WD

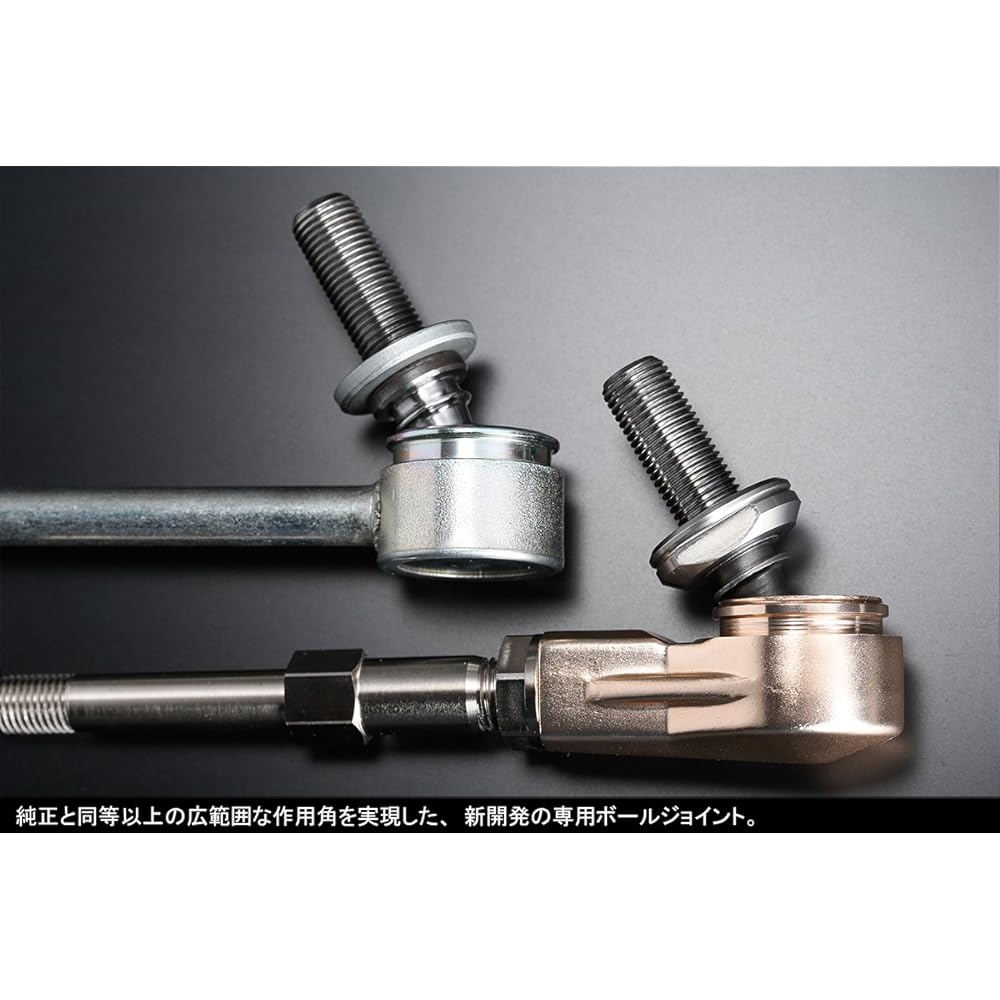

``Regain lost anti-roll performance!'' Stabilizers use the twisting action of rods to reduce the left-right difference that occurs when the suspension is activated, and work to suppress vehicle body roll. However, this is based on the premise that the angle of the stabilizer end is appropriate for the trajectory (line of motion) that the suspension strokes. In the case of many low-down Hiaces, the sway end, which moves in a circular motion around the member-side attachment part, is pushed upward by the link. Normally, the lower arm stroked by input from the road would twist the stabilizer via the stabilizer link, but the stabilizer end has already reached the limit of its operating range and lifts the body using the bearing as a fulcrum. This is a problem that goes beyond anti-roll performance, and is like directly connecting the suspension to the body. "Adjustable stabilizer link" is an item that adjusts the overall length of the link to a position that does not interfere with the function of the stabilizer. In addition, the industry's first forged aluminum case provides light weight, high rigidity, and incredible durability. By restoring the stability that had been lost, you can enjoy a comfortable ride and outstanding driving performance. *Supported lowering amount: 1.5 to 2.5 inches (-37.5 to -62.5 mm) Precautions for use ●The link length of this product is set assuming a lowering of -30 mm or more from the standard vehicle height. -Please be aware that if you use the vehicle at a height of less than 30 mm or at a standard vehicle height, there may be insufficient adjustment allowance and there is a risk of interference with surrounding parts. ●Although this product complies with safety standards, please note that the inspector's judgment will take precedence when it comes to vehicle inspections. ●If the shape of the stabilizer is different from the original one, it may interfere with the tie rod and tie rod end during steering operation. Please check before installing.


Manufacturer: Genb
Brand: Genb
Model name: SAL002H
Package size: 25.7 x 12.8 x 7.1 cm; 657.99 g
Product model number: ‎SAL002H
Certification: ‎No
Product weight: ‎658 g
