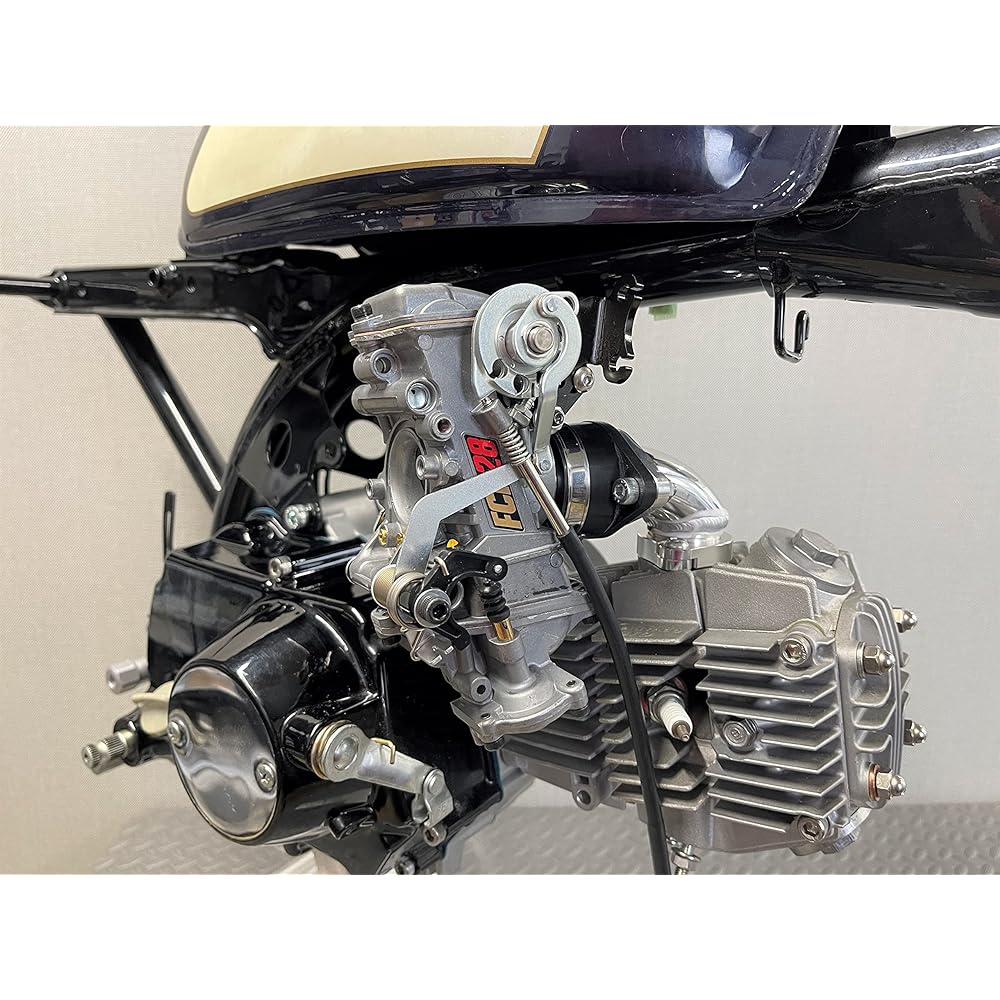

Gcraft Variable Manifold for TMR28/FCR28 Type 2 Monkey 37214

Compatible models: 5L Monkey only (4L Monkey installation not confirmed) Manifold that can be installed with Keihin FCR28/Mikuni TMR28 Fine adjustment is possible by making it a variable type Aluminum buffed finish

Fine adjustment is possible by making it a variable manifold type that can be attached to Keihin FCR28 and Mikuni TMR28.Type 1 (37202) protrudes from the tank, but Type 2 can be stored under the tank. Manifold specifications - Port diameter: cylinder head side φ26, carburetor side φ26 - Insulator mounting screw pitch 55mm to 60mm (M6) - Gasket included ●FCR28 installation method - Spigot diameter Φ34 is compatible with our recommended insulator. - The spigot diameter varies depending on the shipping condition, so be sure to check before installing. - If the diameter is small (Φ29), please use a separate (37219) FCR28 spigot (28-26). - You can also use the cable holder in the shipping condition, but it will be difficult to manage. In that case, please use the FCR28 cable holder (37217) separately. ●How to install TMR28 - Spigot diameter Φ34 is compatible with our recommended insulator. - The spigot diameter varies depending on the shipping condition, so be sure to check before installing.・Depending on the type of spigot, the inner diameter of the insulator side may be larger. In that case, please use the TMR28 spigot (28-26) separately (37215).・A separate (37216) TMR28 cable holder is required for installation. *A separate insulator and band are required for installation. Recommended: KIJIMA insulator for PE28 K507-602 * Confirmed installation head Monkey genuine, KITACO ULTRA-SE head * For FCR28/TMR28 only, large body not available * For 5L Monkey only (4L Monkey installation not confirmed)


Manufacturer: Guild Design
Brand: Gcraft
Model Name: Variable Manifold
Package Size: 17.1 x 10.5 x 5.1 cm; 130 g
Product Model Number: 37214
Certification: ‎None
Product weight: ‎130 g
