Auto Parts Tokyo

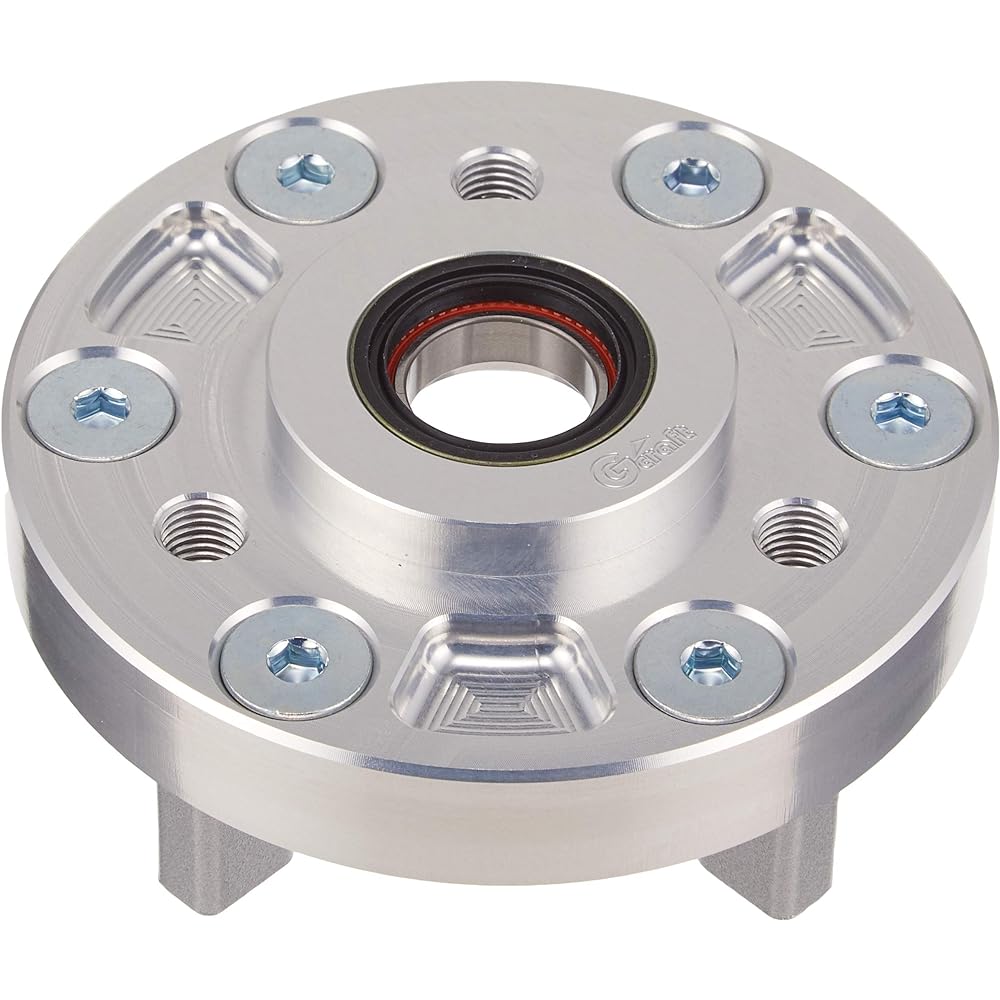

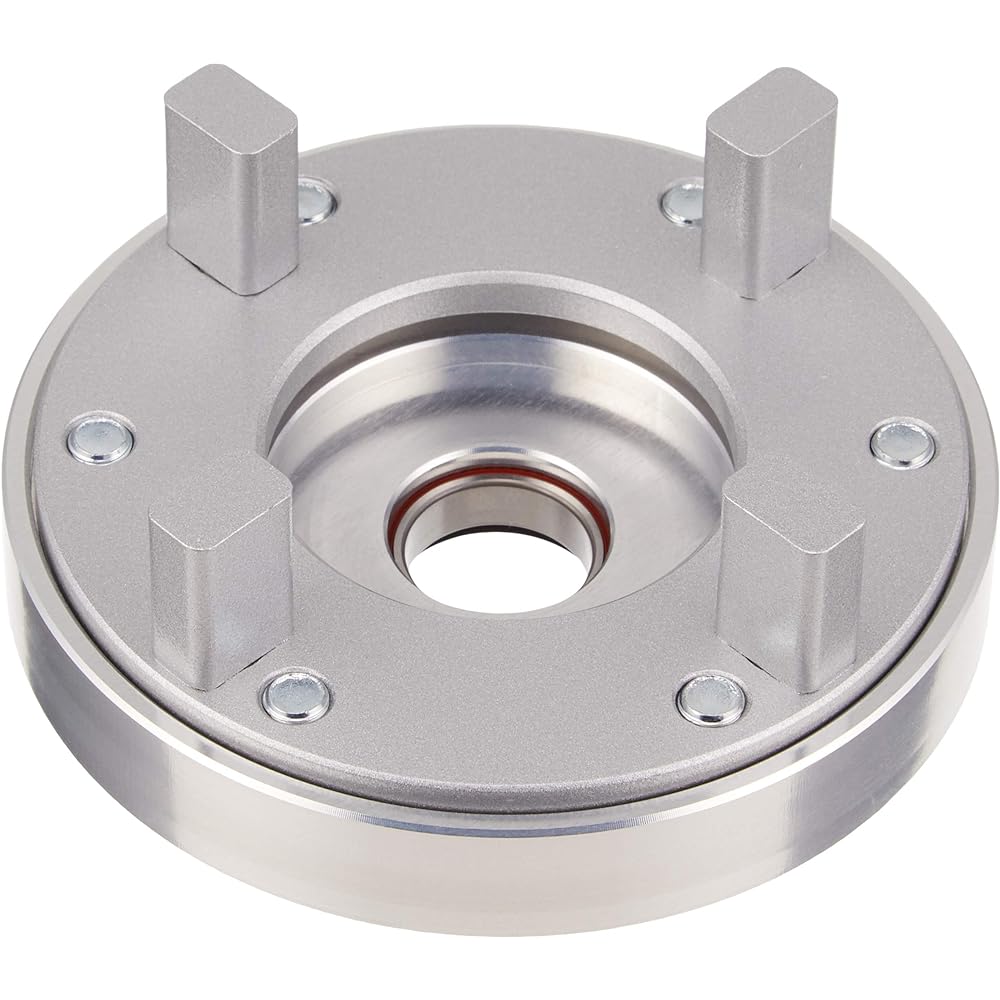

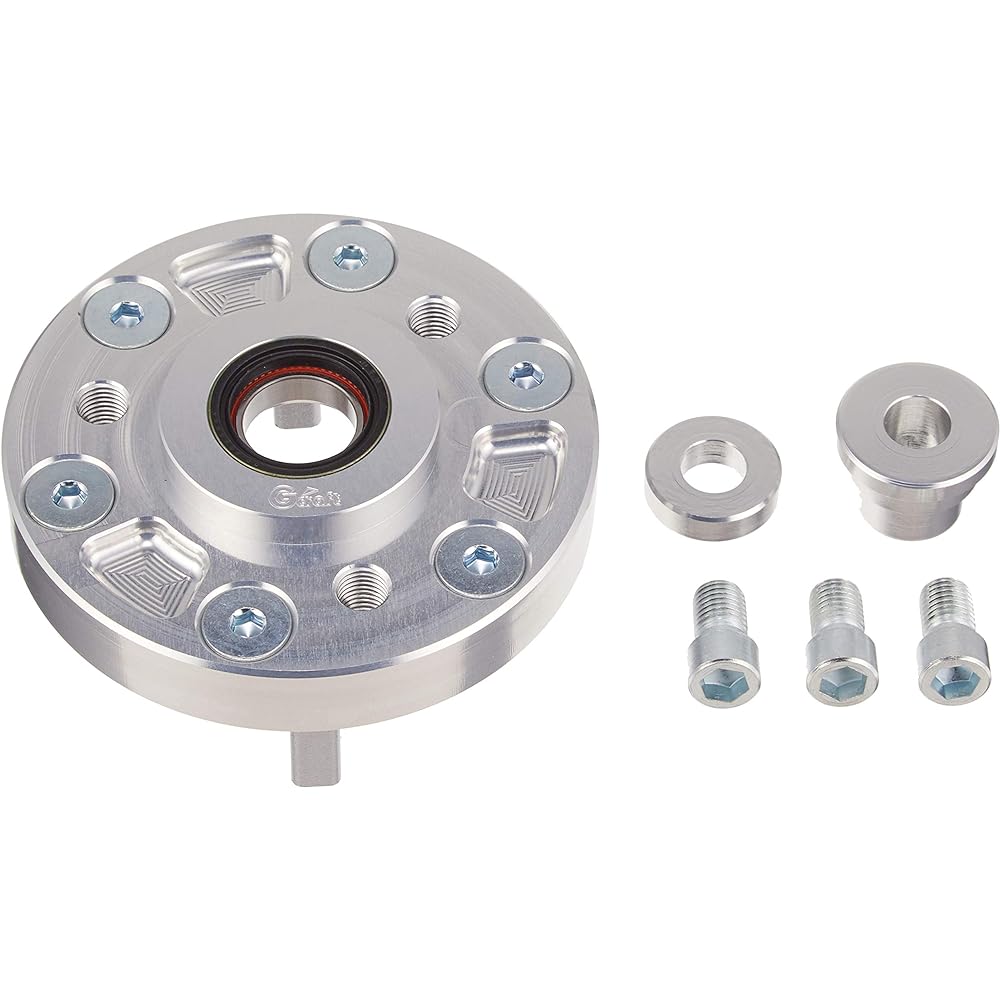

Gcraft Sprocket Spacer 20mm Ducks Hub 39040
Gcraft Sprocket Spacer 20mm Ducks Hub 39040
Regular price
$233.00 USD
Regular price
Sale price
$233.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Product model number: 39040 Packing size: 17.8 x 15.9 x 15.7 cm Product weight: 900 g
This is a necessary part to extend the chain line when the super wide swing arm for Dax/Charly and G-Craft's 10-inch 5.5J wide wheels are installed. Adopts a hybrid structure of iron and aluminum to ensure component strength. The rear sprocket to be used will be a sprocket for NSR50/80 or NSF100 (*31 teeth or less cannot be installed).The front will be installed using a 20mm offset sprocket (G-Craft product number: 36028). Both 3 and 4 hubs can be used (tubeless type hubs cannot be used) *If the end eye of the rear shock is thicker than the stock, the chain and suspension retaining bolt may interfere. *This product is exclusively for Honda horizontal engine genuine 50cc engine. If used with a displacement of 50cc or more, it may lead to damage to engine parts. *The design is such that the load of the sprocket is received by the hole in the center of the spacer joint. When installing, it may be a light press fit depending on the hub you are using. This is due to the thickness of the paint and individual differences in the hub, so please hit it with a plastic hammer to install it. *If you are applying original painting, please check the mating part and mask it. ※※This product must be used with G-Craft super wide swing arm, Honda genuine hub, front 20mm offset sprocket (product number 36028), billet generator cover (product number 37125) and G-Craft 5.5J wheels. If used at the same time as other manufacturers' products, it may lead to damage. [Material] A2017 material chromoly steel [Surface treatment] Silver anodized finish
Manufacturer: Gcraft Brand: Gcraft Model name: Dax /Shaly
Package size: 17.8 x 15.9 x 15.7 cm; 899.99 g
Product model number: 39040
Color: Silver
Certification: None in particular, on a case-by-case basis
Product Weight: 900 g
This is a necessary part to extend the chain line when the super wide swing arm for Dax/Charly and G-Craft's 10-inch 5.5J wide wheels are installed. Adopts a hybrid structure of iron and aluminum to ensure component strength. The rear sprocket to be used will be a sprocket for NSR50/80 or NSF100 (*31 teeth or less cannot be installed).The front will be installed using a 20mm offset sprocket (G-Craft product number: 36028). Both 3 and 4 hubs can be used (tubeless type hubs cannot be used) *If the end eye of the rear shock is thicker than the stock, the chain and suspension retaining bolt may interfere. *This product is exclusively for Honda horizontal engine genuine 50cc engine. If used with a displacement of 50cc or more, it may lead to damage to engine parts. *The design is such that the load of the sprocket is received by the hole in the center of the spacer joint. When installing, it may be a light press fit depending on the hub you are using. This is due to the thickness of the paint and individual differences in the hub, so please hit it with a plastic hammer to install it. *If you are applying original painting, please check the mating part and mask it. ※※This product must be used with G-Craft super wide swing arm, Honda genuine hub, front 20mm offset sprocket (product number 36028), billet generator cover (product number 37125) and G-Craft 5.5J wheels. If used at the same time as other manufacturers' products, it may lead to damage. [Material] A2017 material chromoly steel [Surface treatment] Silver anodized finish
Manufacturer: Gcraft Brand: Gcraft Model name: Dax /Shaly
Package size: 17.8 x 15.9 x 15.7 cm; 899.99 g
Product model number: 39040
Color: Silver
Certification: None in particular, on a case-by-case basis
Product Weight: 900 g
