Gcraft Engine Mount Reinforcement Plate for Horizontal Engine Monkey/Gorilla 39407

Product model number: 39407 Packing size: 18.4 x 16.1 x 15.9 cm Product weight: 638 g

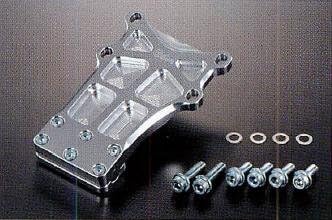

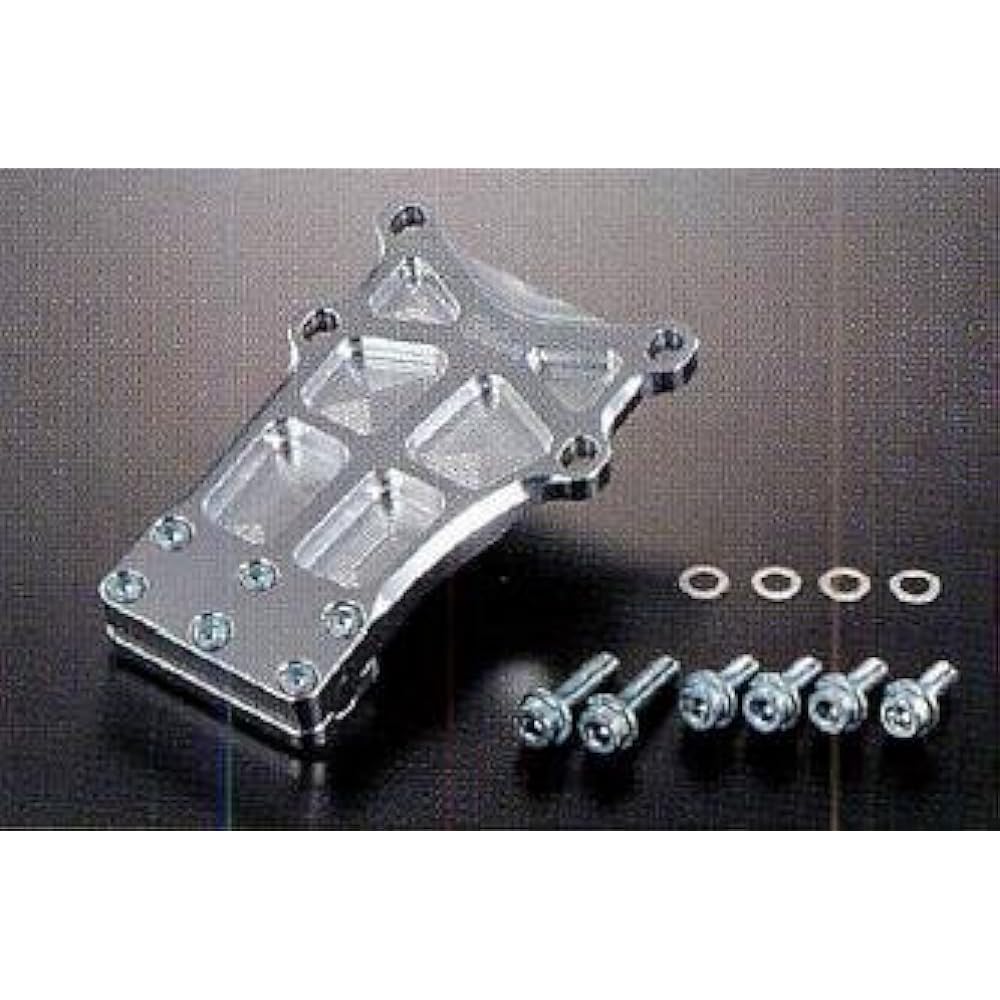

This is a reinforcement plate that fixes the monkey frame and engine. The 4 bolt holes on the bottom of the crankcase are used to secure it to the frame, suppressing left and right movement of the engine. The material used is high-strength A2017 to increase crankcase rigidity. It can also be installed with a side stand holder or normal step. *When using the side stand holder or normal step, it will go down by the thickness of this plate (10mm). If the vehicle body stands up too much, please adjust it using an adjustment stand, etc. ●Aluminum frame compatible (GC-017, 019, 020 series) ●Can be installed simultaneously with down tube (G-Craft product number 39917) ●G-Craft product number 30039 master cylinder mount kit, cannot be installed at the same time [Material] A2017 material [Surface treatment] Silver anodized finish


Manufacturer: Gcraft Brand: Gcraft Model name: Monkey Packing size: 18.4 x 16.1 x 15.9 cm; 637.99 g
Product model number: ‎39407
Color: ‎Silver
Certification: ‎None, on a case-by-case basis
Product weight: ‎638 g
