Gcraft Backstep Disc Ape 32052

Material: A2017, A5083 material Surface treatment: Silver alumite finish By using two high-precision bearings, play during operation is minimized. Duracon color to prevent scratches is included on the step bar part. Position 20mm back , 10mm up NSR50/80 master cylinder only

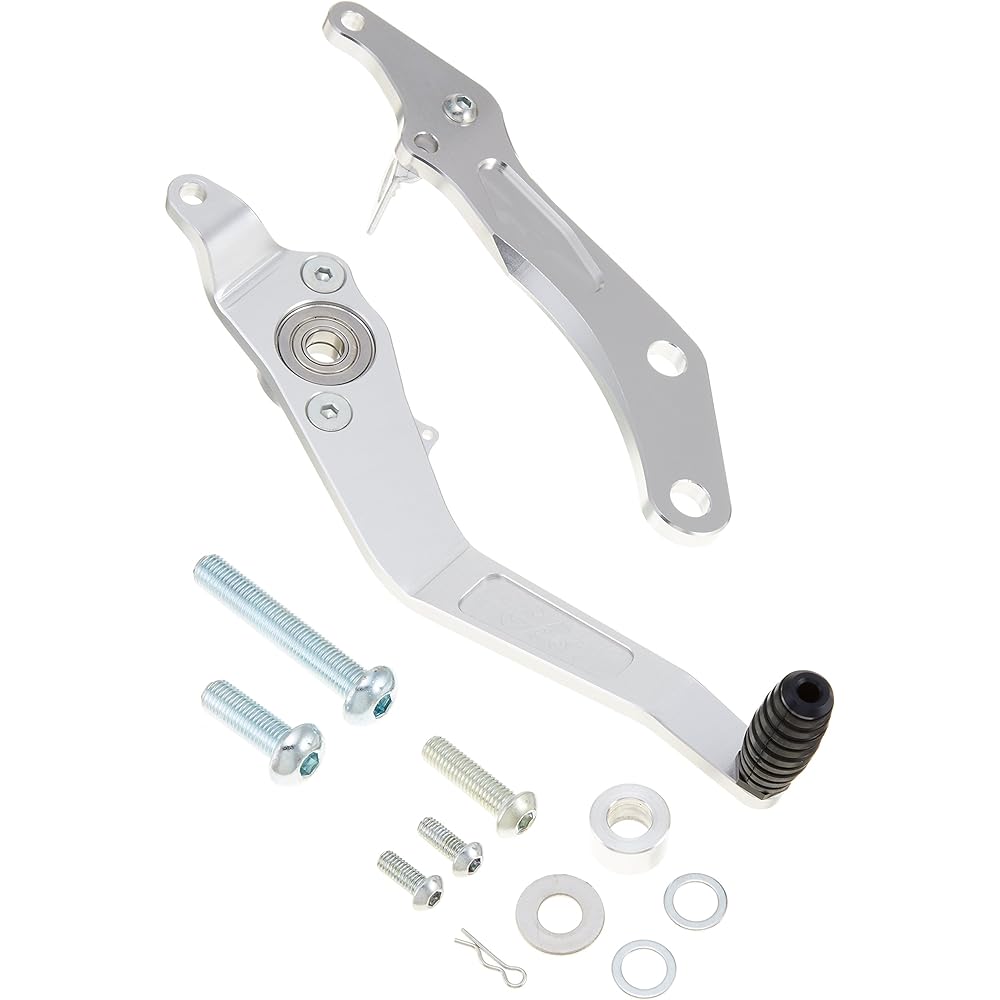

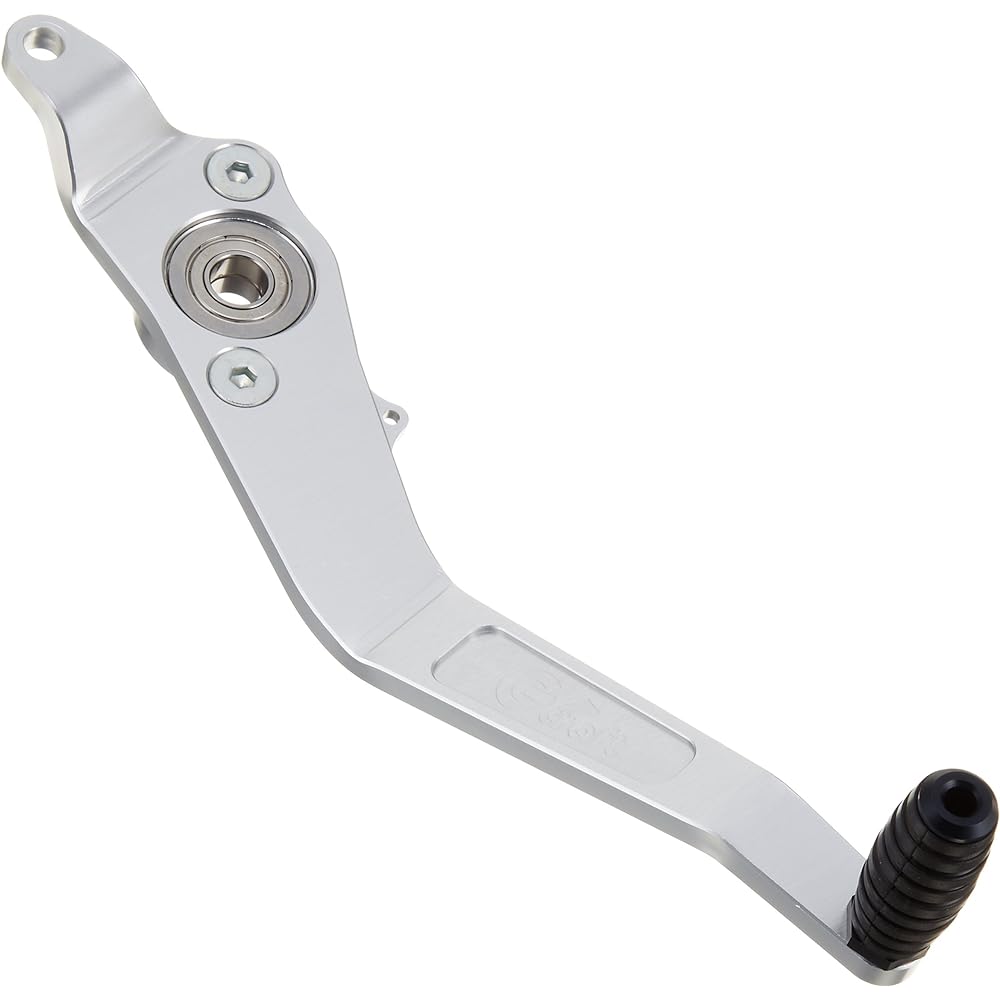

Standard kick pedal can be used. Stand holder included. The pedal bearing uses two high-precision bearings to minimize play during operation. A scratch-preventing Duracon collar is included on the step bar to reduce scratches when using the kick pedal. Even if you have a conventional back step, you can change it to a bearing specification by changing the pedals and pedal mounting collars. Position 20mm back, 10mm up, exclusively for NSR50/80 master cylinder. When attaching to Ape 100, please use the Ape 50 stand. We have not confirmed that it is installed on vehicles that use Ape injection. ●When using a reserve tankless kit, please use part numbers 33515 and 33526 (types 1 and 2). ●Recommended side stand: Adjustable stand middle size (adjustment length 195mm to 245mm) [Material] A2017, A5083 material [Surface treatment] Silver alumite finish *For long swing arms, the spring to the brake switch is wired to the brake rod, brake pedal, etc. Please fix it to. *Ape Type D cannot be installed


Manufacturer: Gcraft Brand: Gcraft Model name: APE50/100 Packing size: ‎30.8 x 16.2 x 12.2 cm; 1.25 kg
Product model number: ‎32052
Color: ‎Silver
Certification: ‎None, on a case-by-case basis
Product weight: ‎1.25 Kilograms
