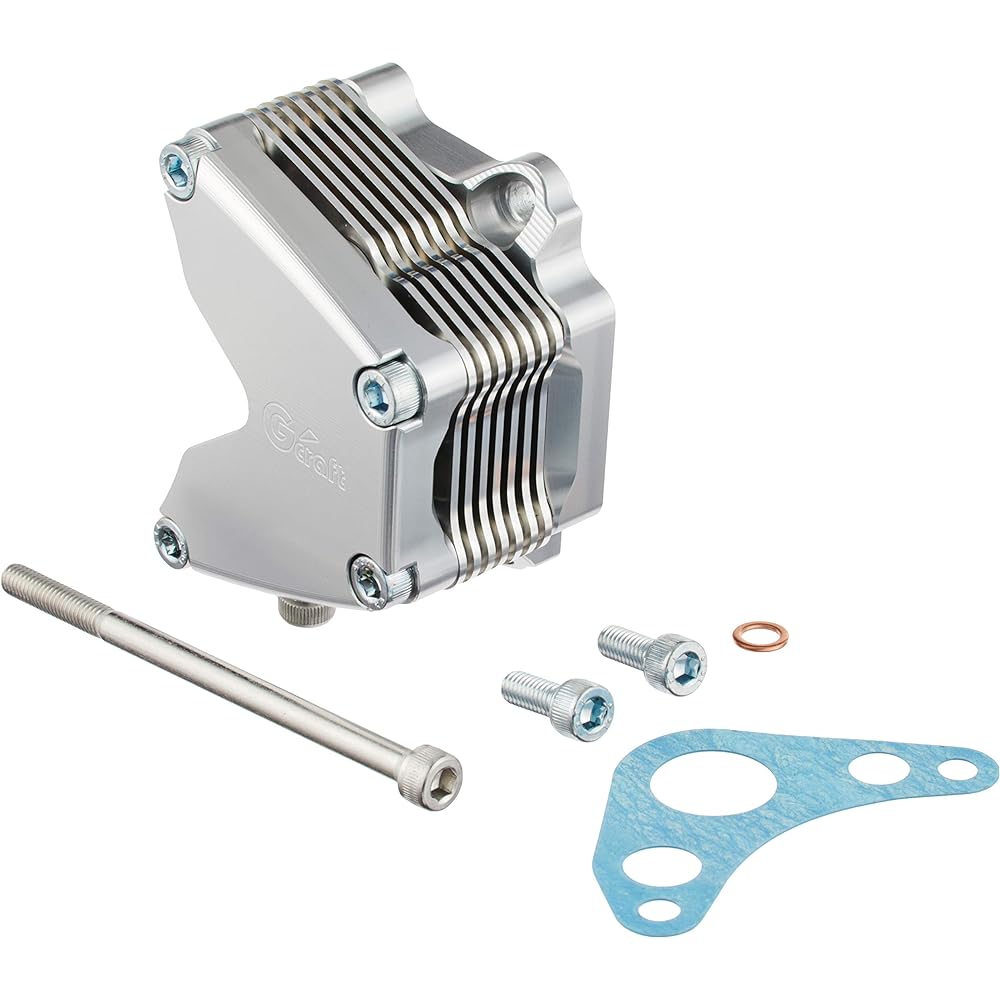

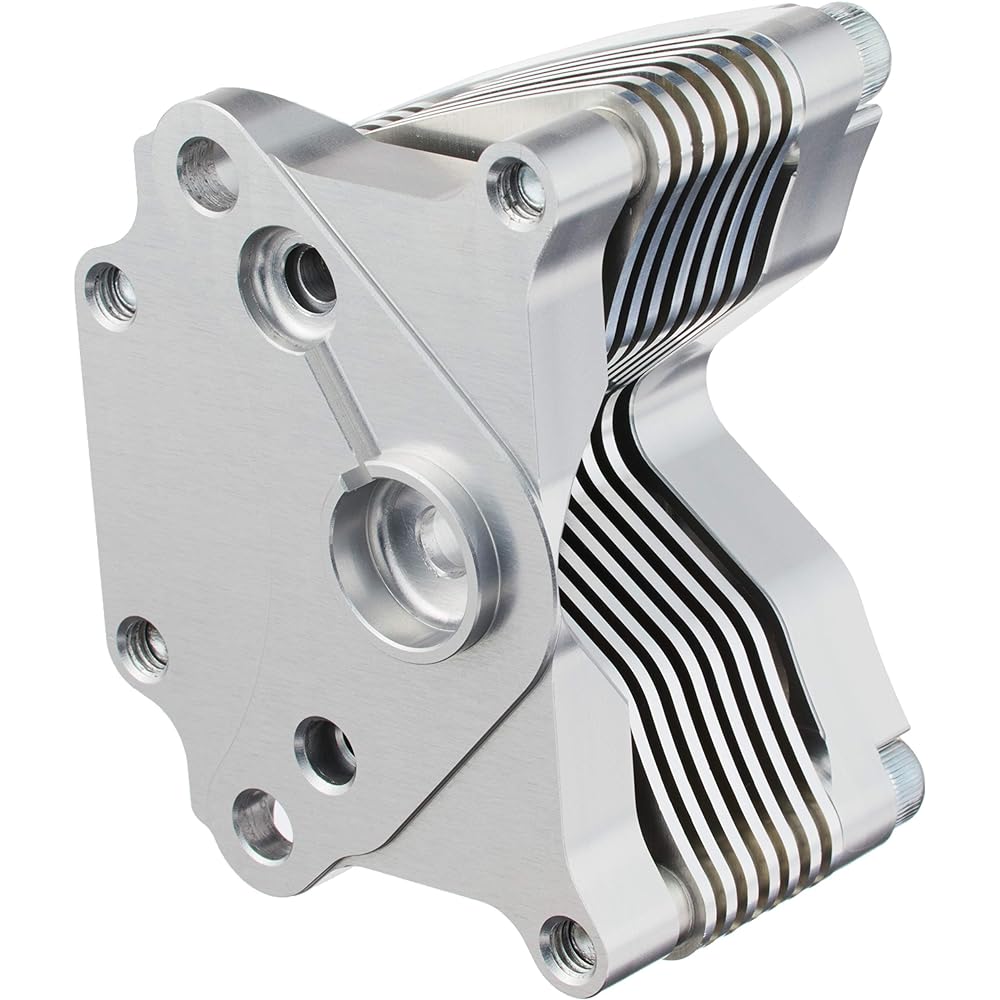

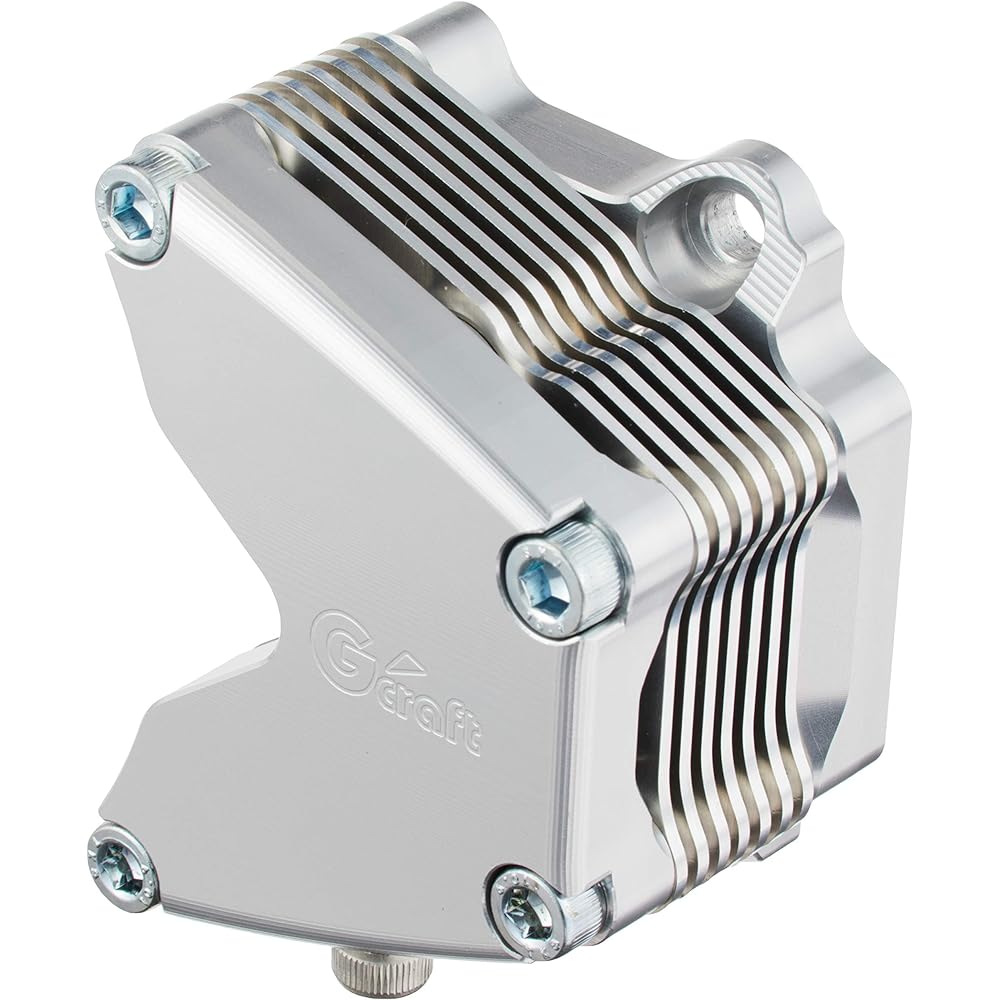

Gcraft 7-stage aluminum billet oil cooler for horizontal engines 37020

Compatible models: Monkey This is a new oil cooler that can be installed directly on the head. Installation is very easy, just remove the genuine cover and attach it. There is no need to worry about troublesome hose routing, stay processing, or interference with other parts. Oil circulates inside and absorbs heat from the head, providing a high cooling effect.

A new oil cooler that can be attached directly to the head. Installation is very easy, just remove the genuine cover and attach it. There is no need to worry about troublesome hose routing, stay processing, or interference with other parts. Oil circulates inside and absorbs heat from the head, providing a high cooling effect. It also increases the area that is exposed to the wind while driving. Please use the G-Craft oil cooler as a secondary item. Number of fins: 7. *After installation, please increase the amount of oil by 10cc to 15cc. Also, after installation, check the oil level gauge to see if the capacity is appropriate. ◆Oil cooler dimensions (from the mounting surface to the plate with G Craft logo).7 stages - 50mm [Material] A2017 material [Surface treatment] Silver alumite finish ●Cylinder head that can be installed Monkey 6V, Monkey 12V, Dax 6V, Dax 12V, Monkey R, regular head of each company ● Cylinder head (or car model) that cannot be installed Takegawa Super Head (difference in mounting shape) KITACO Ultra SE (due to different plug angle) Motra (interferes with frame) Shary (interferes with frame) CT110 (different engine type) ) Cub (Can be installed by removing the leg shield) Cannot be installed on FI model cars *6V engines (types where the cam is not supported by bearings) require a separate gasket. Gasket part number Made by Kitaco 966-1015020


Manufacturer: Gcraft Brand: Gcraft Model name: Monkey Packing size: 19.4 x 11.6 x 5.8 cm; 379.99 g
Item model number: ‎37020
Color: ‎Silver
Certification: ‎None, on a case-by-case basis
Item weight: ‎380 g
