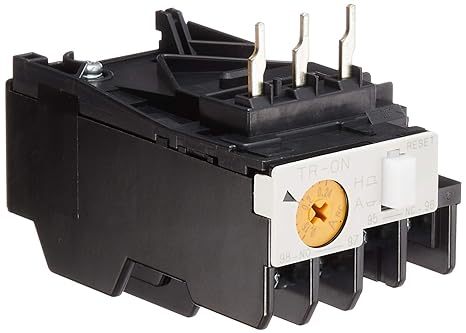

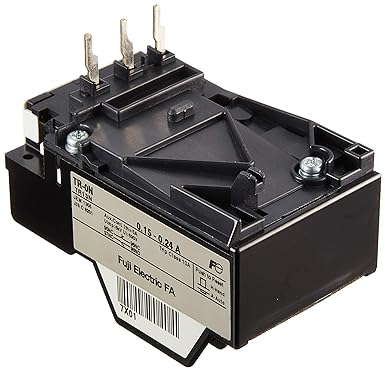

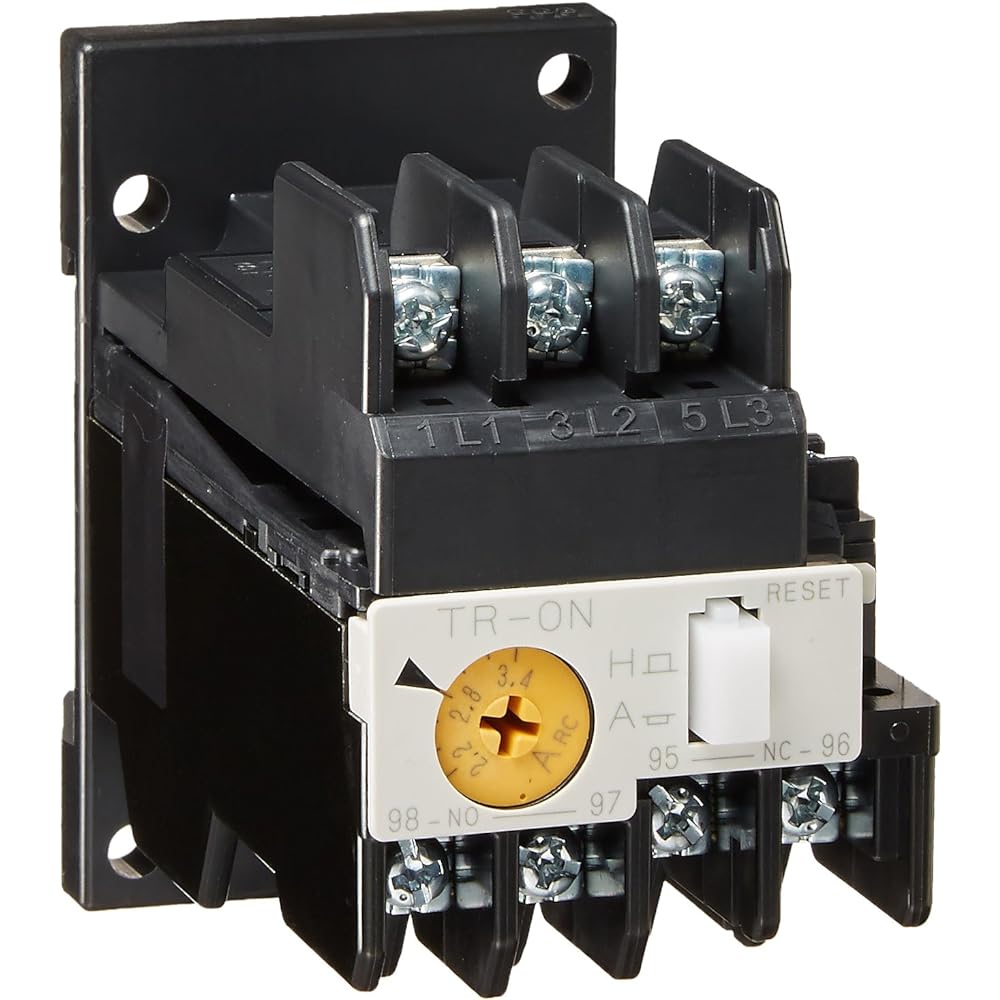

Fuji Electric Standard Thermal Relay TR-0NH 2.2A

Quantity: 1 piece Specifications: For single installation Mass (kg): 0.13 Model: TR-0NH Rated current: 3A External dimensions (width W x height H x depth D) (mm): 44 x 87 x 72 Auxiliary contact :1a1b Power consumption (VA): 1.8/pole Applicable rail width (mm): 35 Display more items

Quantity: 1 piece Specifications: Mass for individual installation (kg): 0.13 Format: TR-0NH Rated current: 3A External dimensions (width W x height H x depth D) (mm): 44 x 87 x 72 Auxiliary contacts :1a1b Power consumption (VA): 1.8/pole Compatible rail width (mm): 35 Minimum compatible load: DC5V, 3mA Heat element rating (A): 2.2 Number of heat elements: 2 Heat element rating setting range (A): 2.2~ 3.4 Rated operating current (A): AC (AC-15) AC24V: 3 (0.3) AC110: 2.5 (0.3) AC220V: 2 (0.3) AC 440V: 1 (0.3) AC 550V: 0.6 (0.3). Direct current (DC-13) DC24V: 1.1 (0.3) DC110V: 0.28 DC220V: 0.14 *The numbers in parentheses are the a contact rating for automatic reset type


Manufacturer: Fuji Electric Equipment Control
Part number: ‎TR-0NH 2.2A
Item weight: ‎156 g
Package size: ‎11.5 x 10.3 x 7 cm; 155.99 g
Style: ‎Type: For single installation Current : 2.2A
Pattern: ‎TR-0NH
Uses batteries: ‎No
