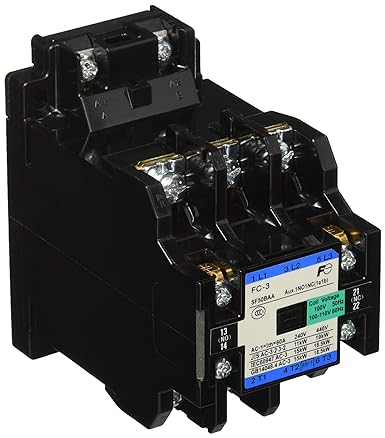

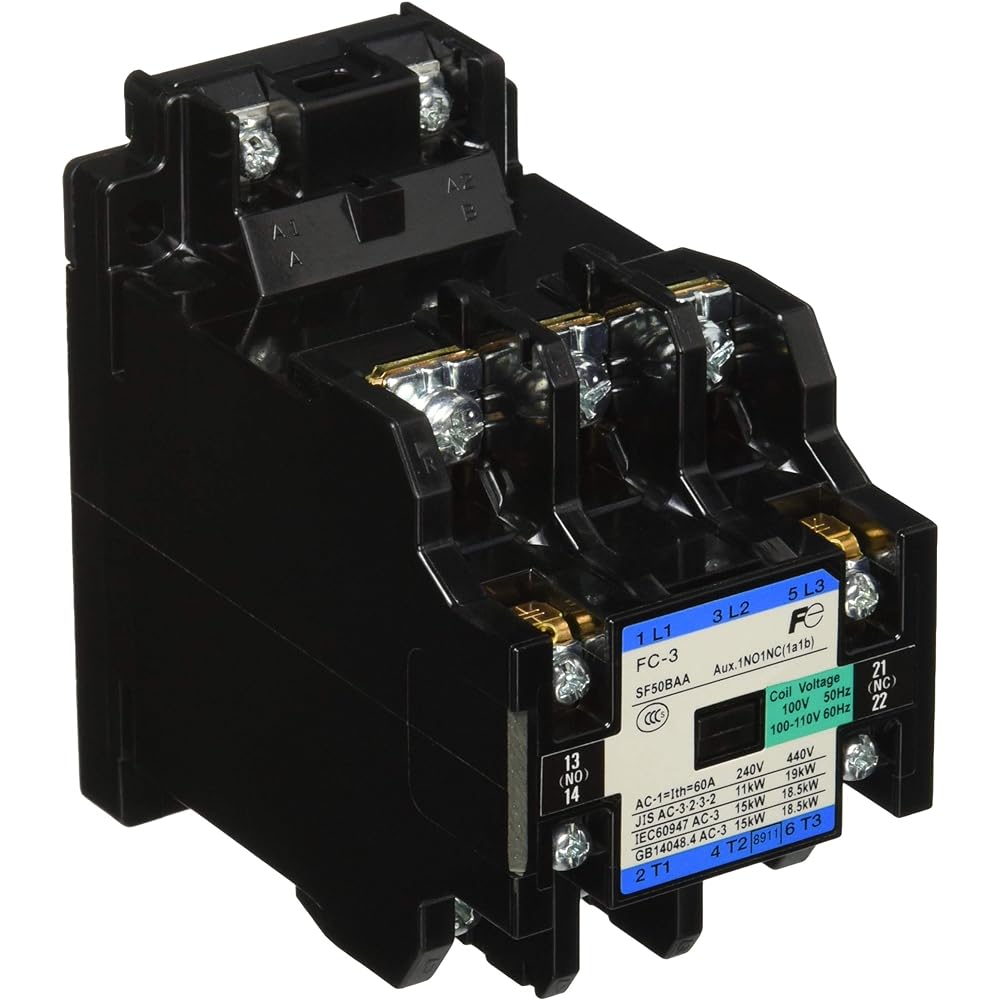

Fuji Electric Machine Control AC operating system electromagnetic contactor standard type 1a1b (1No1NC) AC100V FC-3 コイルAC100V 1A1B

Rated capacity (kW) 3-phase squirrel cage motor (AC-3) 200-240V: 11 380-440V: 19 Rated operating current (A) 3-phase squirrel cage motor (AC-3) 200-240V: 50 380-440V: 40 Rated operating current (A) Resistive load (AC-1) 200-240V: 60 380-440V: Open thermal current (rated current): 60A Auxiliary contact configuration: 1a1b (1No1NC) Terminal structure: Screw terminal Coil nominal voltage: AC100V Rated coil voltage/frequency: AC100V 50Hz/AC100~110V 60Hz Coil voltage color display: Green (standard voltage) Increase number of items displayed

[Features]● Electrical durability is 25 full cycles and mechanical durability is 1 million cycles, making it ideal for consumer equipment and light work that require low opening/closing frequency. ●Can be used in air conditioners, showcases, industrial washing machines, heaters, pumps, fans, compressors, dryers, etc. ●The minimum operating voltage is 75% of the rated coil voltage. ●A variety of terminal structures (screw terminals, tab terminals, printed board direct mounting terminals) are available depending on the application. (FC-0, 0S type)●Compliant standards・JIS C 8201-4-1, JEM1038・IEC 60947-4-1


Manufacturer: Fuji Electric Equipment Control
Part number: ‎FC-3 Coil AC100V 1A1B
Product weight: ‎480 g
Package size: ‎14.4 x 13.5 x 6.6 cm; 480 g
Style: ‎Voltage: AC100V Auxiliary contact: 1a1b(1No1NC) Standard Shape
Pattern: ‎FC-3
Battery use: ‎No
