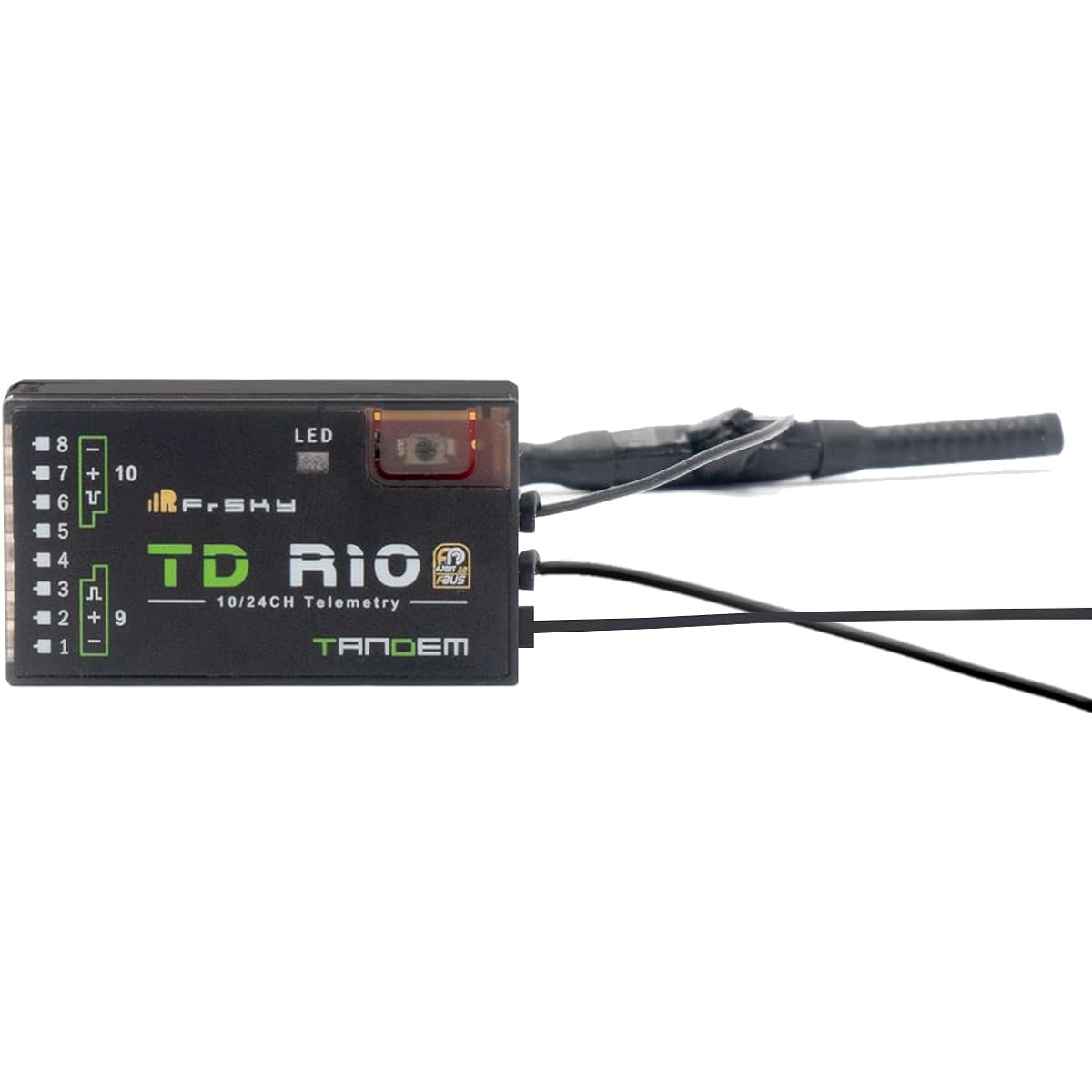

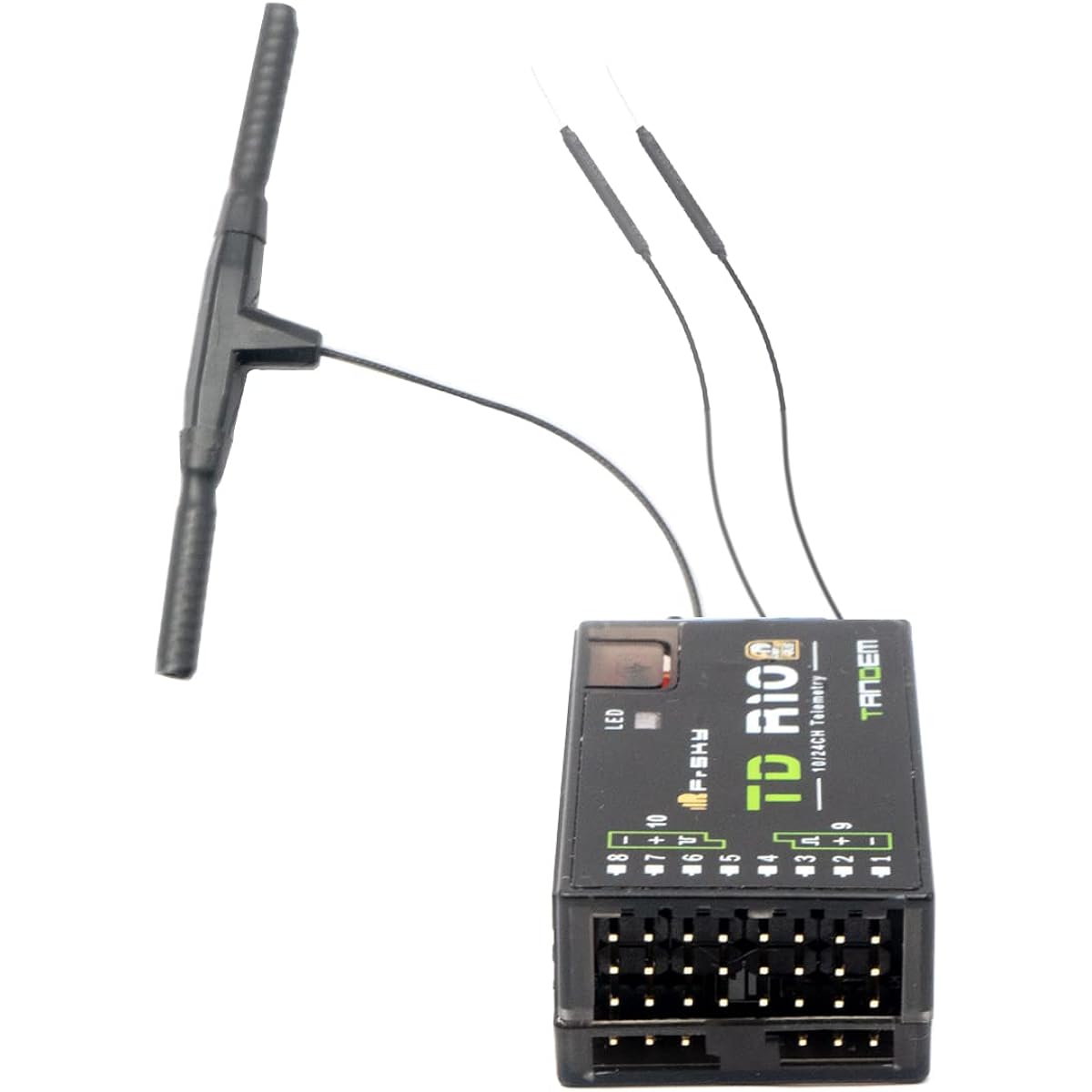

FrSky TD R10 Triple Antenna 900Mhz 2.4Ghz 10 Channels Supports Low Latency Signal and Long Range Receiver
FrSky TD R10 Triple Antenna 900Mhz 2.4Ghz 10 Channels Supports Low Latency Signal and Long Range Receiver
Regular price
$165.00 USD
Regular price
Sale price
$165.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Dual band TD mode triple antenna design working simultaneously allows multi-directional coverage Black box function Built-in voltage sensor 4ms Race mode Telemetry long control range (up to 50KM – 100KM) Over-the-air (OTA) FW update Supply current range (each port) ☛ Instantaneous current: 5A Continuous current: 3A 10 Configurable channel ports ☛ CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In CP2-10: PWM / SBUS Out / FBUS / S.Port Frequency: 2.4GHz & 900MHz Dimension: 46.5*26.3*14.7mm (L*W*H) Weight: 16.6g Working voltage: 3.5-10v DC Working current: ≤180mA@5V Compatibility: Tandem series transmitters & TD protocol compatible RF modules Triple 2.4G/900M antennas 2* External 2.4G Antenna (IPEX1)
Unlike other FrSky 2.4Ghz or 900Mhz receivers, the Tandem Dual Band Receiver can operate simultaneously on both 900Mhz and 2.4Ghz frequencies. This means that the Tandem receiver not only provides low latency signals and long range control, but also benefits from high reliability and improved anti-interference performance. Tandem series receivers feature a triple antenna design that provides multi-directional wide coverage for remote signals. During flight, abnormal status data (power and signal related) can be recorded by the Tandem receiver through the built-in black box module. Configurable 10 channel ports are a great feature of TD R10, each channel port can be assigned as PWM, SBUS, FBUS, S.Port. The FBUS protocol allows the Tandem series receiver to expand the possibilities of seamless pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.). Simplify assembly.
Unlike other FrSky 2.4Ghz or 900Mhz receivers, the Tandem Dual Band Receiver can operate simultaneously on both 900Mhz and 2.4Ghz frequencies. This means that the Tandem receiver not only provides low latency signals and long range control, but also benefits from high reliability and improved anti-interference performance. Tandem series receivers feature a triple antenna design that provides multi-directional wide coverage for remote signals. During flight, abnormal status data (power and signal related) can be recorded by the Tandem receiver through the built-in black box module. Configurable 10 channel ports are a great feature of TD R10, each channel port can be assigned as PWM, SBUS, FBUS, S.Port. The FBUS protocol allows the Tandem series receiver to expand the possibilities of seamless pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.). Simplify assembly.
