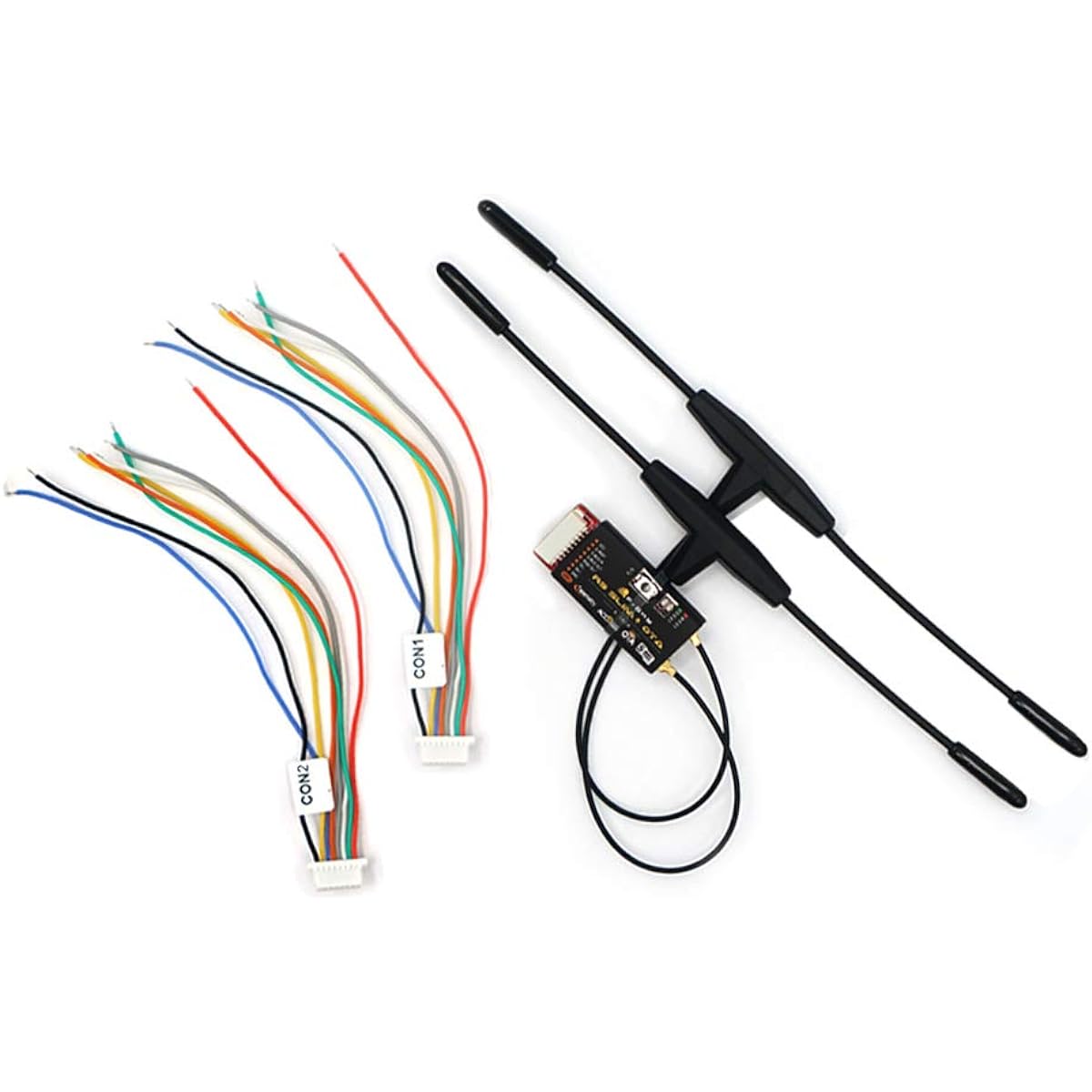

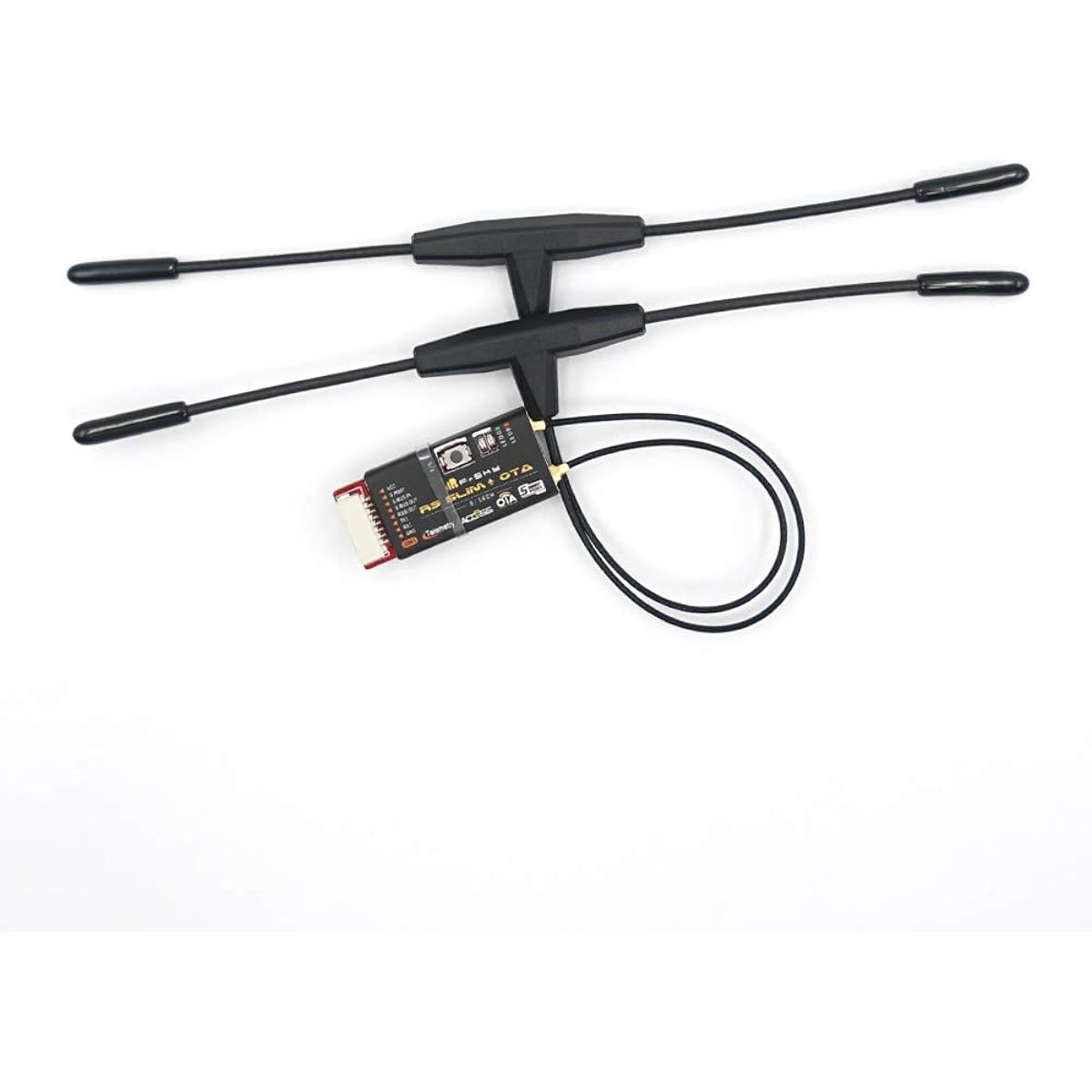

FrSky Access 900MHz Long Range R9 Slim+ OTA Receiver
FrSky Access 900MHz Long Range R9 Slim+ OTA Receiver
Regular price
$113.00 USD
Regular price
Sale price
$113.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Supports low latency and high accuracy battery voltage detection. Removable Ipex1 connector antenna. Reverse SBUS and S.port output. Access protocols and support OTA functionality.
The 900MHz R9 Slim+ OTA receiver implements the ACCESS protocol and supports wireless firmware updates, making binding to the receiver even easier. Useful as well as checking the current receiver firmware version. R9 Slim+ OTA is designed with dual antennas to improve signal strength. The compact form factor design features 6 PWM outputs and incorporates reverse SBUS and S.Port outputs to make this long-range receiver work flexibly with external devices. Specifications Dimensions: 32 x 13.5 x 5mm (Length x Width x Height). Weight: 4.3g (including antenna) Number of channels. Non-LBT version: 6/16CH (telemetry). LBT version: 6/16CH (telemetry) / 6/16CH (no telemetry) RSSI output: Analog 0~3.3V. Operating voltage range: DC 3.5V~12.6V (1~3s Li-Battery) Operating current: 100mA@5V. Operating range: up to 10km or more. Compatibility: R9M 2019/R9M Lite/R9M lite Pro, ACCESS firmware. Features Supports access protocols and OTA functions. Low latency, high precision Compatible with S.Port / F.Port (configurable in OpenTX / FrOS menu). Reverse SBUS and S.Port output. Supports battery voltage detection. Removable Ipex1 connector antenna.
The 900MHz R9 Slim+ OTA receiver implements the ACCESS protocol and supports wireless firmware updates, making binding to the receiver even easier. Useful as well as checking the current receiver firmware version. R9 Slim+ OTA is designed with dual antennas to improve signal strength. The compact form factor design features 6 PWM outputs and incorporates reverse SBUS and S.Port outputs to make this long-range receiver work flexibly with external devices. Specifications Dimensions: 32 x 13.5 x 5mm (Length x Width x Height). Weight: 4.3g (including antenna) Number of channels. Non-LBT version: 6/16CH (telemetry). LBT version: 6/16CH (telemetry) / 6/16CH (no telemetry) RSSI output: Analog 0~3.3V. Operating voltage range: DC 3.5V~12.6V (1~3s Li-Battery) Operating current: 100mA@5V. Operating range: up to 10km or more. Compatibility: R9M 2019/R9M Lite/R9M lite Pro, ACCESS firmware. Features Supports access protocols and OTA functions. Low latency, high precision Compatible with S.Port / F.Port (configurable in OpenTX / FrOS menu). Reverse SBUS and S.Port output. Supports battery voltage detection. Removable Ipex1 connector antenna.
