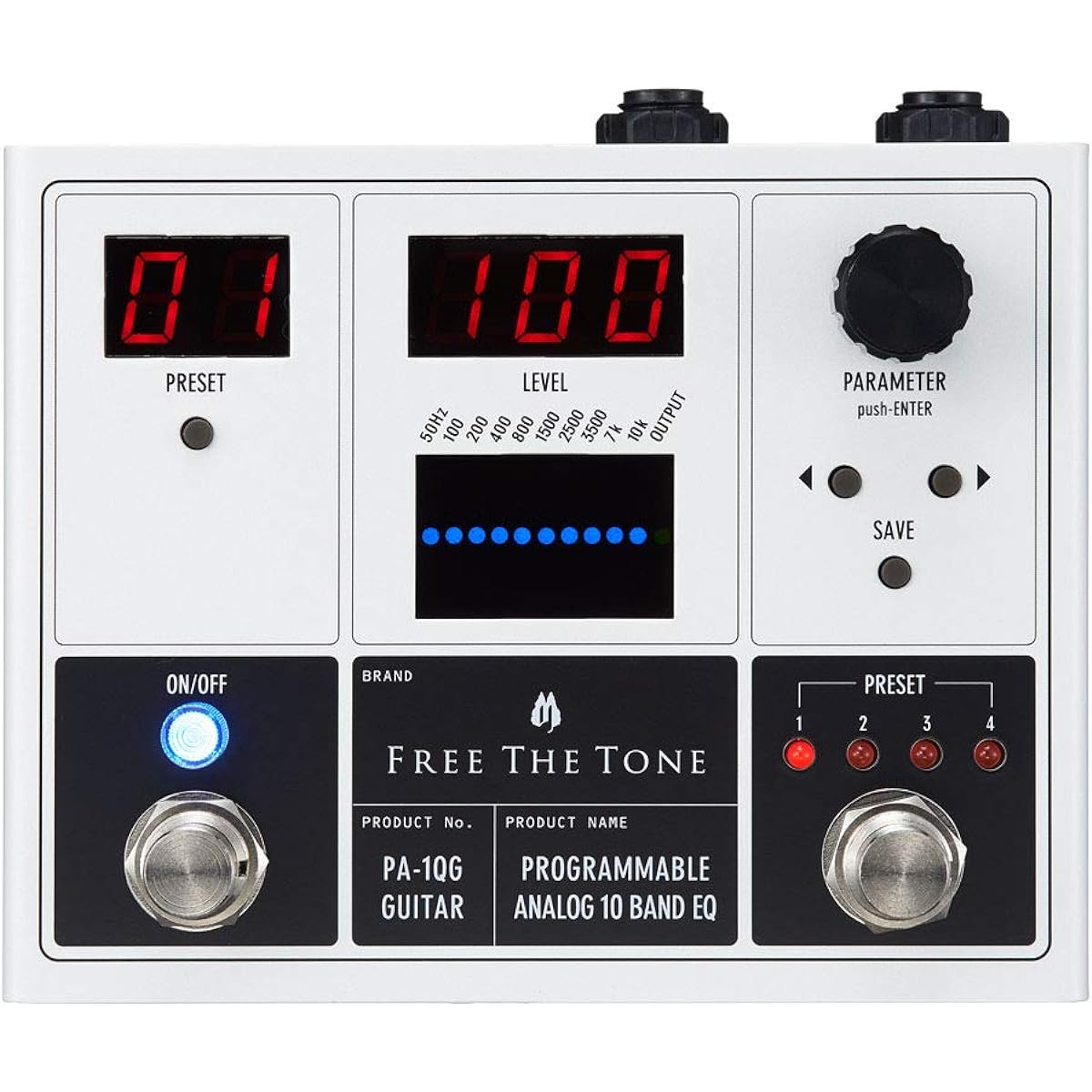

FREE THE TONE PA-1QG Graphic Equalizer/Guitar FREE THE TONE

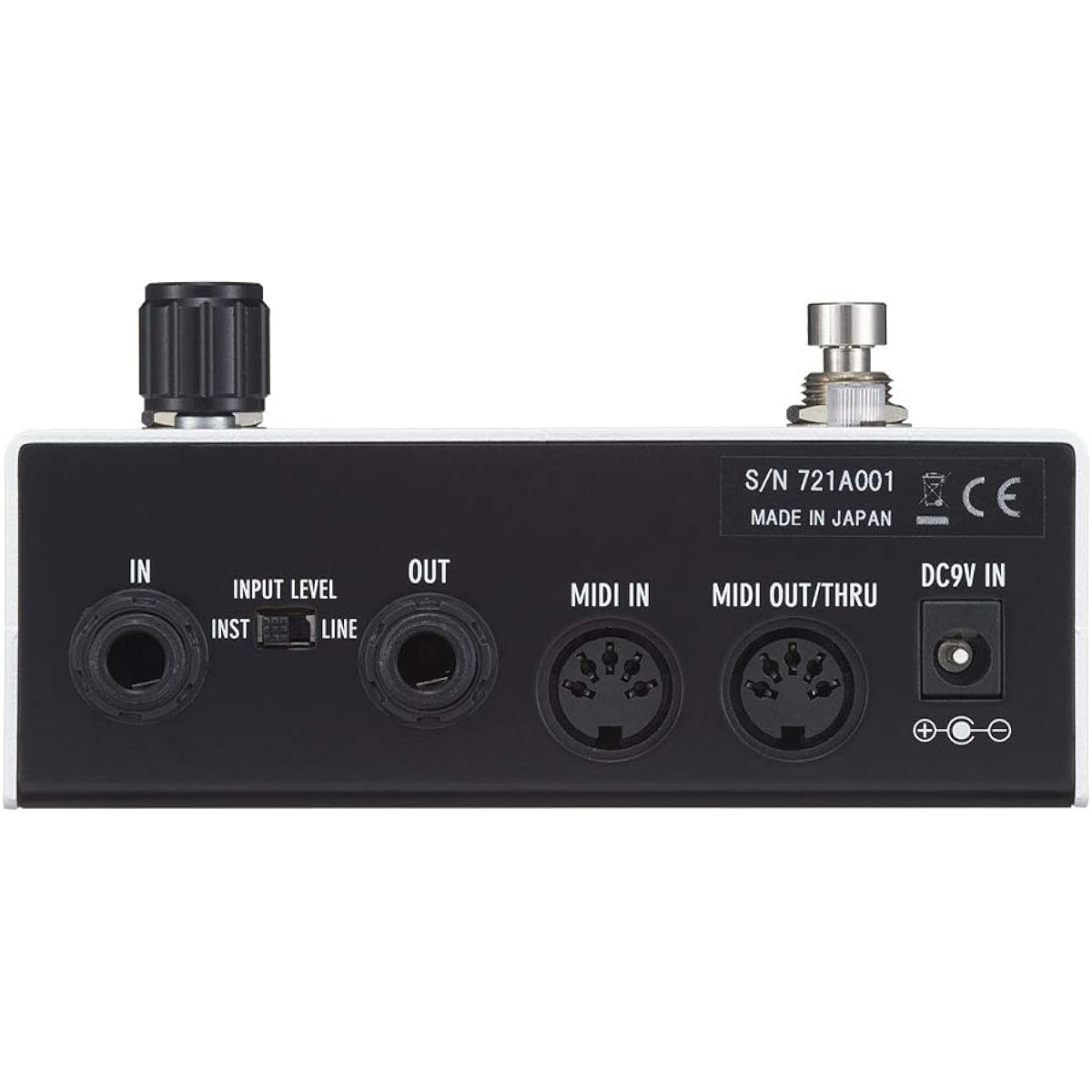

Number of presets: 99 Input impedance: INST 1MΩ or more/LINE 300kΩ or more Output load impedance: 10kΩ or more Maximum input level: INST+4dBm/LINE+14dBm (EQ setting = flat) Controls: Cursor keys, PARAMETER encoder, INST(- 10dB)/LINE (+4dB) level selector switch Frequency: 50Hz, 100, 200, 400, 800, 1500, 2500, 3500, 7K, 10K (+/ 12dB) Terminal: 1/4 inch standard phone jack x 2 ( input, output), DC9V input jack (for AC adapter connection), DIN5PIN connector 2 (MIDIIN, OUT/THRU) Power supply: DC9V dedicated AC adapter (FA-0905D-JA) Current consumption: 200mA Size: 120 (W) x 102. 3(D)x58.5(H)mm (including protrusions such as foot switches and jacks)
