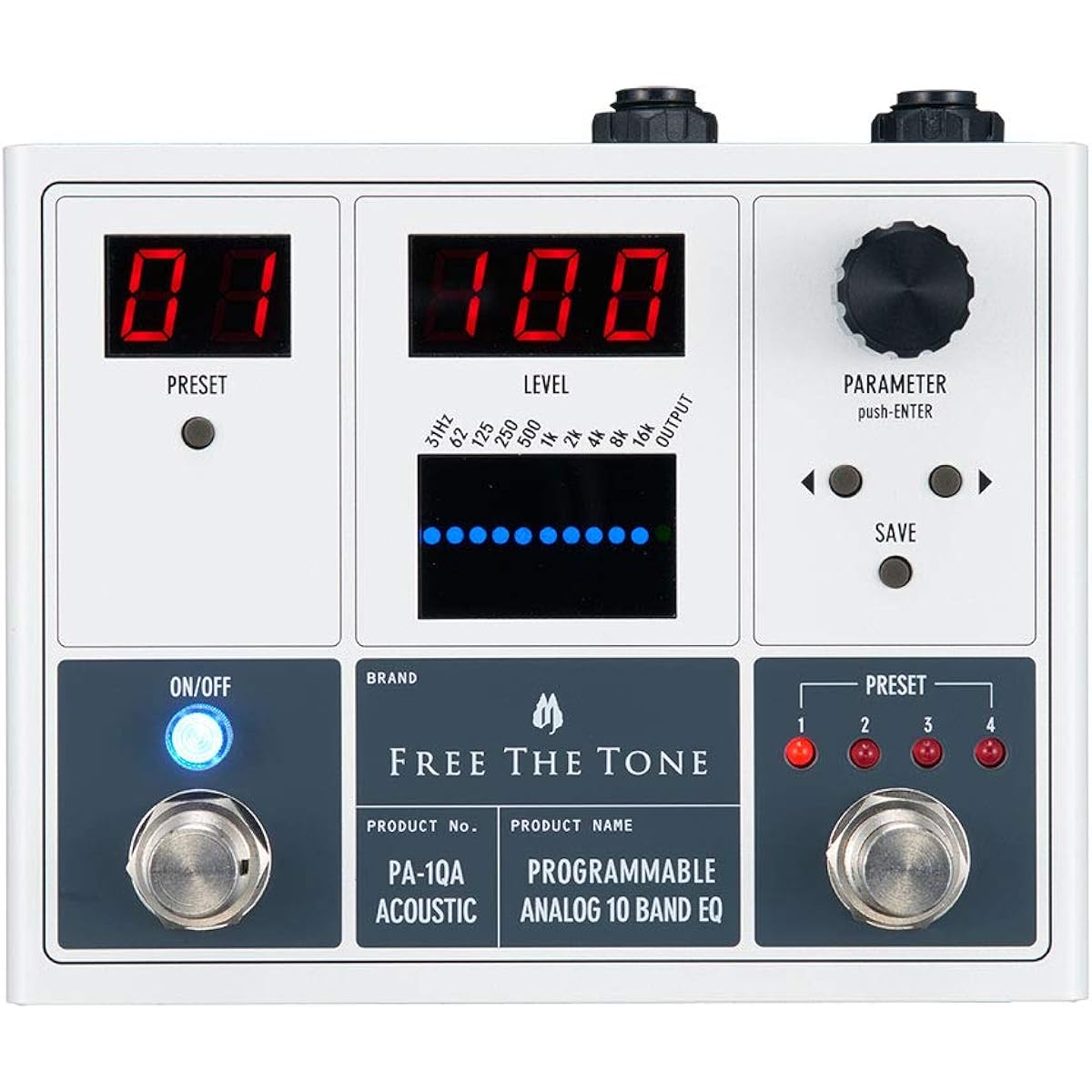

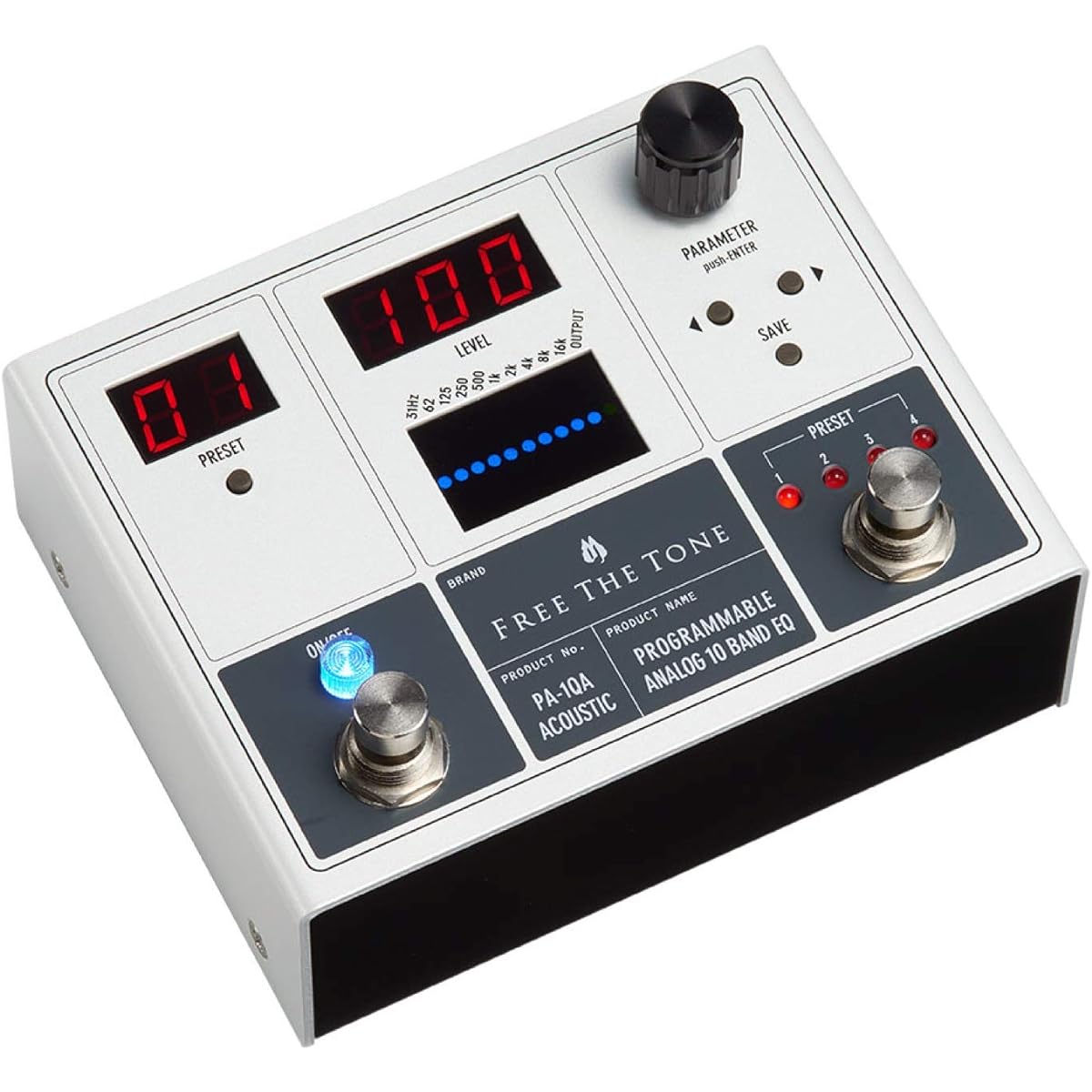

Free The Tone PA-1QA PROGRAMMABLE ANALOG 10 BAND EQ Acoustic Effects

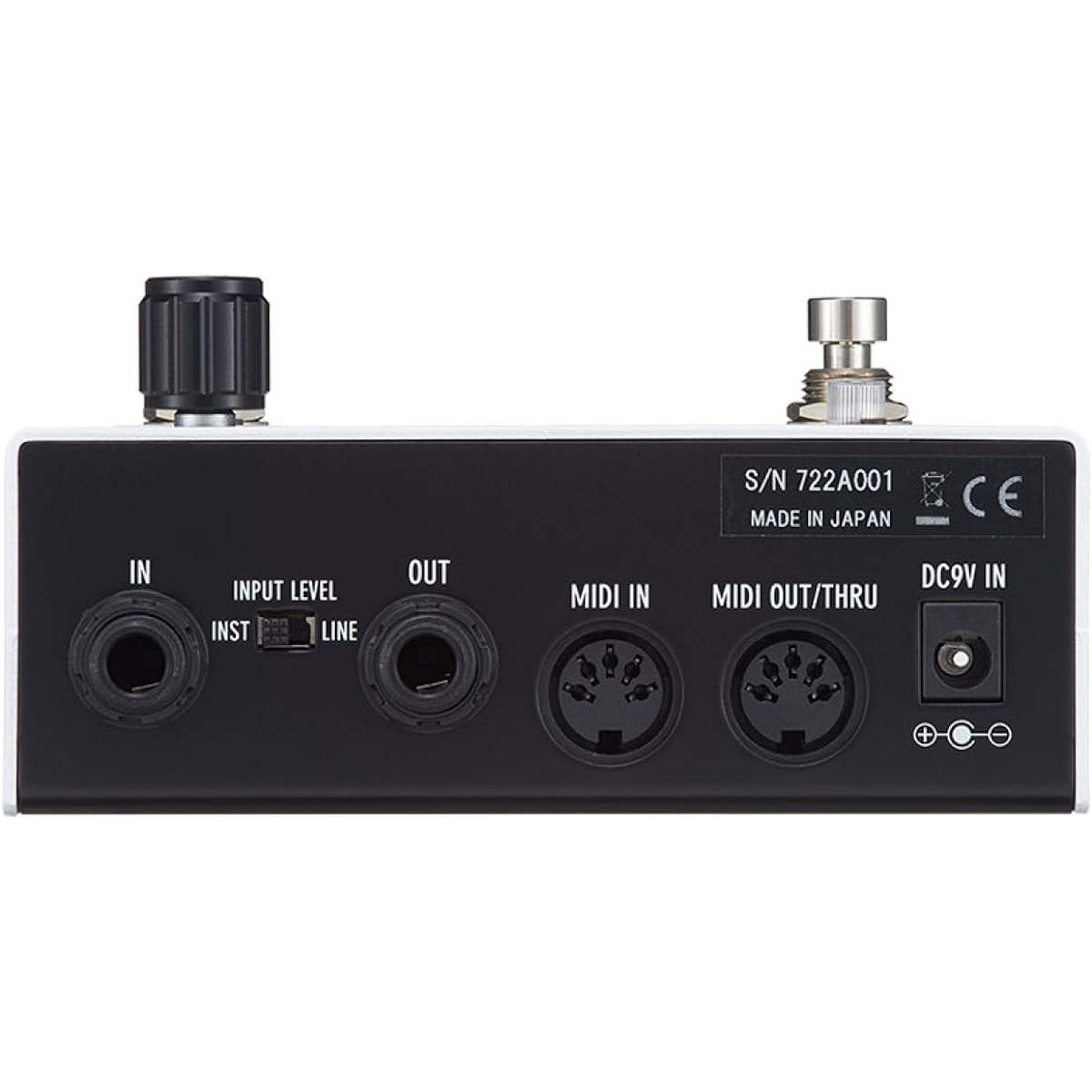

● Number of presets: 99 ● Input impedance: INST 1 MΩ or more / LINE 300 kΩ or more ● Output load impedance: 10 kΩ or more ● Maximum input level: INST + 4 dBm / LINE + 14 dBm (EQ setting = flat) ● Controls: Cursor keys, PARAMETER Encoder, INST (-10dB)/LINE (+4dB) level selector switch ●Frequency PA-1QG: 50Hz, 100, 200, 400, 800, 1500, 2500, 3500, 7K, 10K (+/ 12dB) ●Frequency PA- 1QB: 40Hz, 80, 125, 250, 500, 800, 1200, 2400, 4500, 8K (+/ 12dB) Frequency PA-1QA: 31Hz, 62, 125, 250, 500, 1K, 2K, 4K, 8K, 16K (+/ 12dB) ●Terminal: 1/4 inch standard phone jack x 2 (input, output), DC9V input jack (for AC adapter connection), DIN5PIN connector 2 (MIDIIN, OUT/THRU) ●Power supply: DC9V only AC adapter (FA-0905D-JA)
