FPVDrone CF2822 1200kv Motor Propeller Saver + 30A BLheli ESC + SG90 Servo + 8060 Propeller for RC Airplane Plane
FPVDrone CF2822 1200kv Motor Propeller Saver + 30A BLheli ESC + SG90 Servo + 8060 Propeller for RC Airplane Plane
Regular price
$108.00 USD
Regular price
Sale price
$108.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

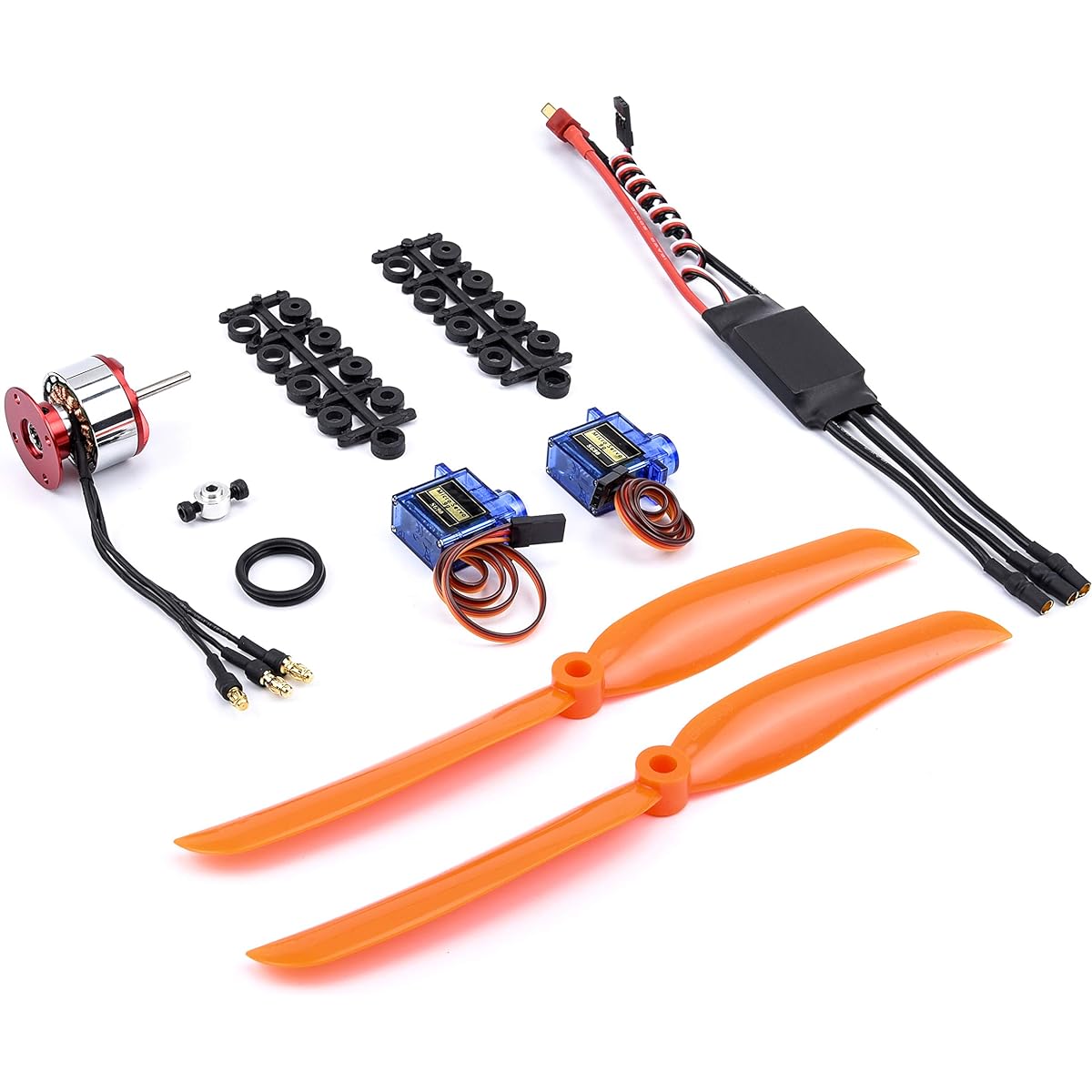

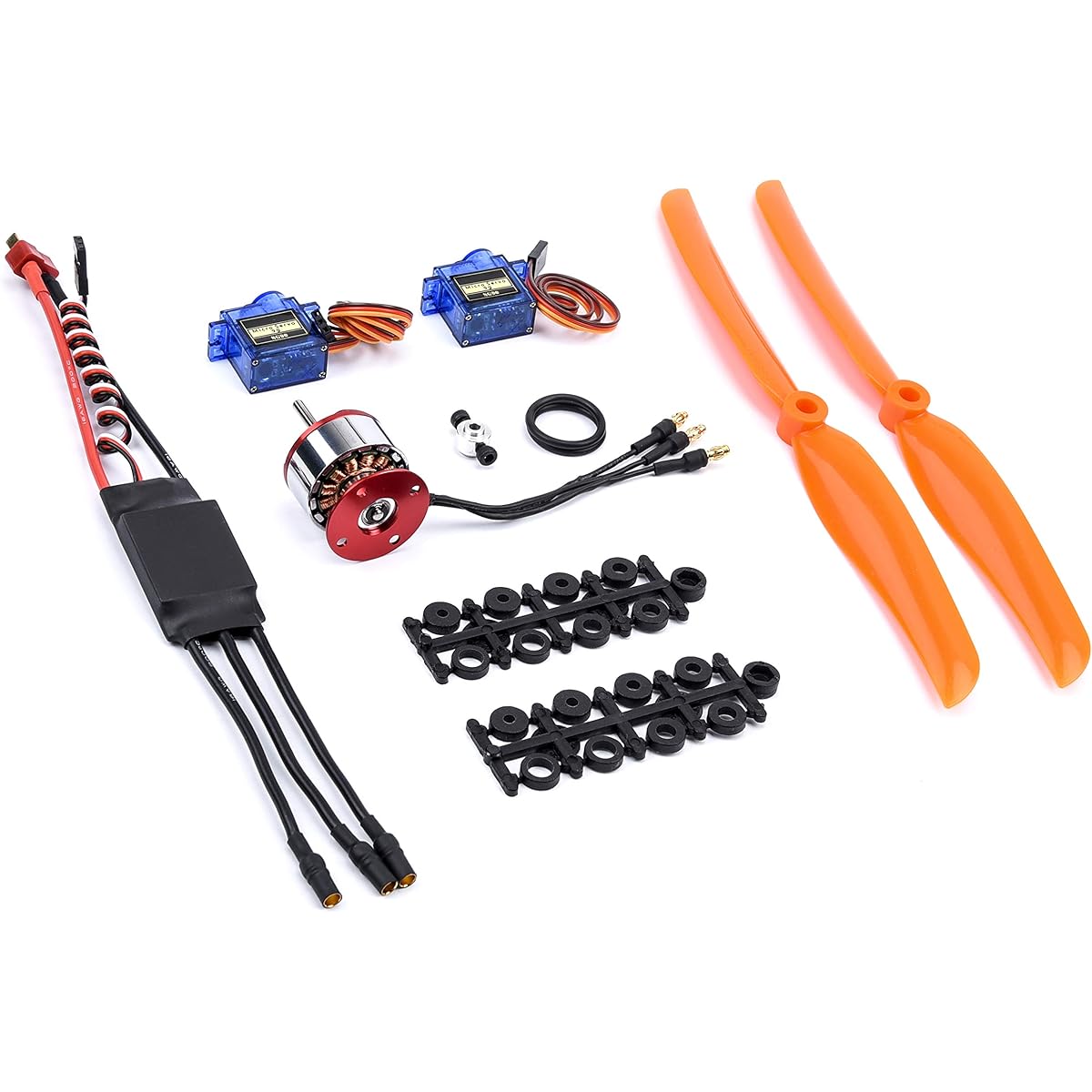

Brushless Motor; Model: CF2822; KV: 1200KV. SG90 9G Micro Servo Working Voltage: 4.8V-6V. 30a BEC Output: Linear Mode: 5V, 2A, Battery Section: 2-3S LiPo. Perfect for RC Glider Quadcopter Helicopter, Aircraft, Quadcopter, Multicopter. What You Get: 1 x CF2822 1200kv Brushless Motor, 30A Brushless ESC, 2 x 8060 Propellers, 2 x SG90 Servo.
Brushless Motor CF2822 for Airplane No. Cell Count: 2-3 Lithium Polymer. RPM/V (kv): 1200 Max. Efficiency: 82% Max. Efficiency Current: 7-16A (>75%). No Load Current/10V: 0.9A Current Capacity: 16A/60s. Maximum thrust 740g/26oz. Maximum wattage 203W. Internal resistance: 0.15 ohms. Stator dimensions: 22x10mm. Shaft diameter: 3mm Recommended model weight: 300-800g. Recommended propeller without gearbox: 8-10 inches. 30A BLheli ESC: Continuous/peak current: 30A Number of battery sections: 2-3S LiPo. BEC output: Linear mode: 5V, 2A. Power cord: Red-16AWG-100mm*1; Black-16AWG-100mm*1 Output line: 190mm. Power plug: T plug (can be customized according to requirements) Output plug: 3.5Mm banana connection (female) SG90 servo parameters Size: 21.5mmX11.8mmX22.7mm. Weight: 9g. No-load speed: 0.12sec/60 degree(4.8V) Stall torque: 1.5-1.7kg/cm(4.8V-6V) Operating temperature: -30+60 degree Celsius. Dead zone setting: 5 microseconds. Operating voltage: 4.8V-6V. Recommended models: Minicar, Miniship, Helicopter, Airplane. Package includes: 1 x CF2822 1200kv Brushless Motor. 1 x Brushless 30A ESC. 2 x 8060 Propellers. 2 x SG90 Servos.
Brushless Motor CF2822 for Airplane No. Cell Count: 2-3 Lithium Polymer. RPM/V (kv): 1200 Max. Efficiency: 82% Max. Efficiency Current: 7-16A (>75%). No Load Current/10V: 0.9A Current Capacity: 16A/60s. Maximum thrust 740g/26oz. Maximum wattage 203W. Internal resistance: 0.15 ohms. Stator dimensions: 22x10mm. Shaft diameter: 3mm Recommended model weight: 300-800g. Recommended propeller without gearbox: 8-10 inches. 30A BLheli ESC: Continuous/peak current: 30A Number of battery sections: 2-3S LiPo. BEC output: Linear mode: 5V, 2A. Power cord: Red-16AWG-100mm*1; Black-16AWG-100mm*1 Output line: 190mm. Power plug: T plug (can be customized according to requirements) Output plug: 3.5Mm banana connection (female) SG90 servo parameters Size: 21.5mmX11.8mmX22.7mm. Weight: 9g. No-load speed: 0.12sec/60 degree(4.8V) Stall torque: 1.5-1.7kg/cm(4.8V-6V) Operating temperature: -30+60 degree Celsius. Dead zone setting: 5 microseconds. Operating voltage: 4.8V-6V. Recommended models: Minicar, Miniship, Helicopter, Airplane. Package includes: 1 x CF2822 1200kv Brushless Motor. 1 x Brushless 30A ESC. 2 x 8060 Propellers. 2 x SG90 Servos.
