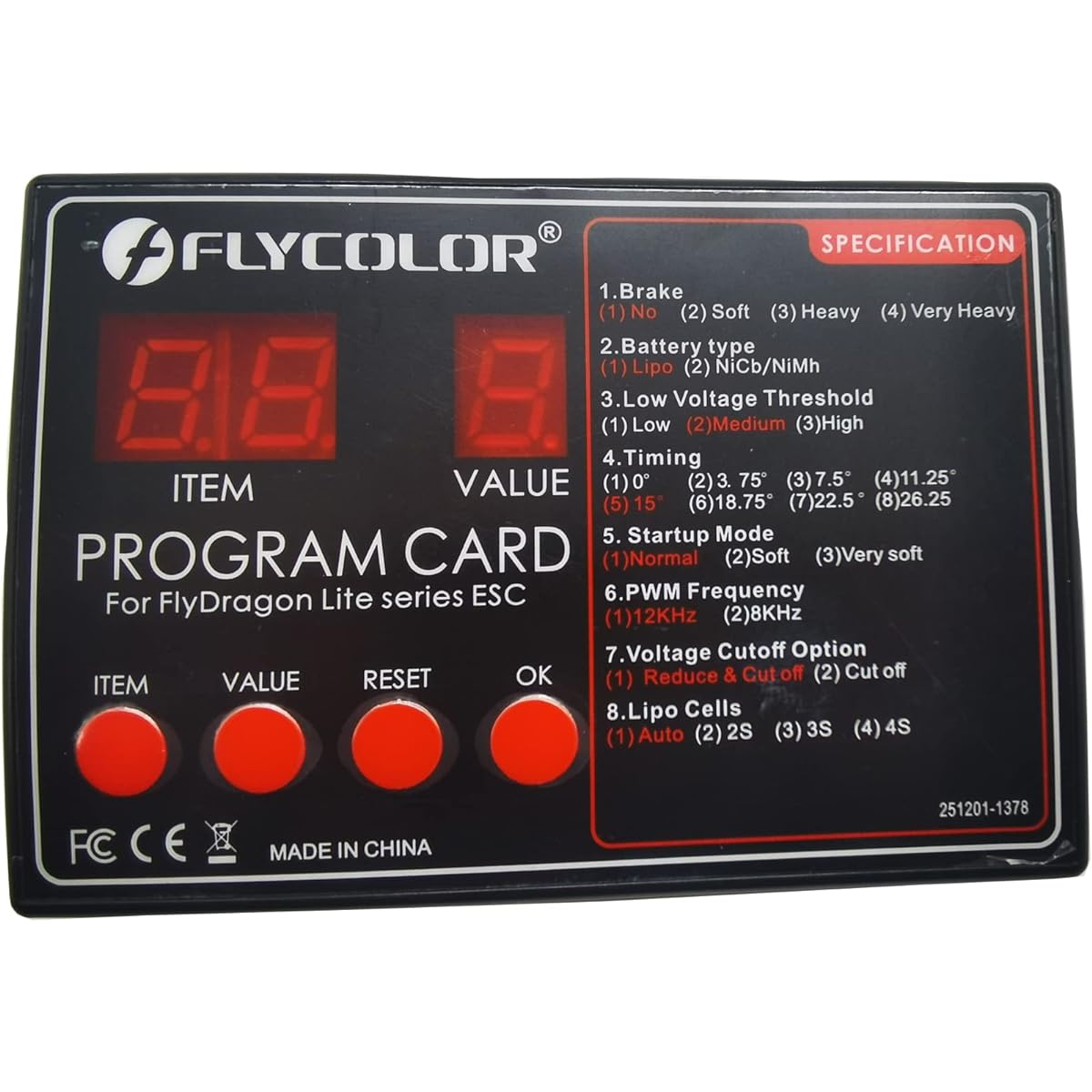

FLYCOLOR Programming Card for FlyDragon Lite Series ESC (40A/50A/60A/80A)

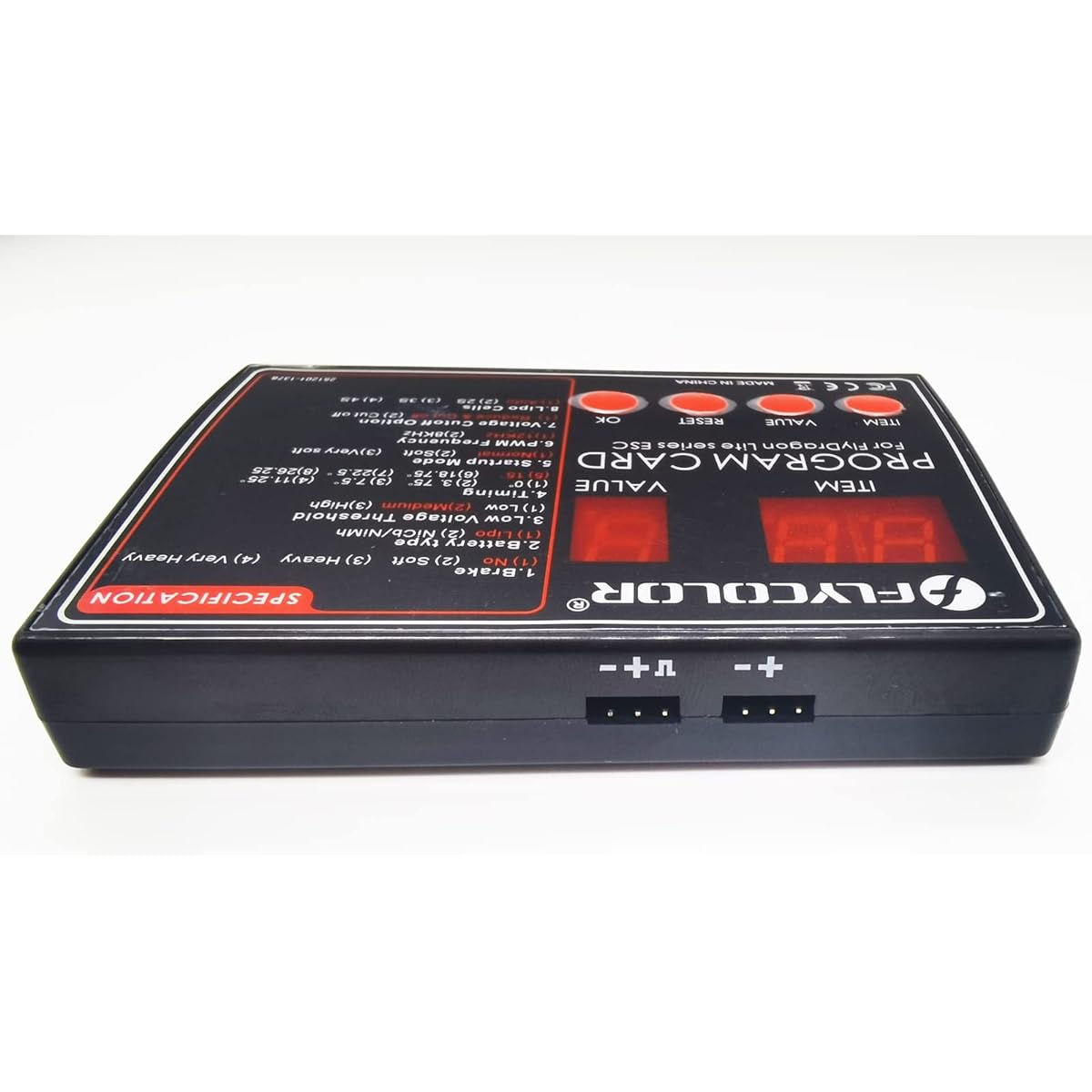

FlyDragon Lite series ESC ASIN 40A(B09L5YCWRF), 50A(B09L5Z7GV7), 60A(B09PNFKH23), 80A(B09L5Y88QD). Using the ESC programming card to program is the most convenient choice. Just insert the ESC signal cable into the (+ -) port of the programming card. (Note: 1. If the ESC is without BEC, please supply 5V-8.4VDC to the programming card. 2. First insert the ESC signal cable into the programming card and power on the ESC). Press the [ITEM] button to select the desired item Press the [VALUE] button to select the parameter value of the desired item Press the [OK] button, the VALUE window will display "S", which means this value has been saved. Press [RESET] to restore the factory default value, then press [OK].

Specification: Rated voltage: 5V-8.4V. Weight: 46g. Dimensions (approximate): 95x66.5x16.3mm. Application: FlyDragon Lite ESC.
