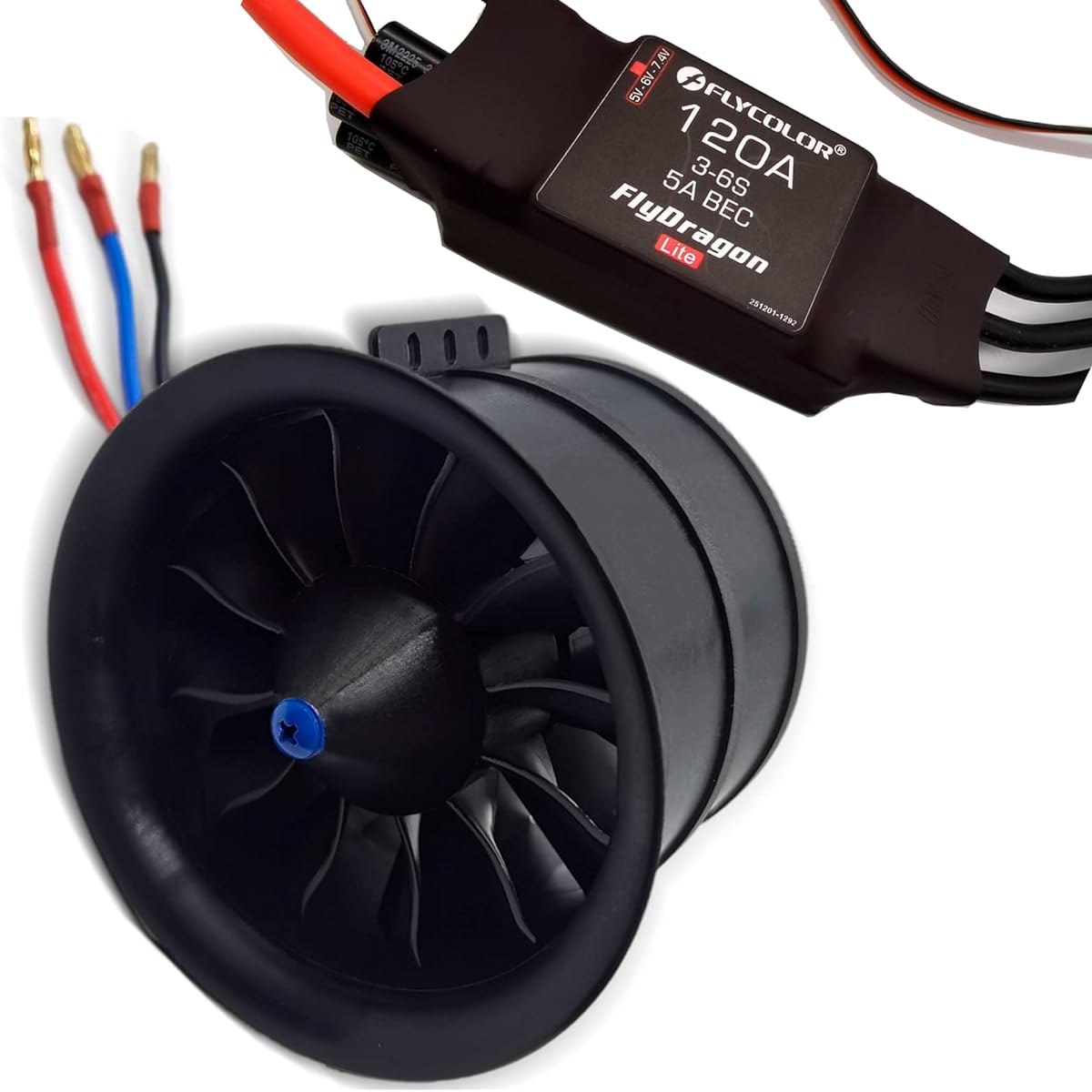

FLYCOLOR 90mm EDF 12 Blade Ducted Fan with 1450KV RC Brushless Motor 120A ESC 3-6S Electric Speed Controller for RC Jet Airplane

Advantages: All EDFs with motors have already been dynamic balance tested. Runs smoothly, easy to cool, stable structure, safe and durable, excellent realistic sound. Makes the plane more efficient and stable. All motors are soldered with banana plugs. Main parameters: 90mm EDF with 1450KV/6S motor: Maximum continuous current is 124A, Maximum thrust is 3790g. Motor weight 224g. Therefore, 120A ESC and 6s battery are recommended. Motor: Motor continuous operation, high temperature resistance, wear resistance, stability, anti-aging and durable. Premium motor provides stable and balanced operation during continuous work. Features: Using C8051F850 MCU, pipelined 8-bit C8051 core. FlyDragon Lite series, unique circuit design, built-in 5V/6V/7.4V, 5A adjustable BEC, you can select by switch as you need (default 5V. Please make sure the BEC voltage is correct before connection. ). The start mode can be set, the throttle response is fast, and the speed control is linearly smooth. Strong anti-interference.

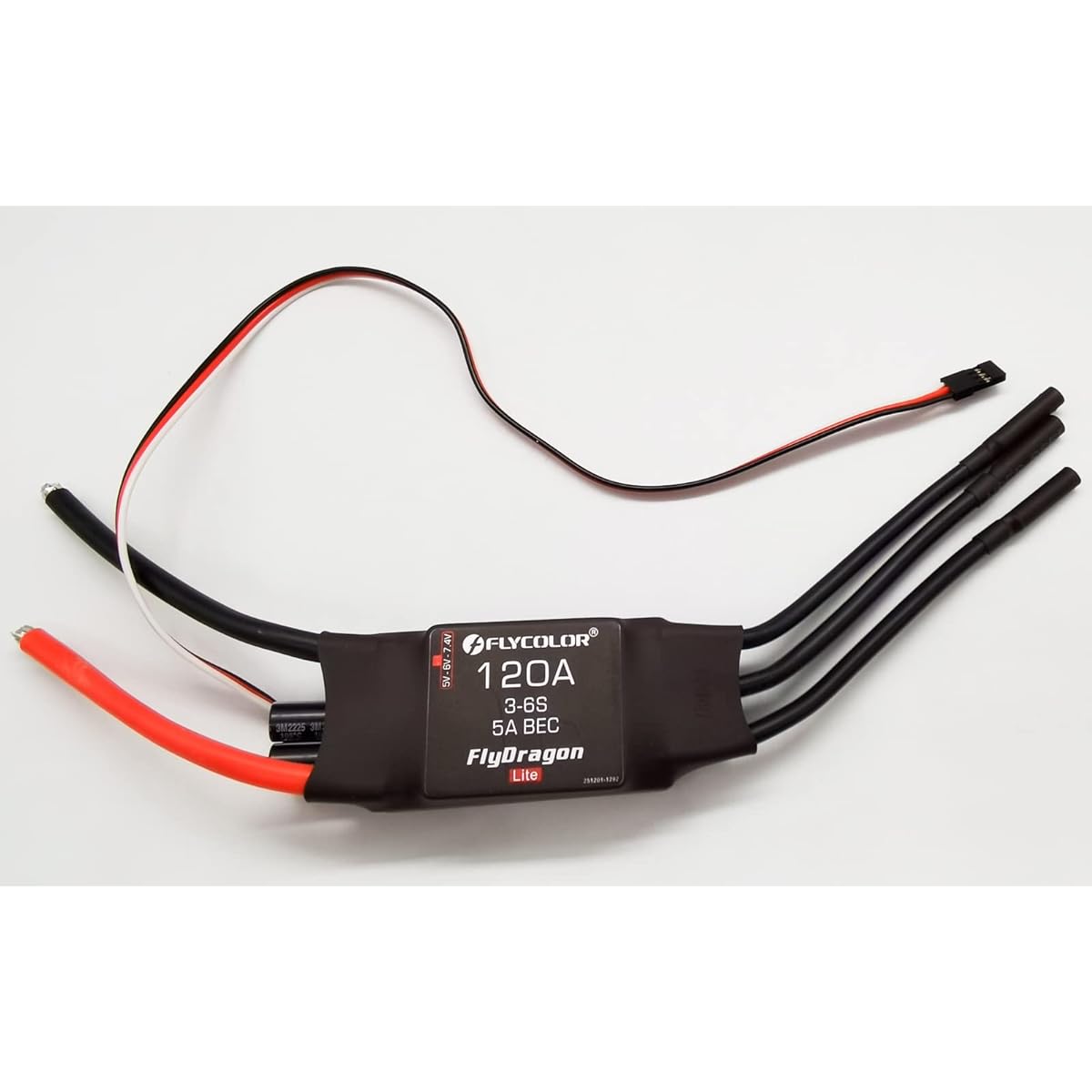

EDF parameters: Material: PA66+GF Gold-plated connector: Φ4.0 KV: 1450KV Motor weight: 224g Housing weight: 145g Maximum voltage: 25.2V Maximum current: 124A Maximum power: 3125W Maximum thrust: 3790g Set weight: 379g Diameter: 90mm ESC parameters: Continuous output: 120A Burst output: 120A for 15 seconds UBEC: 5V/6V/7.4/5A Lipo battery: 3~6s (cells) NiCd/NiMH: 5-18 cells Voltage input: 11.1v - 22.2V Size: 82mm x 36mm x 25mm. Weight: 143g Motor Type: Brushless Motor Package Contents 1 x 90MM EDF 1 x 120A ESC


Manufacturer: FLYCOLOR
Model: 90EDF+120A
Package Size: 20.6 x 18.1 x 15.6 cm
Size: 90MM EDF + 120A ESC
Voltage(V): 25.2 Volts
Package Weight: 0.68 Kg
Battery Used: Yes
Batteries Included: No
Brand Name: FLYCOLOR
Item Weight: 1.2 lbs
