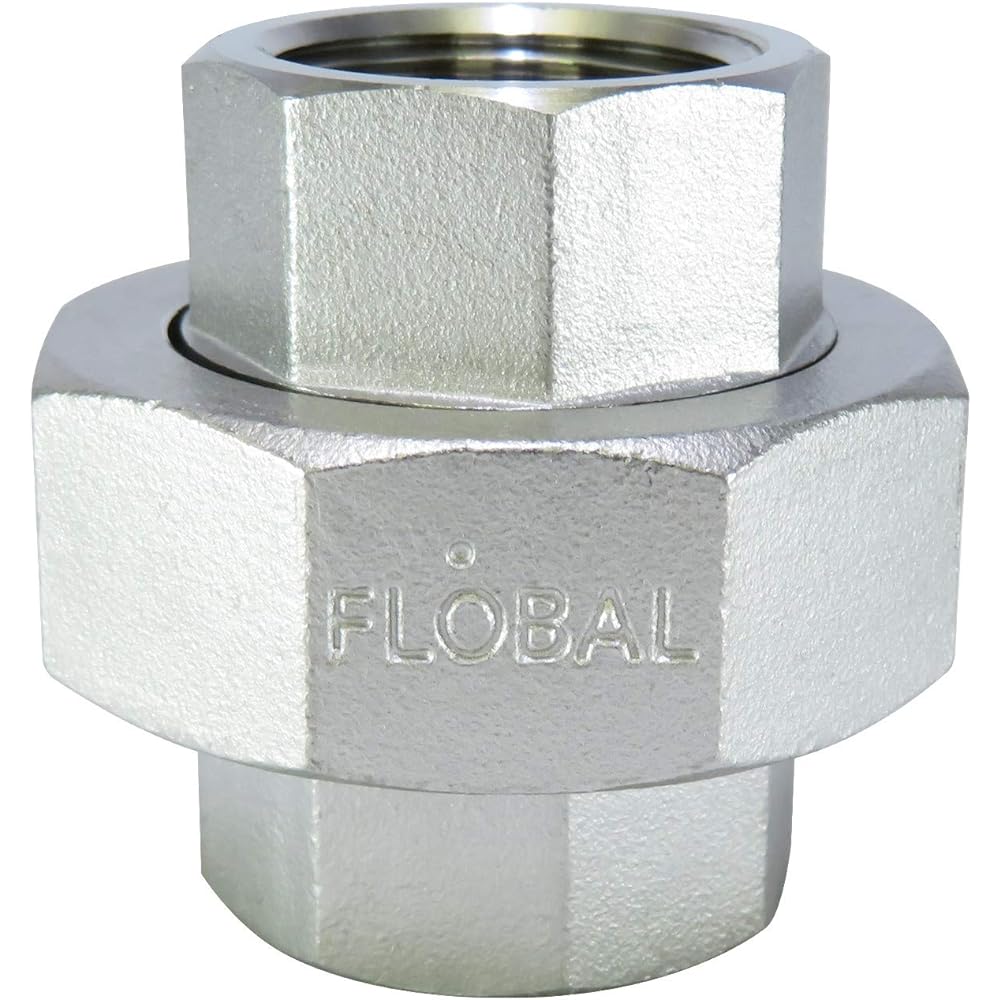

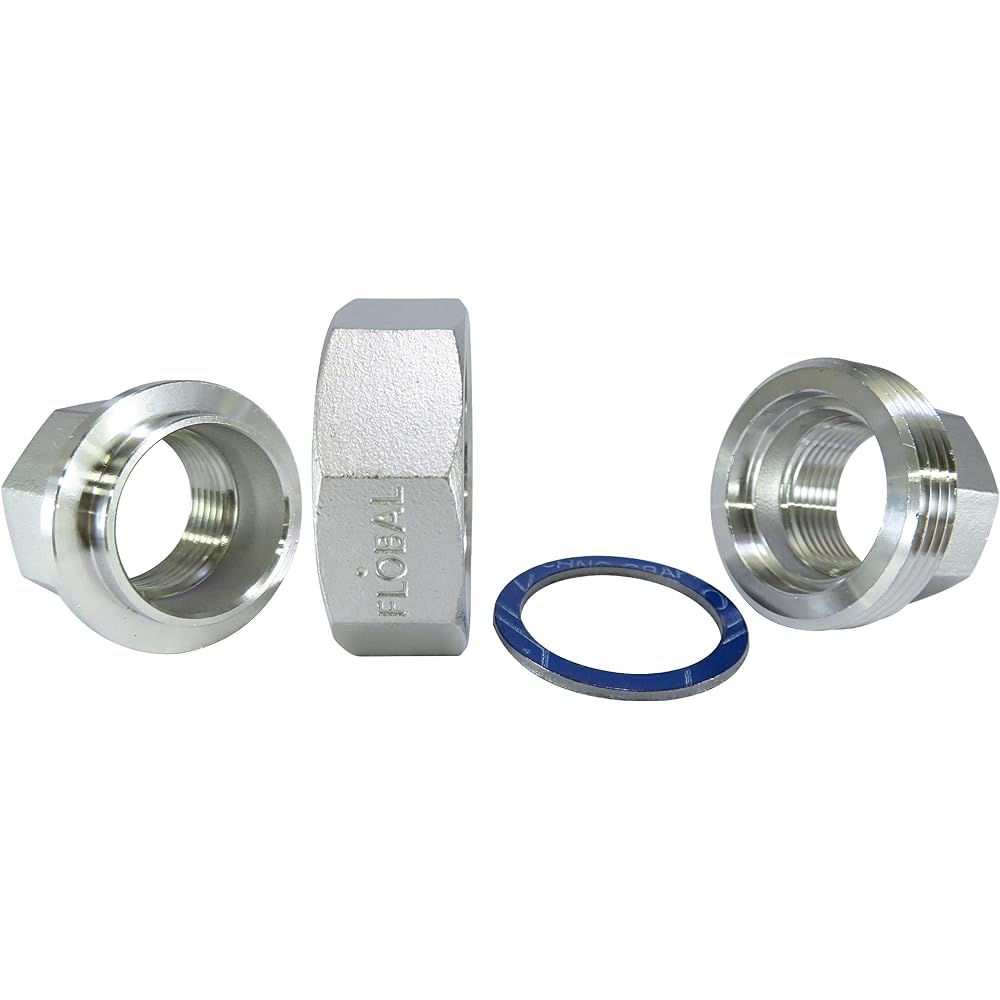

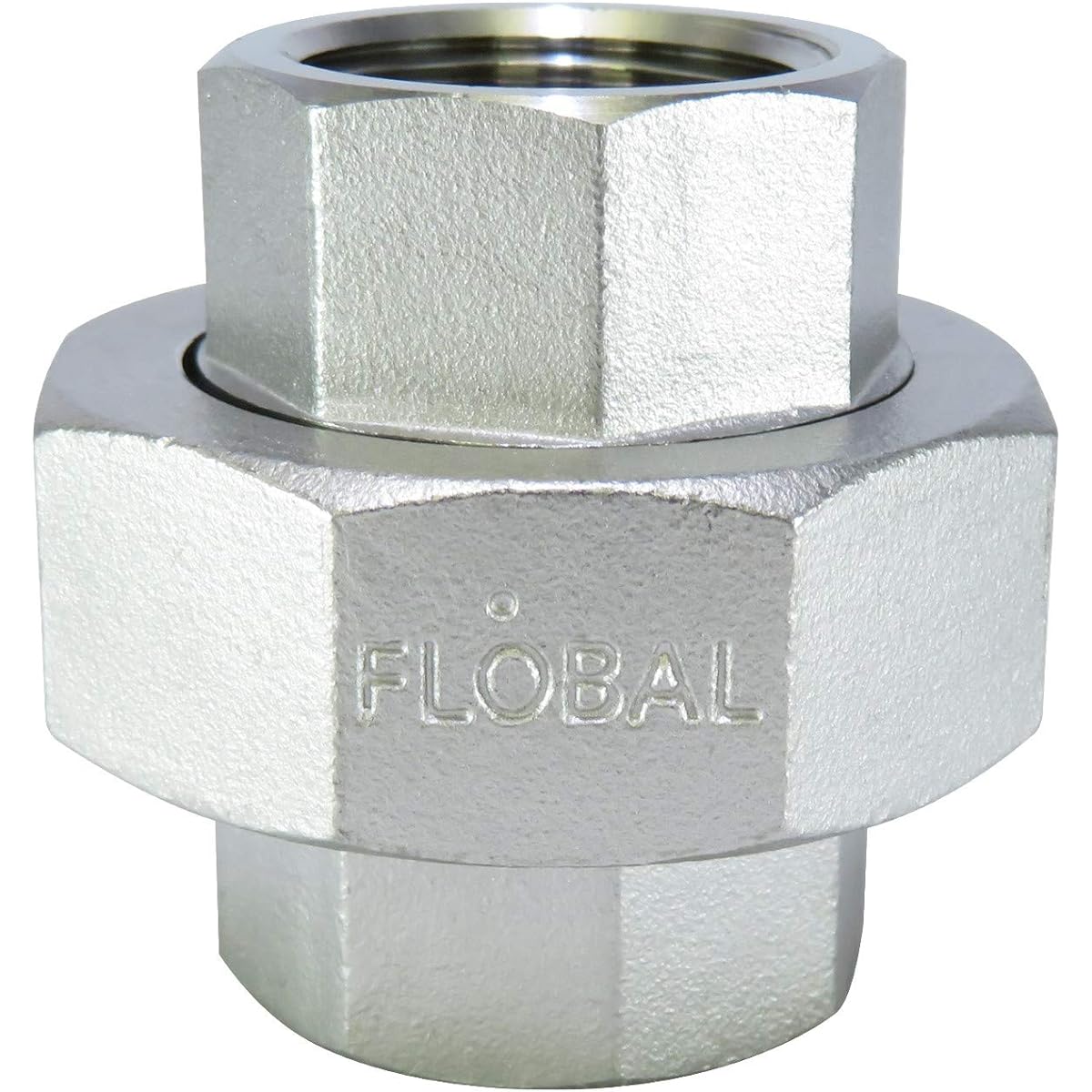

Floval Union (SCS13A) 04100511 VU24

●In response to the increasing demand for stainless steel piping ●This has been developed as an easier-to-use fitting that has been further upgraded from the conventional screw-in fitting and comes in a wide variety of sizes. ●Nominal diameter (A): 80●Nominal diameter (B): 3 ●Applicable standards: JIS B2301, JIS B0203 compliant ●Maximum working pressure: 1.0MPa (air/gas/oil below 200℃), 2.0MPa (-20 ℃~120℃ or below), but steam is 0.5MPa or less (up to 150℃) ●Fluid used: water, air, gas (*), oil, steam *Gas excludes toxic, flammable, and combustion-supporting gases. ●SCS13A

●For steam, air, gas, and oil. ●For steam, air, gas, and oil.


Brand: ‎Flowval
Product model number: ‎VU24
Package size: ‎10 x 10 x 10 cm; 1 kg
Material: ‎Stainless steel
Quantity : ‎1
Use: ‎Union
Product weight: ‎1 Kilograms
