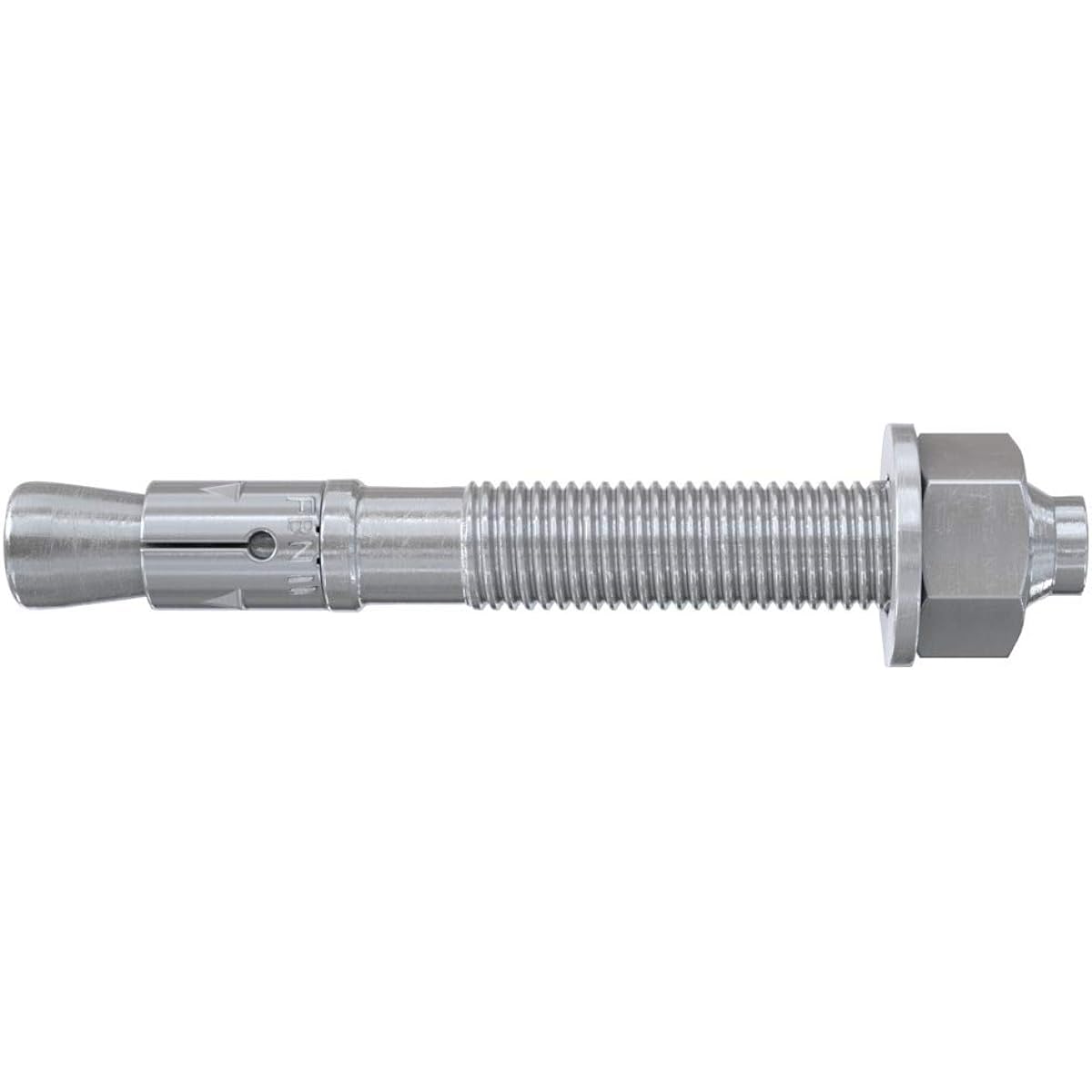

Fisher bolt anchor FBN2 8/10 A4 50 pieces 507555
Fisher bolt anchor FBN2 8/10 A4 50 pieces 507555
Regular price
$116.00 USD
Regular price
Sale price
$116.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

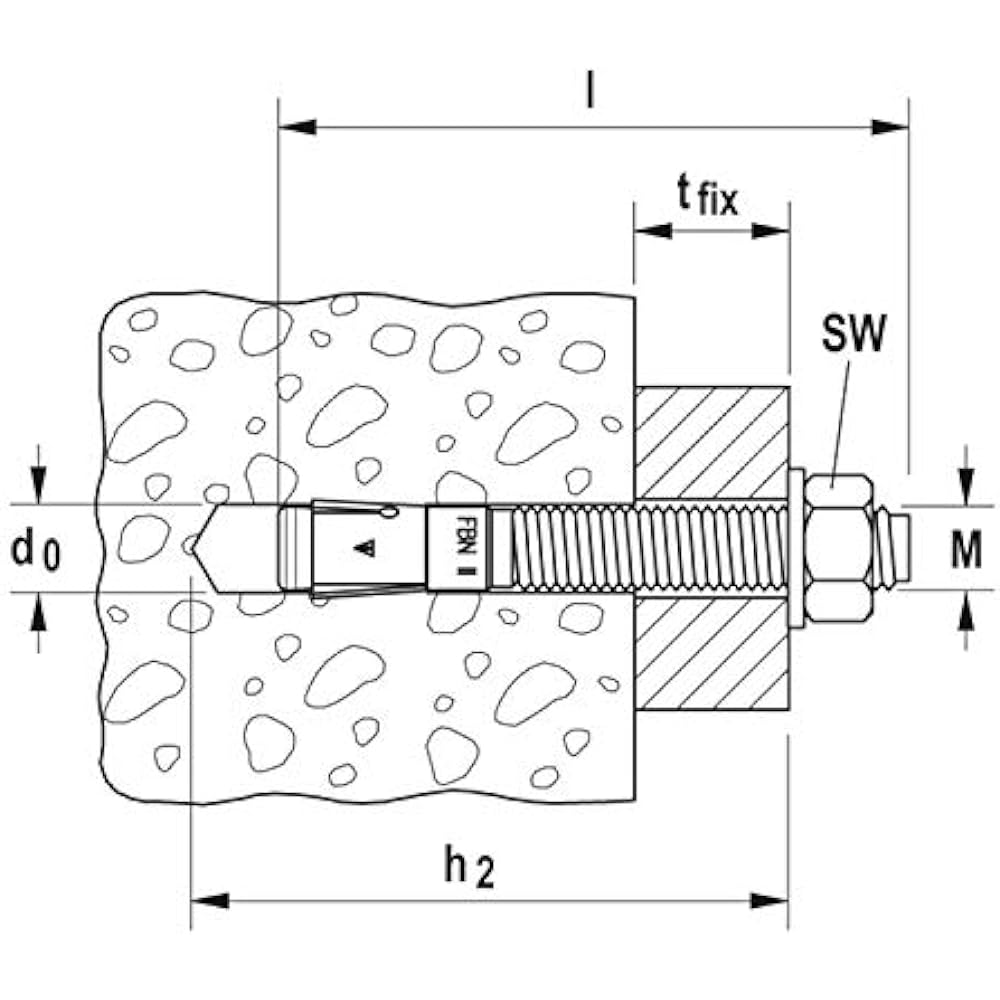

Thread designation: M8 Embedment depth (mm): 66 Pilot hole diameter (mm): 8 Maximum tensile load (kN): 6.1 Total length (mm): 71 Drill diameter (mm): 8 Thread length (mm) ):39
Maximum installation thickness (mm): 10 Effective embedment depth (mm): 40, Standard construction torque (N m): 10.0, Maximum tensile load (kN): 6.1, Maximum shear load (kN): 7.3, Boxed Number (pieces): 50, European technical certification (ETA-07/0211), stainless steel (equivalent to SUS316) Increase number of items displayed

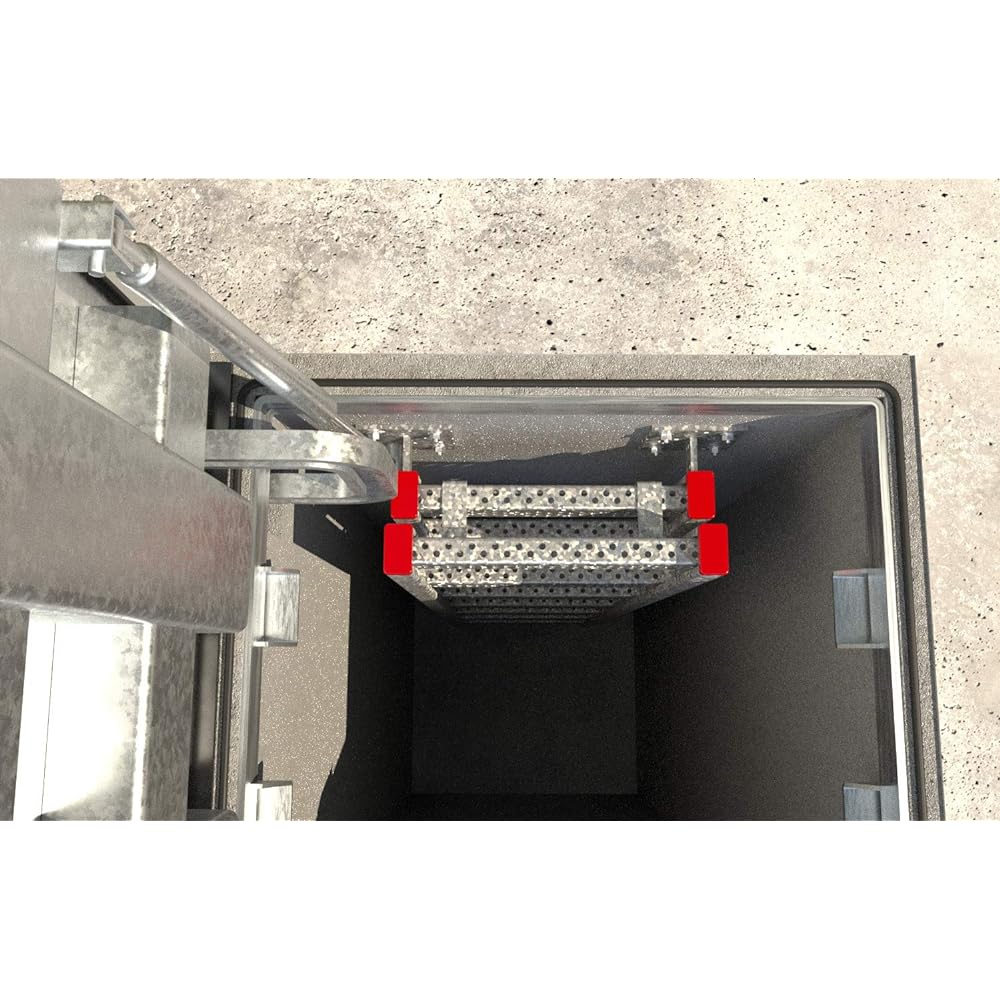

A wedge type anchor for ordinary concrete with excellent cost performance. Shallow embedment allows for shallow drill hole depths, reduces interference with reinforcing bars and enables faster construction. International certifications demonstrate maximum safety and best performance. For concrete and dense stone. Installation of various frames. Equipment work. Exterior construction of handrails, etc.
Brand: fischer
Product model number: 507555
Product size: 7.1 x 0.8 x 7.1 cm; 1.36 kg
Material: Stainless steel
>Quantity: 1
Battery included: No
Year: 2017
Product weight: 1.36 Kilograms
A wedge type anchor for ordinary concrete with excellent cost performance. Shallow embedment allows for shallow drill hole depths, reduces interference with reinforcing bars and enables faster construction. International certifications demonstrate maximum safety and best performance. For concrete and dense stone. Installation of various frames. Equipment work. Exterior construction of handrails, etc.
Brand: fischer
Product model number: 507555
Product size: 7.1 x 0.8 x 7.1 cm; 1.36 kg
Material: Stainless steel
>Quantity: 1
Battery included: No
Year: 2017
Product weight: 1.36 Kilograms
